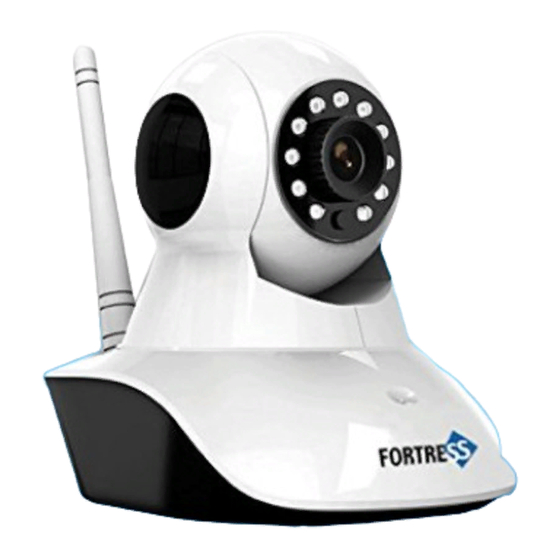

Summary of Contents for Fortress Technologies Eyesight
- Page 1 Eyesight HD WiFi Camera Version 2 - April 2018...
-
Page 2: Table Of Contents
Table of Contents Getting Started What’s in the box? Installing the mobile app Connecting to the camera for the first time MicroSD Storage card for recording (not included) Camera Features Viewing the live video feed Recording Modes (MicroSD card required) Downloading and viewing recorded video Technical Specifications Troubleshooting... - Page 3 Download the app!
-
Page 4: Getting Started
Getting Started Thank you for purchasing a new For- tress Eyesight HD WiFi Camera! In this user manual, we’ll help you get started with your camera, and answer any other questions you may have about using the camera and the fea- tures available! What’s in the box? -
Page 5: Installing The Mobile App
Installing the mobile app To download and install the free mobile app, go to the Apple App Store or the Google Play Store, and search for “Fortress Eyesight.” Alternatively, you can also visit our website FAQ pages directly, where we have direct links to the app: Download the app! https://www.fortresssecuritystore.com/... - Page 6 Once you’ve installed the mobile app, you can launch the app and create an account using the Email Register option. (At the time of this writing, the Phone Register option is still under development, and won’t work correctly.) Registering an email address Follow the screenshots below to register a new email address and password.
- Page 7 Registering an email address Continued... Enter your email, then enter a new password twice in a row After tapping “Register, ” your new account will be created. Once logged in, you’ll be taken to the Device List screen.
-
Page 8: Connecting To The Camera For The First Time
Connecting to the camera for the first time Tip: Check out the video on our website! https://www.fortresssecuritystore.com/videogallery/ connecting-eyesight-camera-wifi To connect your camera for the first time, we recommend using the “Smartlink” method. To add a camera using SmartLink, Makre sure the camera is plugged in tap on the + then select “SmartLink”... - Page 9 Connecting to the camera for the first time Continued... Enter your WiFi password. Wait before continuing! Wait here! After entering the WiFi password but before pressing “Next,” go to the camera and press and hold the “Reset” button on the bottom of the camera with a paperclip or a pin for 3-5 seconds. When that’s done, you’ll hear a sound effect from the camera like a blade swinging through the air, or a cash register opening.
- Page 10 The app and the camera are both Creating a password for the searching at the same time now. newly added camera Once the camera and the app have synced together, then you’ll be prompted to create a password for the camera. We recommend using a secure password that is at least 6 digits long.
-
Page 11: Microsd Storage Card For Recording (Not Included)
MicroSD storage card for recording (not included) The Fortress Eyesight Camera can work with a MicroSD storage card up to 64GB in size. At the time of this writing, Fortress Secu- rity Store does not currently offer MicroSD cards for purchase, but you can find them readily available at local and online retailers. -
Page 12: Camera Features
The following section will be a breakdown of the various features of the camera. After reading this section, you’ll be able to fully leverage and utilize the excellent features of your Fortress Eyesight Camera! • Viewing the live video feed •... -
Page 13: Viewing The Live Video Feed
Viewing the live video feed Tap here to view the live video feed of this camera. To view the live video feed, find the desired camera in the Device List, and then tap on the icon with the “Play” button on the left- hand side of the screen. - Page 14 The image in this example has been intentionally blurred. # of people viewing the camera Date and Time Swipe up, down, left, and right to move the camera! Video Quality Exit Live Feed Tap to Arm Save a live snapshot (Currently Disarmed) to your phone Mute Camera...
-
Page 15: Recording Modes (Microsd Card Required)
Recording Modes (MicroSD card required) Manual Recording Begin recording by toggling the “Record Switch” on. Alarm Recording Begin recording based on when the camera detects motion and alarms. Scheduled Recording Record based on a pre-defined schedule. The Recording Settings Menu On this screen, if you have “Manual Recording”... -
Page 16: Downloading And Viewing Recorded Video
Downloading and viewing recorded video After recording some video footage, you can view the recorded video in the app, on the camera’s “Playback” tab. The Playback Menu Videos files will be displayed here You can also remove the MicroSD card from the camera and then copy the video files onto another device, like your computer, for backup. -
Page 17: Technical Specifications
Technical Specifications • Power Supply Input: 110-240VAC, 50-60Hz • Power Supply Output: DC 5V 2A • 720p High-Definition camera • 360° lateral viewing angle • 90° vertical viewing angle • Automatic low-light vision mode • MicroSD storage card slot (64GB max.) •... -
Page 18: Troubleshooting
Troubleshooting For any technical difficulties that you may experience, we have a number of recommended and required network settings that you can check, as well as recommended troubleshooting steps that can resolve many potential issues. Here is a link to our FAQ page with the troubleshooting steps on our website: Top Common Issues Your network devices and/or your Fortress devices may need to be power cycled. - Page 19 www.FortressSecurityStore.com Contact Us! Written by Kip Coleman...
