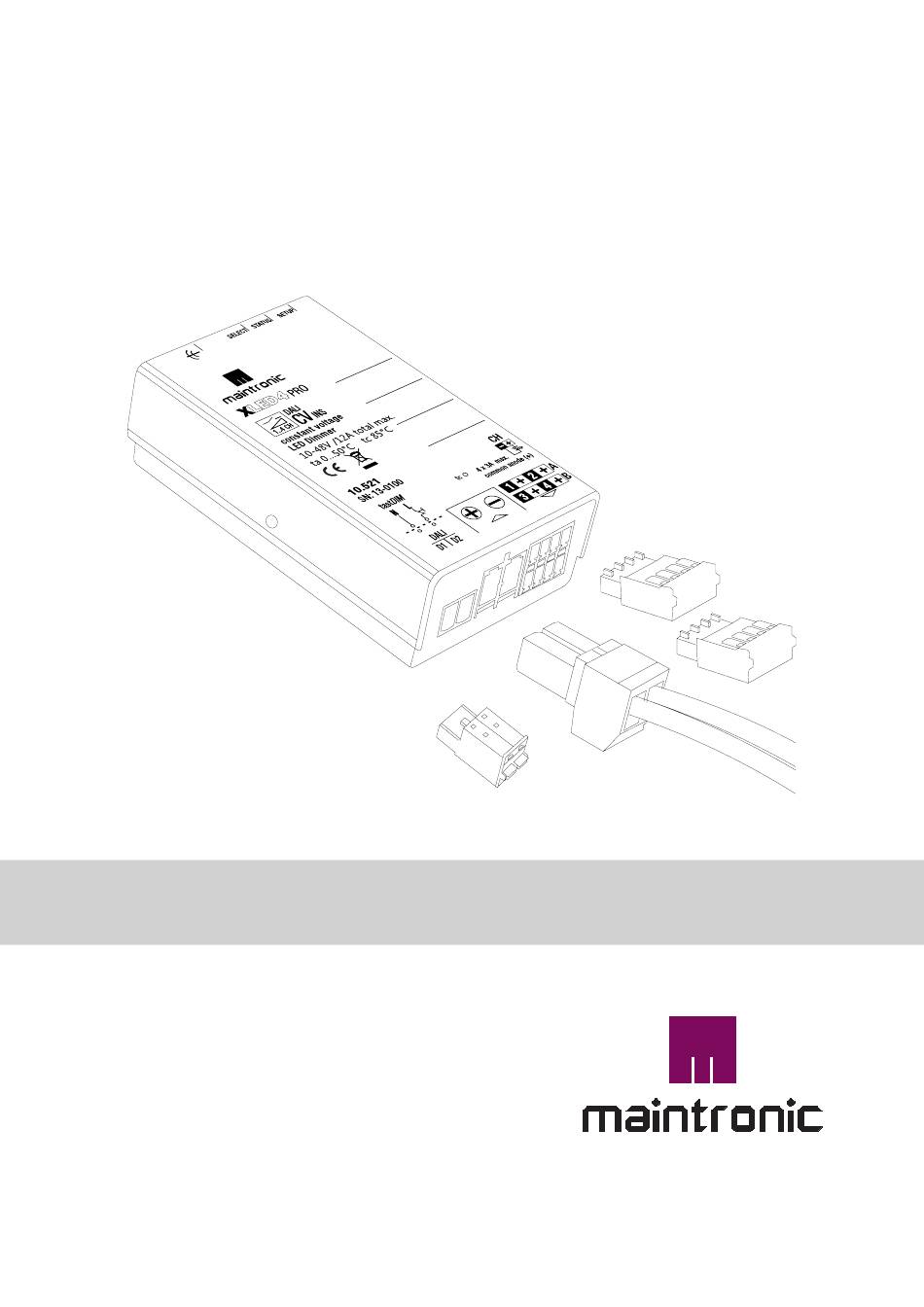

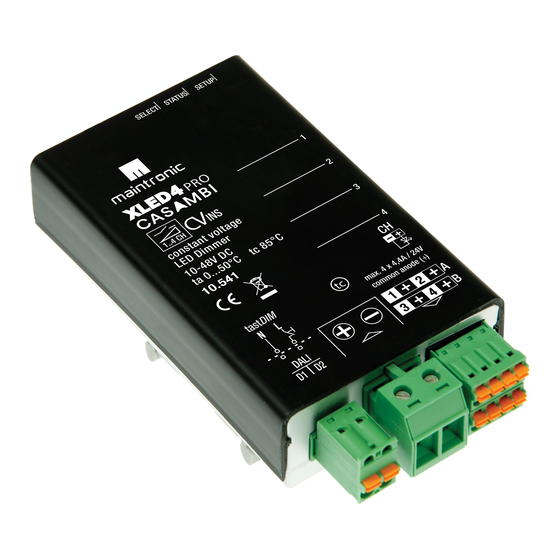

- Page 1 XLED4 CV Casambi 1-4 Casambi+DALI LED-Converter 10-48V Manual Valid from the following versions: (H=Hardware F=Firmware) XLED4 CV Casambi 10.541 - F1.7 XLED4_PRO_CV_Casambi_manual_EN Document Date: 30.07.2020...
-
Page 2: Safety Instructions
• does not appear to operate normally pliances separately from their household waste e. • has been dropped or has a broken housing g. at a local authority collection point or recycling center. For cleaning only use a dry, soft cloth, by no means liquids. www.maintronic.de... -
Page 3: Initial Operation
• 1-4 CH LED-Dimmer Constant Voltage maintronic product and the trust you have placed • Control with CASAMBI, DALI and PushButton in us. We, the team of maintronic, wish you a lot of • Tuneable white / RGB+W / 1...4 Channels fun with this product. -
Page 4: Select Button
4 it starts again with channel 1 Confirmation by STATUS LED flashing Reset factory settings press 10 sec. There is a reset of all parameters in the delivery state. A successful reset is signaled by the status LED. ! Reset within 30 minutes after POWER_ON. www.maintronic.de... - Page 5 Select the desired operating Change profile. mode (profile). Start the update ... On the menu item The desired profile is now after selecting the profile „Use in my network“. loaded. Select a suitable profile for your project on the following pages. www.maintronic.de...
- Page 6 Profile: 1 CH linked Channel 1+2+3+4 linked together 17,6 A power Profile view in the App A single brightness slider www.maintronic.de...
- Page 7 Profile: 2 CH linked Channel 1+2 linked together Channel 3+4 linked together 8,8 A power each channel Profile view in the App One brightness slider for each linked Channel www.maintronic.de...
- Page 8 Profile: 4 CH Standalone 4 individually controllable channels 4,4 A power each channel Profile view in the App One brightness slider for each channel www.maintronic.de...
- Page 9 Profil: TW-Tunable white Channel 1+2 linked for warmwhite (ww) Channel 3+4 linked for coldwhite (cw) 8,8 A power each linked channel Profile view in the App Mode Tuneable white color mixing www.maintronic.de...
- Page 10 Profile: RGB+W 4 Channel LED RGB+W Dimmer 4,4 A Power each channel Profile view in the App RGB+W mode Color mixing www.maintronic.de...
- Page 11 Color value remains the same, brightness is changed 1...1000 Color desaturates at brightness 100% PushButton Style maintronic - Special functions whitemode and ext. brightness are active. Casambi signals are passed through, behaving like a standard wireless pushbutton. Other Casambi devices can be controlled. PushButton Whitemode...
