- Page 1 GASGUARD CATALYTIC DETECTOR UNIT User Manual Version: 7, February 2019 User Manual Part #: 161297 Designed and manufactured in Australia by Ampcontrol Pty Ltd...
- Page 2 The note symbol highlights key information. Please share these notes with other operators. ENVIRO The enviro (environmental) symbol highlights areas which may have an impact on the surrounding fauna and/or flora. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 2 of 25...
- Page 3 AMPCONTROL PTY LTD. Disclaimer While every effort has been made to assure the accuracy and clarity of this document, AMPCONTROL PTY LTD assumes no liability resulting from any omissions in this document, or from misuse of the information obtained herein.
-
Page 4: Table Of Contents
7 SERVICE, MAINTENANCE & DISPOSAL ............22 7.1 Equipment Service ................... 22 7.2 Equipment Maintenance ................23 7.3 Disposal ....................23 8 SPECIFICATIONS ..................24 9 EQUIPMENT LIST ..................25 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 4 of 25... - Page 5 Table 4: Gas Density Relative to Air ................. 14 Table 5: Nominal Resistance Values for Typical Wire Sizes ........16 Table 6: Corrective Maintenance Checks ..............23 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 5 of 25...
- Page 6 The PCB inside the detector that amplifies the sensor cell signal into a usable 4- Amplifier PCB 20mA loop Methane NATA National Association of Testing Authorities, Australia Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 6 of 25...
-
Page 7: Safety And Other Warnings
As safety depends on the GasGuard detector functioning correctly it is highly recommended that all safety functions of the product be periodically tested to ensure correct operation. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 7 of 25... -
Page 8: Receiving And Storage
If there is evidence of physical damage, notify Ampcontrol immediately. Notify Ampcontrol immediately in the case of any discrepancies to the packing list. Keep a record of any claims and correspondence. Photographs are recommended. -
Page 9: Product Overview

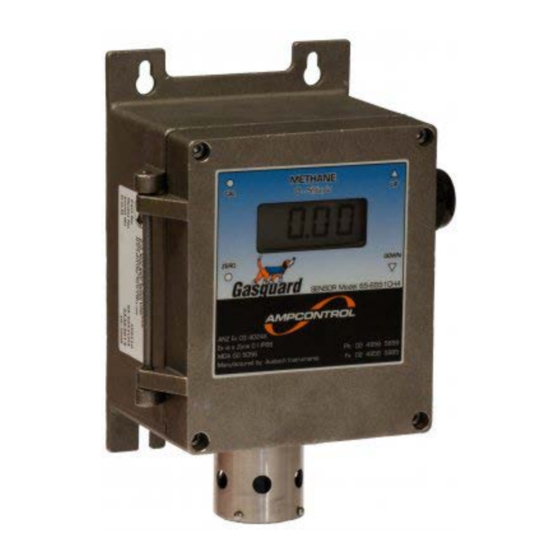

GSB093 Version 7 – FEB/19 3 PRODUCT OVERVIEW Ampcontrol’s GasGuard Methane Sensor / Transmitters are supplied complete with an amplifier and a Liquid Crystal Display. The Transmitter/Sensor assembly is an IEC Ex ia Group I certified assembly. The Certification is based on the unit being sealed to IP66 in a stainless steel enclosure and the appropriate checks being made on the Intrinsically Safe Parameters of the overall system the transmitter is connected into. -
Page 10: Methane Gas Sensor
Products such as aerosol sprays, polishes, waxes and lubricants with silicones and non-catalysed silicone rubbers such as “silastic”, phosphate esters, and hydraulic fluids – will all damage catalytic sensors. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 10 of 25... -
Page 11: Amplifier Pcb
3.2 Amplifier PCB The purpose of the Amplifier PCB is to convert the low-level electrical output of the sensor into a signal capable of driving various types of external indicator equipment such as the Ampcontrol GasGuard 4 Channel Controller. The Amplifier PCB requires a 12VDC operating voltage and transmits a signal of 4-20mA. At the lower end of the range, the 4mA signal level indicates a zero gas concentration. -
Page 12: Product Operation
There is no sensor plugged into the amplifier -999 Amplifier needs reconfiguration Error has occurred Calibration mode initiated (display blinks when in calibration mode) Calibration settings have been saved Power Up Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 12 of 25... -
Page 13: Installation
Modifications must not be made to any part of the GasGuard detector. As supplied, the unit is built to, and complies with the relevant standards. Modifications to its construction will render the unit non-compliant. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 13 of 25... -
Page 14: Installation Guidelines
Table 4: Gas Density Relative to Air Density Hydrogen Ammonia Lighter than Air Methane Carbon Monoxide Carbon Dioxide Nitric Oxide Oxygen Heavier than Air Hydrogen Sulphide Chlorine Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 14 of 25... -
Page 15: Mechanical Installation Information
The connection terminals for GasGuard detectors are located within the enclosure. In order connect the incoming cable to the unit the cable must feed through the side mounted cable gland. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 15 of 25... -
Page 16: Electrical Installation Information
Normal practice would be to isolate the cable screens at the Transmitter and connect the screens to earth adjacent to the Control units or power supply to the system. Remote sensor cable screens should be earthed at the transmitter. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 16 of 25... -
Page 17: Figure 5.2: Catalytic Sensor Unit Wiring Diagram
Ampcontrol Pty Ltd – ABN 28 000 915 542 GASGUARD CH DETECTOR USER MANUAL GSB093 Version 7 – FEB/19 5.5.3 Catalytic Sensor Unit Wiring Diagram Figure 5.2: Catalytic sensor unit wiring diagram Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 17 of 25... -
Page 18: Figure 5.3: Remote Catalytic Sensor Unit Wiring Diagram
Ampcontrol Pty Ltd – ABN 28 000 915 542 GASGUARD CH DETECTOR USER MANUAL GSB093 Version 7 – FEB/19 5.5.4 Remote Catalytic Sensor Unit Wiring Diagram Figure 5.3: Remote catalytic sensor unit wiring diagram Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 18 of 25... -
Page 19: Commissioning And Calibration
Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 19 of 25... -
Page 20: Zero Calibration
The display will cease to flash. 5. Shut off the calibration gas. If the Zero calibration is to be checked, wait for the sensor to stabilise before proceeding. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 20 of 25... -
Page 21: Response Time Testing
Start timing with a stopwatch or similar as soon as the calibration cup is seated correctly. 7. Stop timing when the concentration reading reaches the value calculated in Step 4. The time recorded is the t90 value. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 21 of 25... -
Page 22: Service, Maintenance & Disposal
• Verify all electrical connections are secure with no loose screw terminals or DIN rail terminals not fitted to rails etc. Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 22 of 25... -
Page 23: Equipment Maintenance
WARNING! All repairs must be carried out by Ampcontrol only. If a fault develops, return the unit to Ampcontrol for repair. It is essential that no attempt be made to repair any product in the GasGuard range as any attempt to dismantle or repair the unit can seriously compromise the safety of the unit and voids product warranty. -
Page 24: Specifications
Certifications ANZEx ANZEx 03.4024X – Ex ia s Zone 0 I IP66 IECEx IECEx TSA 06.0044X – Ex ia I IP66 MDR 086759 GD (Design Registration) Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 24 of 25... -
Page 25: Equipment List
Customised gas panels and systems are also available as well as sample draw panels. These can be designed specifically to your NOTE gas sensing needs. For more information call customer service on 1300 267 373 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 25 of 25...
