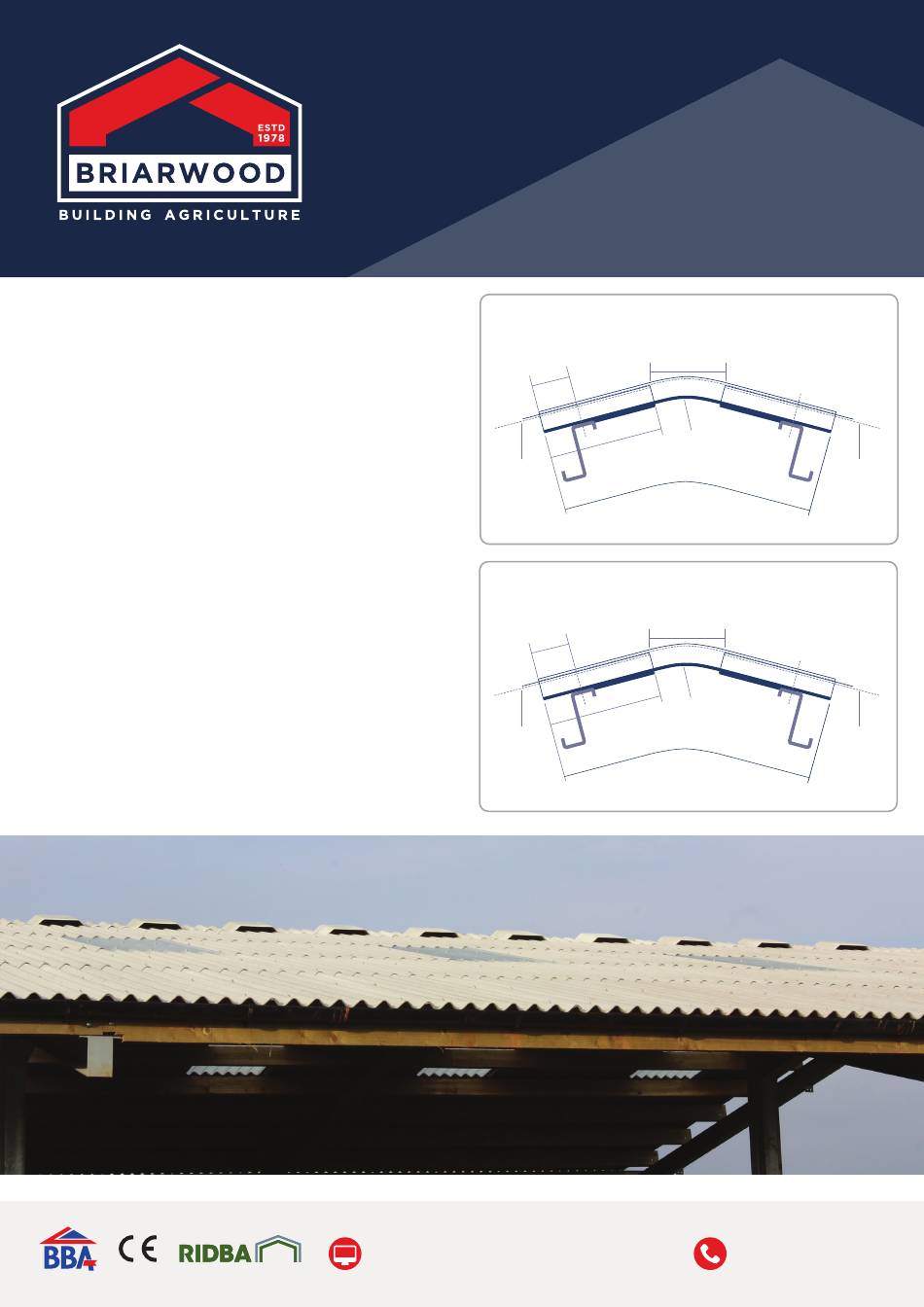

CLOSE FITTING / VENTILATED
RIDGES
The EUROSIX range of closed ridges and vents are
available in the following sizes:
Girths 750mm (12.5° and 15° only) or 900mm,
in pitches of 5° to 22.5° in 2.5° increments.
1800mm girth available from stock. Please contact
our technical department for more details.
Both slopes of the roof must be sheeted starting at
the same gable end and the corrugations must be
accurately aligned up and over both slopes of the
roof. It is vital that the ridge and the top sheets are
mitred. Fix the ridge in exactly the same way as the
sheets, and ensure the fasteners are a minimum of
100mm from the tail end of the ridge.
RIDGE INSTALLATION
GUIDE
Fig.1 Closed Ridge Fixings
100mm
EUROSIX
sheet
Fig.2 Ventilating Ridge Fixings
100mm
EUROSIX
sheet
www.briarwoodproducts.co.uk
300mm max
Standard 100mm
radius
300mm
750mm or 900mm girth to underside of sheet
300mm max
Standard 100mm
radius
300mm
750mm or 900mm girth to underside of sheet
01934 641 446
EUROSIX
sheet
EUROSIX
sheet
