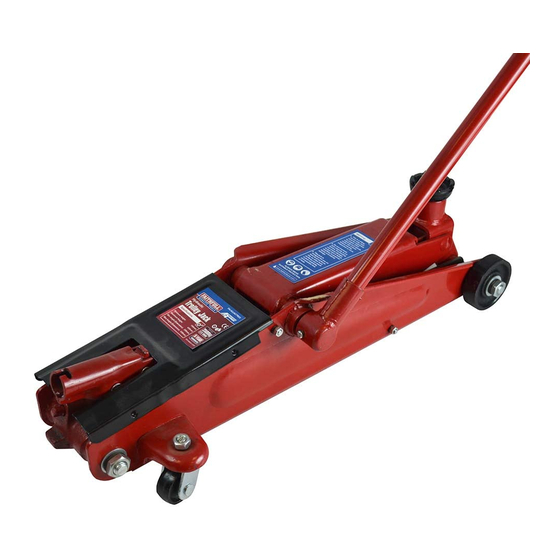

FAI AUJACTRO15
FAI AUJACTRO3
Hydraulic
Trolley Jack
1.5 / 2.5 Tonne
IMPORTANT
It is essential that you read the instructions contained in this manual before using the cable pullers
for the first time. Failure to follow these instructions could result in damage to the product, property
damage or personal injury. This manual should be stored safely for future reference.
Advertisement
Summary of Contents for Faithfull FAIAUJACTRO15
- Page 1 FAI AUJACTRO15 FAI AUJACTRO3 Hydraulic Trolley Jack 1.5 / 2.5 Tonne IMPORTANT It is essential that you read the instructions contained in this manual before using the cable pullers for the first time. Failure to follow these instructions could result in damage to the product, property damage or personal injury.
- Page 2 SPECIFICATIONS General Safety Instructions Important Safety Rules Familiarize yourself with these rules and the Always access risk factors application, limitations and potential hazards • Even when used as prescribed it is not possible to eliminate all residual risk factors. ALWAYS use with of using the jack.
- Page 3 SPECIFICATIONS Operation Instructions Specifications FAI AUJACTRO15 Fig.2 Lifting capacity: 1500kg Open release valve Minimum height: 128mm anti-clockwise Maximum height: 300mm FAI AUJACTRO3 Lifting capacity: 2500kg Close release valve Minimum height: 150mm clockwise Maximum height: 430mm Minimum extended height: 250mm 1. BEFORE USING JACK: Open the release valve (2) by turning counterclockwise just Maximum extended height: 530mm...
- Page 4 Problems & Solutions SOLUTIONS Release valve may not be tightly closed. Jack may be low on oil. Remove filler plug and fill reservoir with clean hydraulic jack Reservoir may be overfilled. Remove filler plug and drain excess oil. Jack may be air-bound. Open the release valve and pump the handle several times.
