Toro 114-9273 Installation Instructions Manual

230V Starter Kit
For Briggs & Stratton-powered Snowthrowers
Model No. 114-9273
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
1
Installing the Starter Kit
Parts needed for this procedure:
1 Electric starter
2 Torx head bolts
1 7 mm hex-head bolt
1 Starter cover
Procedure

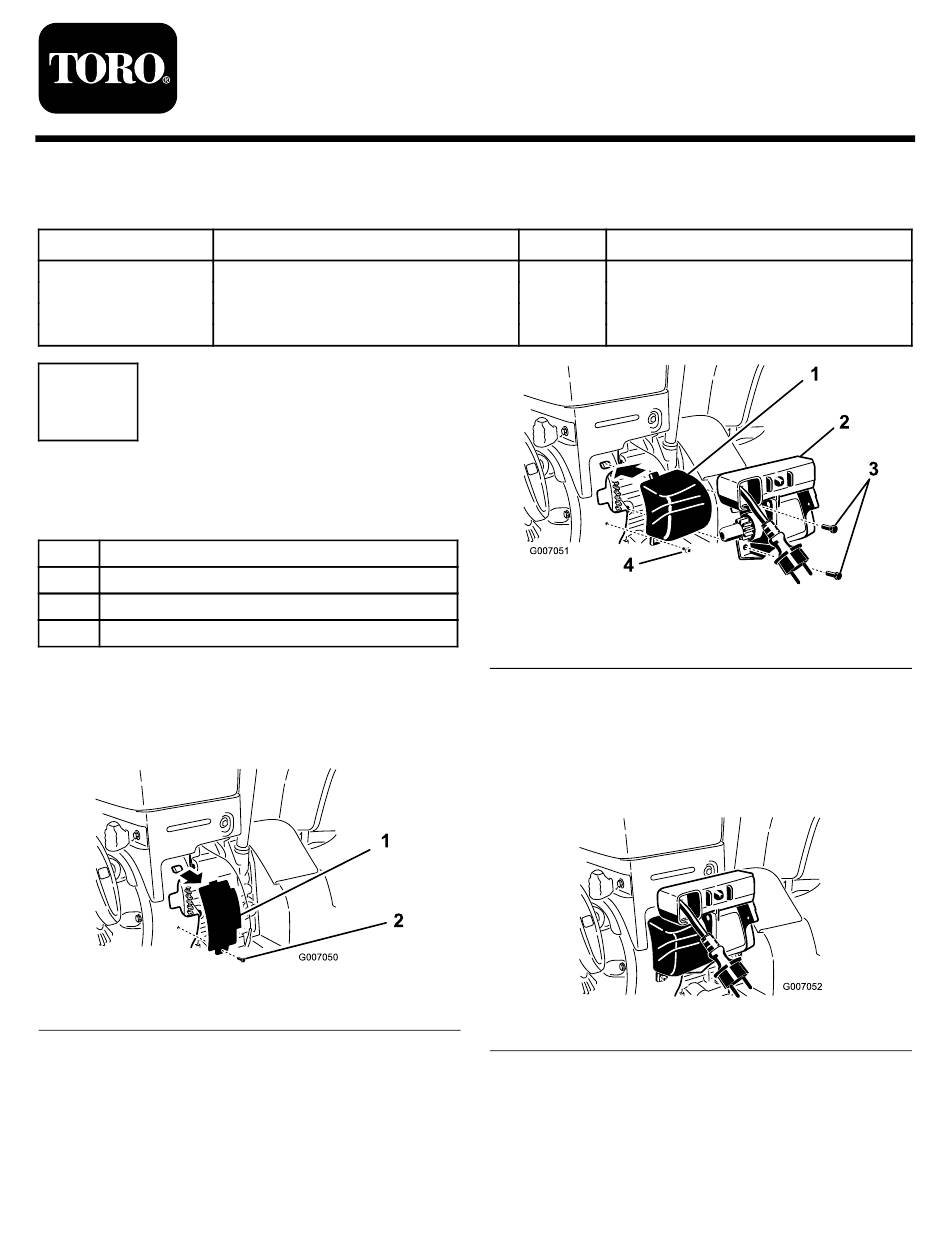

1. Remove the hex-head bolt that holds the cover in
place (Figure 1).
Figure 1
1. Cover
2. Remove and discard the cover.
3. Install the electric starter securely as shown (Figure 2)
with 2 torx head bolts from the loose parts bag.
© 2007—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Description
Electric starter
Torx head bolts
7 mm hex-head bolt
Starter cover
2. Hex-head bolt
Register at www.Toro.com.
Qty.
1
2
Install the starter kit.
1
1
1. Starter cover
2. Starter
Note: Use a torx 40 wrench or a 13 mm socket
wrench to install the torx head bolts.
4. Install the starter cover by inserting the tab in the slot
and securing it at the bottom with a 7 mm hex head
bolt from the loose parts bag (Figure 2 and Figure 3).
Form No. 3358-901 Rev A
Installation Instructions
Use
Figure 2
3. Torx head bolts
4. 7 mm hex-head bolt
Figure 3
