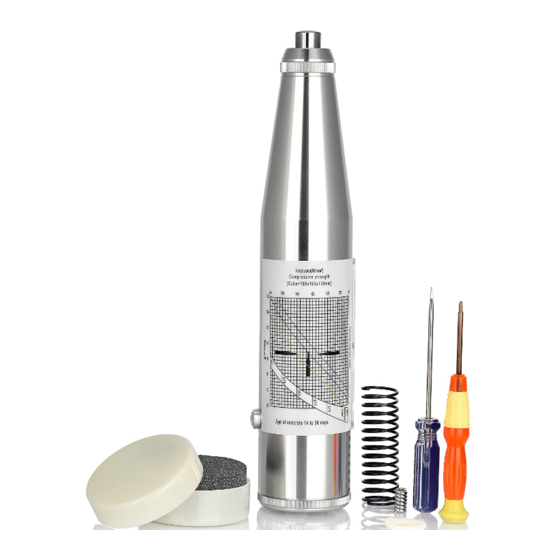

Page 1 Concrete Impact Hammer ADI709-01 USER GUIDE...
Page 2 PRO QUALITY FOR THE PROFESSIONAL. AdirPro is known for its quality products in the construction industry, all manufactured to the highest standards. We strive to help you complete your project in the most reliable, safe, and cost-effective manner. We deliver everything with accuracy you can count on so your team can count on you.
Page 3: Table Of Contents
Table of Contents Important Safety information Measuring 18 Maintenance 24 Data 25 Limited Warranty 27 Disclaimer 28 Notes...
Page 4: Important Safety Information
Important Safety Information GENERAL INFORMATION Basic information The concrete test hammer is designed according to state-of- the-art technology and recognized safety regulations. Please read through these operating instructions carefully upon initial startup. They contain important information about safety, use and maintenance of the concrete test hammer. Designated Use The concrete test hammer is a mechanical device used for performing rapid, nondestructive quality testing on materials in...
Page 5 Important Safety Information SAFETY REGULATIONS General Information • Perform the prescribed maintenance work on schedule. • Carry out a performance check once the maintenance work has been completed. • Handle and dispose of lubricants and cleaning agents responsibly. Unauthorized Operators The concrete test hammer is not allowed to be operated by children and anyone under the influence of alcohol, drugs or pharmaceutical prescriptions.
Page 6: Measuring
• Age of the concrete • Size and shape of the comparison sample (cube, cylinder) Models N and NR can be used for testing: • Concrete items 100 mm or more in thickness • Concrete with a maximum particle size ≤ 32mm Models L and LR can be used for testing: •...
Page 7 - Age of the concrete Preparing the test surface - Size and shape of the comparison sample (cube, cylinder) Models N and NR can be used for testing: - Concrete items 100 mm or more in thickness - Concrete with a maximum particle size...
Page 8 Models L and LR can be used for testing: after every impact. Then read off and note down the rebo • If you are using models N and L, press the pushbutton (6) to pointer (4) on the scale (19).
Page 9 (see Figure 5 to Figure 10, on pages 8-13)Then, using the average rebound value Rm and the selected conversion curve, read off the average compressive strength. IMPORTANT: Note the impact direction! The average compressive strength is subject to a dispersion (± 4.5 N/mm² to ±8 N/mm²).
Page 10 Measuring CONVERSION CURVES Derivation of the conversion Curves The conversion curves (Figure 5, to Figure 10) for the concrete test hammer are based on measurements taken on very many sample cubes. The rebound values R of the sample cubes were measured using the concrete test hammer. Then the compressive strength was ascertained on a pressure testing machine.
Page 11 Measuring Conversion Curves, Concrete Test Hammer Model N/NR Concrete pressure resistance of a cylinder after 14 – 56 days (Figure 5) Model N/NR: Conversion curves based on the average compressive strength of a cylinder and the rebound value of R .m: Average pressure resistance of a cylinder (probable...
Page 12 Measuring Conversion Curves, Concrete Test Hammer Model L/LR Concrete pressure resistance of a cylinder after 14 – 56 days (Figure 6) Model L/LR: Conversion based on the average pressure resistance of a cylinder and the rebound value R Limits of Dispersion : The max.
Page 13 Measuring Conversion Curves, Concrete Test Hammer Model N/NR Concrete pressure resistance of a cube after 14 – 56 days (Figure 7) Model N/NR: Conversion curves based on the average compressive strength of a cube and the rebound value of R .m: Average pressure resistance of a cube (probable...
Page 14 Measuring Conversion Curves, Concrete Test Hammer Model L/LR Concrete pressure resistance of a cube after 14 – 56 days (Figure 8) Model L/LR: Conversion based on the average com- pressive strength of a cube and the rebound value R Limits of Dispersion : The max.
Page 15 Measuring Conversion Curves, Concrete Test Hammer Model N/NR Concrete pressure resistance of a cylinder after 14 – 56 days (Figure 9) Model N/NR: Conversion curves based on the average compressive strength of a cylinder and the rebound value of R .m: Average pressure resistance of a cylinder (probable...
Page 16 Measuring Conversion Curves, Concrete Test Hammer Model L/LR Concrete pressure resistance of a cylinder after 14 – 56 days (Figure 10) Model L/LR: Conversion based on the average compressive strength of a cylinder and the rebound value R Limits of Dispersion : The max.
Page 17 Measuring FACTORS AFFECTING THE VALUES Direction of impact The measured rebound value R is dependent on the impact direction. Shape coefficient The compressive strength measured in a pressure Testing ma- chine depends on the shape and size of the sample. IMPORTANT: The samples prescribed for use in the Particular country must be taken into account when converting the re- bound value R into Compressive strength.
Page 18 Time coeff. Z m n.c m n.c : Average rebound value R, measured on carbonate- m carb. impregnated concrete surface. : Average rebound value R, measured on non- m n.c.
Page 19 The concrete must be dried before the test. • Very high values for compressive strength (> 70 N/mm²) can be achieved by adding pulverized fuel ash or silica fume. However, these strengths cannot reliably be ascertained using...
Page 20 Measuring Conversion Curves for Special Cases The recommended course in special cases is to prepare a separate conversion curve. • Clamp the sample in a pressure testing machine and apply a preload of about 40kN vertically to the direction in which the concrete had been poured in.
Page 21: Maintenance
(Figure 11) Performance check of the concrete test Hammer (model N/L shown) IMPORTANT: Proceed as described in “Maintenance Procedure” on page 13 if the values are not within the tolerance range specified on the testing anvil.
Page 22 Maintenance Fitting a New Recoding Paper Roll The following instructions only apply to models NR and LR! (Figure 12) Fitting a new recording paper roll • Turn knurled screw (33) to rewind the recording paper from reel (31) to reel (32) •...
Page 23 Maintenance Long-Term Maintenance We recommend that the concrete test hammer should be checked for wear after 2 years at most and be cleaned. Do this as described below. IMPORTANT: The concrete test hammer can either be sent to a service center authorized by the vendor or it can be maintained by the operator according to the following description.
Page 24 Maintenance • Press the pawl (13) and pull the system vertically up and out of the housing (3). • Lightly strike the impact plunger (1) with the hammer mass (14) to release the impact plunger (1) from the hammer guide bar (7).
Page 25 Maintenance • Slide the hammer guide bar (7) into the hole in the impact plunger (1) and push it further in until noticeable resistance is encountered. Prior to and during installation of the system in the housing (3), make sure that the hammer (14) does not get held by the pawl (13).
Page 26 Maintenance Concrete Test Hammer Model ND/LD Key: Impact plunger Test surface Housing Rider with guide rod Not used Push button, complete Hammer guide bar Guide disk (for Model L and LR red) 10. Two-part ring 11. Rear cover (for model L and LR red) 12.
Page 27: Data
Paper (Pack of 5 rolls) Form of Delivery Concrete Model N Model NR Model L Model LR test hammer Impact 2,207 Nm 0,735 Nm Energy Measuring 10 to 70 N/mm² 10 to 70 N/mm² Range resistance to pressure resistance to pressure...
Page 28: Limited Warranty
Limited Warranty 1. AdirCorp (the company) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of one (1) year from the date of purchase. 2. These warranties are not assignable or transferable to any other person.
Page 29 Limited Warranty 8. This warranty is not an insurance policy. The Company is not responsi- ble for any manner of damage to or theft of the Purchaser’s product or its contents. 9. We recommend that the product being returned is accompanied by the sales receipt with all relevant information regarding the purchase of the item and is returned to the Company within ten (10) days of the claim date of purchase to validate this warranty.
Page 30: Disclaimer
Disclaimer By purchasing products from AdirCorp, user agrees as follows: TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE PRODUCTS AND INFORMATION ON THIS SITE IS PROVIDED “AS IS” AND WITH ALL FAULTS AND ADIRCORP. MAKES NO PROMISES, REPRESENTATIONS, OR WARRANTIES, EITHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, WITH RESPECT TO THE PRODUCTS AND INFORMATION, INCLUDING ITS CONDITION, ITS CONFORMITY TO ANY REPRESENTATION OR DESCRIPTION, OR THE EXISTENCE OF ANY LATENT...
Page 31: Notes
Notes...
