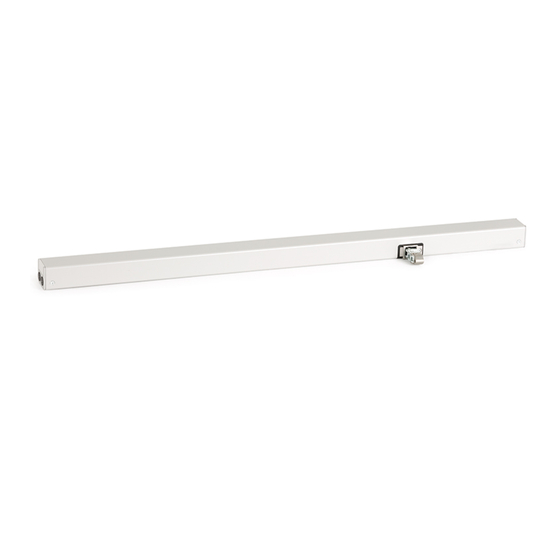

Summary of Contents for Dyer D+H CDC-0252-5-ACB Series
- Page 1 CDC-0252-5-ACB instructions Please order bracket sets separately...
- Page 2 WARNING Intended use Read all safety warnings, instructions, illustrations - Chain drive for electric opening and closing of and specifications provided with this product. windows and flaps in the facade and roof area Failure to follow all instructions listed below may - Operating voltage 230 V AC result in electric shock, fire and/or serious injury.
-
Page 3: Technical Data
Technical Data Type CDC-0252-0350-5-ACB CDC-0252-0500-5-ACB CDC-0252-0600-5-ACB CDC-0252-0800-5-ACB Power supply 230 V AC, +10 % / -15 %, 50 Hz Nominal force 250 N** Input power 33 W / 45 VA (2x Set: 64 W / 90 VA) Nominal stroke length* 350 mm ±... -
Page 4: Mounting Information
Mounting information Functional description - The drive set is fully configured ex factory.The ACB bus interface drives must be reconfigured using SCS in the ACB is used for secure communication between the event of changes to the ex-factory configuration drive and compatible D+H control systems. It (e.g. -
Page 5: Maintenance And Cleaning
Maintenance and cleaning Guarantee Maintenance work is only allowed when the device is in You will get 2 years guarantee for all D+H products a de-energized condition! Inspection and maintenance from date of verified handing over of the system up to has to be carried out according to D+H maintenance maximal 3 years after date of delivery, when notes. - Page 6 Connection CDC-0252-5-ACB Optional signalling cable 1 drive Mot. a / +24V (WH) Mot. b / GND (BN) ACB.a (OG) ACB.b (GY) BSY+.a (YE) Master 1 BSY+.b (GN) Junction box Junction box 230 V AC Do not reverse L+N! Connect PE! 50 Hz SHEV- fast running (GN)
- Page 7 Connection CDC-0252-5-ACB CDC-0252-1-ACB-ON 2 drives looped through Mot. a / +24V (WH) Mot. b / GND (BN) ACB.a (OG) ACB.b (GY) BSY+.a (YE) Master 2 Slave 1 BSY+.b (GN) Junction box 230 V AC Do not reverse L+N! Connect PE! 50 Hz SHEV- fast running (GN)
- Page 8 OG (ACB.a) YE (BSY+.a) BN (GND / Mot. b) GN (BSY+.b) WH (+24V / Mot. a) (GN) green (YE) yellow Dyer Environmental Controls Ltd (BU) blue Unit 10 Lawnhurst Trading Estate, (BN) brown Cheadle Heath, Stockport SK3 0SD (BK) black...
