Summary of Contents for South S1

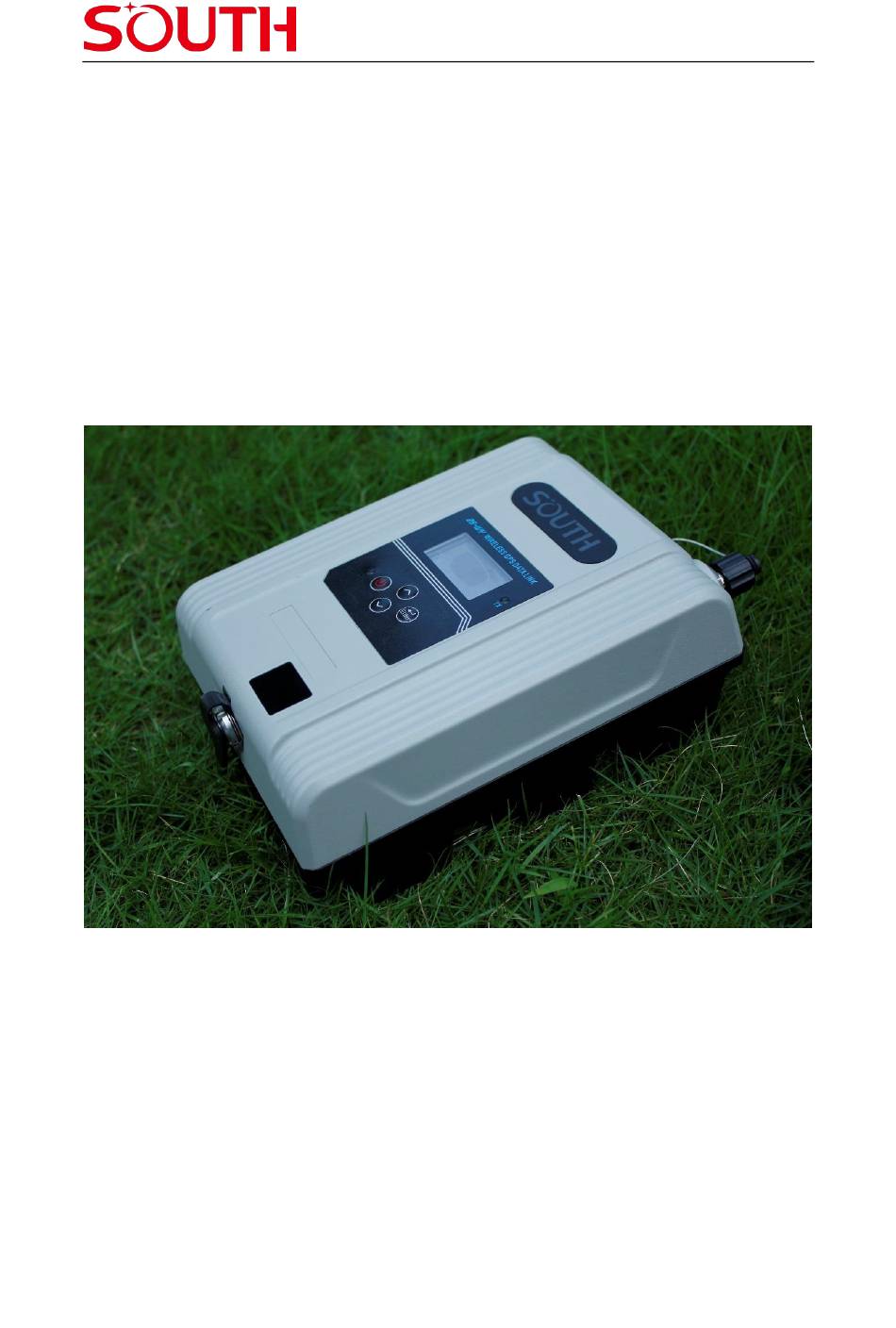

- Page 1 SOUTH S1 SOUTH S1 external UHF radio Technician Manual (2020-July-17) Copyright © SOUTH SURVEYING & MAPPING TECHNOLOGY CO., LTD. *All Rights Reserved...
-
Page 2: Table Of Contents
SOUTH S1 Content 1 Introduction ............................ 1 2 Hardware ............................1 3 Basic operation ..........................2 3.1 Buttons ..........................2 3.2 Display ..........................2 3.3 Operation ..........................3 3.3.1 Channel (CH) ......................3 3.3.2 Frequency ......................... 3 3.3.3 Power mode ......................4 3.3.4 Air (Air baudrate) ..................... -
Page 3: Introduction
SOUTH S1 1 Introduction ⚫ Supports SOUTH/Trimble protocol, 410~470MHz, compatible with S82, S82 and Galaxy series(G1, G1plus, G6). ⚫ Air baud rate 9600/19200bps, GMSK modulation, baud rate 9600/19200/38400bps. ⚫ LED display to show radio information, you can change radio frequency and protocol via the radio buttons directly. -
Page 4: Basic Operation
SOUTH S1 3 Basic operation 3.1 Buttons Display TX indicator Power indicator Enter Down Power ⚫ Power button: Press the Power button for 3 seconds to power on the radio, press the power button 1 second to turn off the radio. -
Page 5: Operation
SOUTH S1 Sleep mode: if no operation on the radio buttons for 10 munites, the display will shut down to save power, the power indicator light will still on, TX indicator light will continue blink. 3.3 Operation Press to select the parameter you want to modify, press... -
Page 6: Power Mode
3.3.5 Protocol Press to protocol setting, press to start the setting, press to choose protocol SOUTH / Trimble, press to confirm and exit the setting. 3.3.6 Serial port baudrate Press to serial port baudrate setting, press to start the setting, press choose serial port baudrate 9.6/19.2/38.4KHz, press... -
Page 7: Reset
SOUTH S1 3.3.9 reset Press to reset setting, press to confirm reset. 4 Accessories ⚫ UHF TX antenna: ⚫ Cable line... -
Page 8: Specification
SOUTH S1 5 Specification protocol SOUTH/TRIMBLE Power 10W, 25W Frequency 410MHz~470MHz Interval 12.5KHz/25KHz ≤0.25μV(12dB SINAD) Rx sensitivity Air baud rate 9600/19200/38400 Port baud rate 9600/19200/38400 Channels Interface Display 1.54 inch LCD Buttons 4 buttons Indicator 2 indicator light Communication Bluetooth 4.0...
