Summary of Contents for Franke FS Series

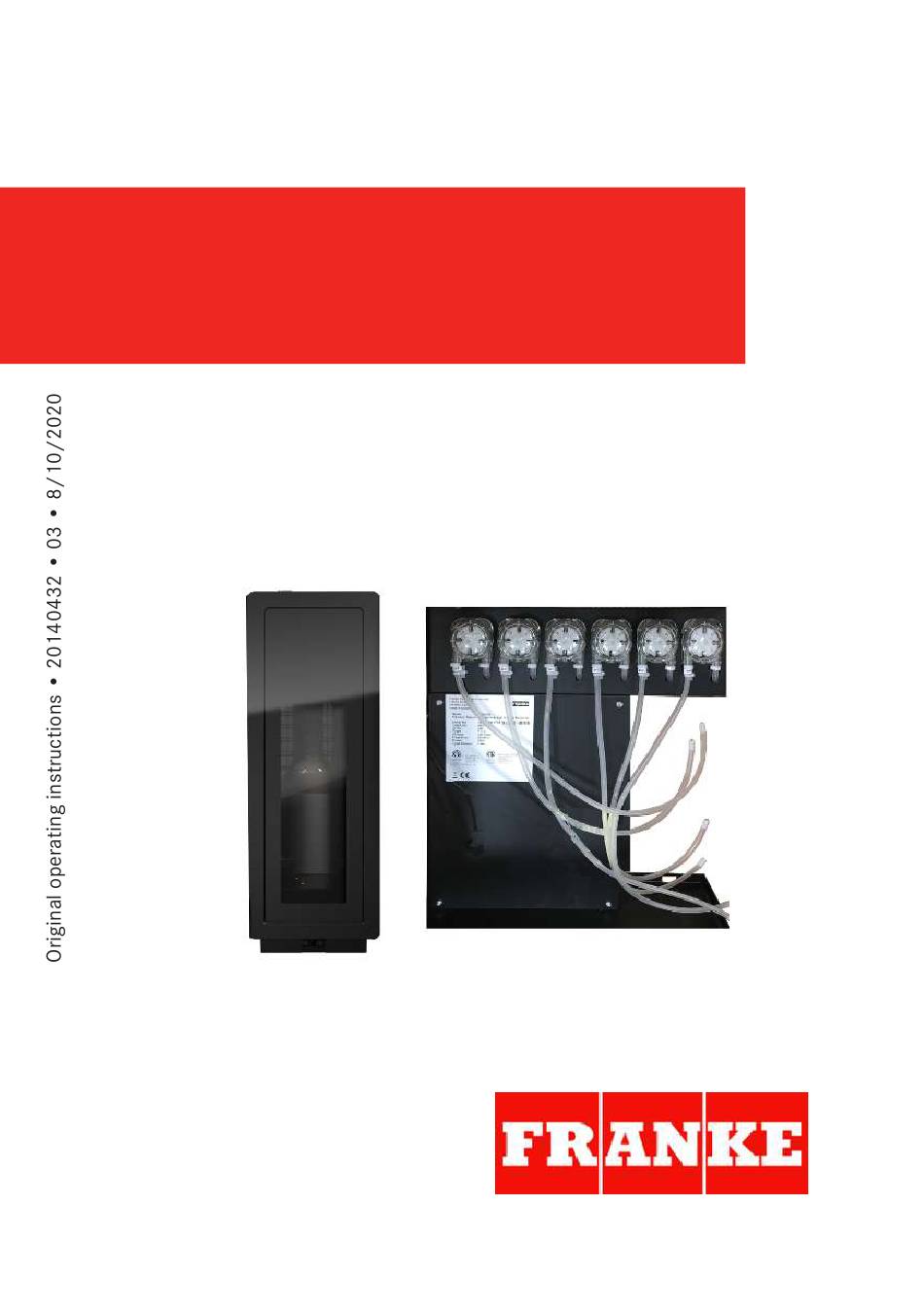

- Page 1 USER MANUAL FS/FSU FCS4055...
- Page 2 Read the user manual before working on the equipment. Keep the manual with the equipment and pass the manual on to the next user if the equipment is sold or transferred to a third party.
-
Page 3: Table Of Contents
Franke Kaffeemaschinen AG Table of contents TABLE OF CONTENTS For your safety .................... 4 Instructions .................... 6 Installation .................... 6 Intended use .................... 6 Non-authorized use .................. 6 Function of the Flavor Station .............. 7 Operation and maintenance................. 7 Malfunctions .................... 8 Transport, storage, decommissioning............ -
Page 4: For Your Safety
1 | For your safety Franke Kaffeemaschinen AG FOR YOUR SAFETY WARNING Risk of fatal injury from electrocution Damaged power cords, pipes or push-on fittings can lead to electrocution. a) Do not connect any damaged power cords, pipes or push-on fittings to the power grid. - Page 5 Place the device only on a level, stable surface. Do you have any questions that are not addressed in these instructions? Please do not hesitate to contact your local customer service partner, Franke Customer Service, or Franke Kaffeemaschinen AG in Aarburg.
-
Page 6: Instructions
– The Flavor Station is intended exclusively for operation in interior rooms. – The Flavor Station is intended exclusively for operation with a Franke cof- fee machine. – Please also observe the Declaration of Conformity delivered with the de- vice. -
Page 7: Function Of The Flavor Station
Franke Kaffeemaschinen AG Instructions | 2 – Children under the age of 8 years are not permitted to use the device. – Children or persons who are challenged with respect to physical, sensory or mental abilities must not use the device except under supervision, nor should they play with the device. -
Page 8: Malfunctions
2 | Instructions Franke Kaffeemaschinen AG Even though the interior chamber of the Flavor Station has no direct contact with the beverage, it should be kept clean at all times. Use water with a mild cleaner to clean the machine. Rub the Flavor Station with a damp cloth and leave the interior chamber to dry. -
Page 9: Technical Data - Fs/Fsu
Franke Kaffeemaschinen AG Technical data - FS/FSU | 3 TECHNICAL DATA - FS/FSU Device type FCS4055 Capacity Up to 6 varieties of syrup Up to 3 varieties of syrup for the FS30 Bottle height < 330 mm Ambient conditions Humidity: max. 80 % Ambient temperature: 10–32 °C... - Page 10 3 | Technical data - FS/FSU Franke Kaffeemaschinen AG Electrical connection data Type Country FCS4055 CH, EU, Voltage 100–240 V GB, USA, Frequency 50–60 Hz CAN, JP, Power rating 45 W CN, BR Current consumption < 0.4 A Fuse 10 A Connection 1L N PE...
- Page 11 Franke Kaffeemaschinen AG Technical data - FS/FSU | 3 Example: If you use a bottle with a diameter of 85 mm, then you can combine this bottle with up to five others measuring 75 mm in diameter. User manual FS/FSU...
- Page 12 Franke Kaffeemaschinen AG Franke-Str. 9 CH-4663 Aarburg Switzerland Hotline-Phone: +41 62 787 37 37 Fax: +41 62 787 97 37 Internet www.franke.com...
