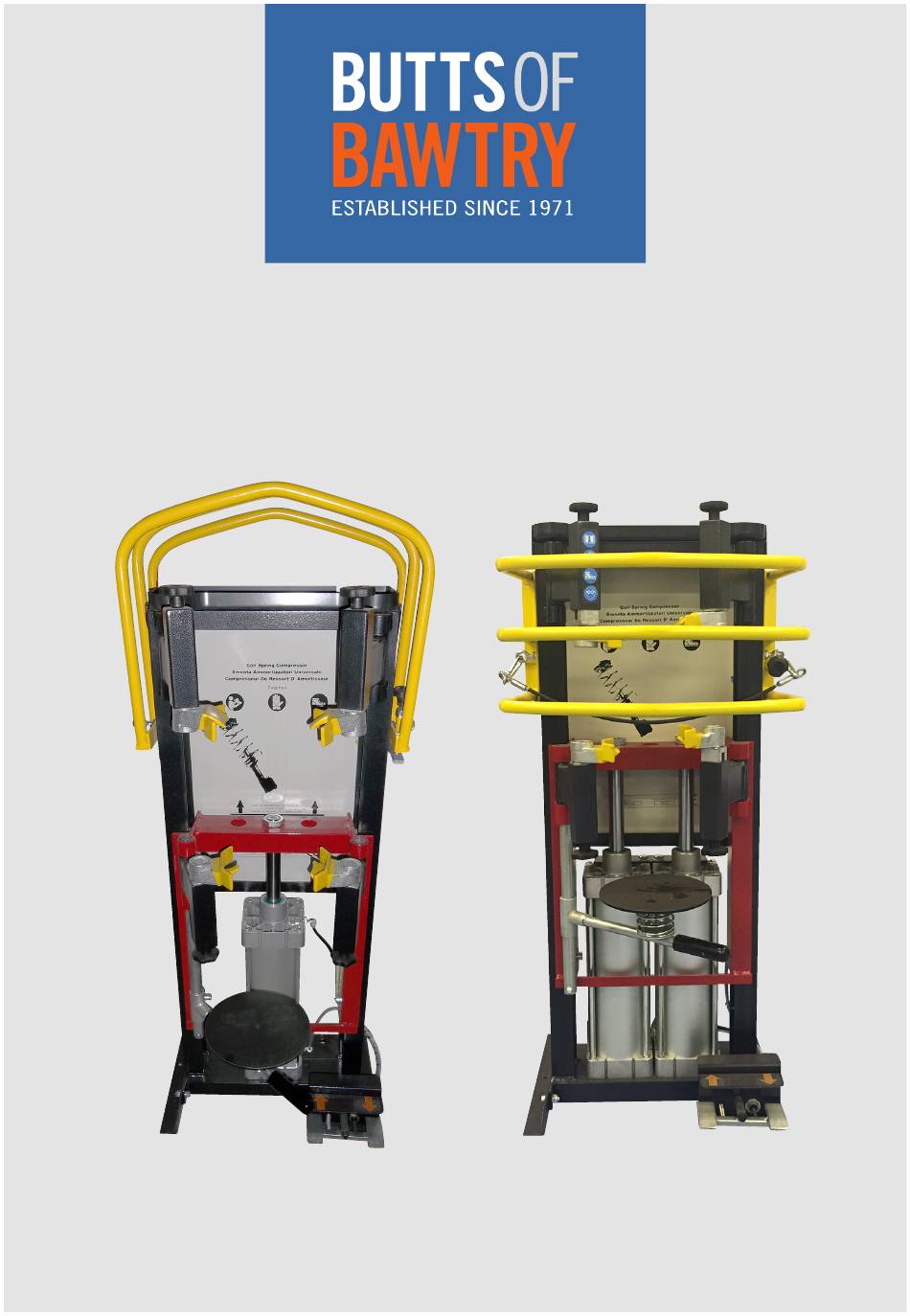

- Page 1 Air Operated Spring Compressor 9903 9905 Please read and fully understand the instructions in this manual before operation. Keep this manual safe for future reference.
-
Page 2: Table Of Contents
Contents Page No. Description Safety Symbols Used Throughout This Manual Safety Instructions Contents & Accessories Technical Specifications Guarantee Getting to Know Your Spring compressor Assembly Instructions 10/11/12 Operating Instructions Maintenance Exploded Drawing Parts List... -
Page 3: Safety Symbols Used Throughout This Manual
Safety symbols used throughout this manual Danger/Caution: Indicates risk of personal injury and/or the possibility of damage. Note: Supplementary Information. Safety Instructions IMPORTANT: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the spring compressor. KNOW YOUR SPRING COMPRESSOR: When using your spring compressor, basic safety precautions should always... - Page 4 Safety Instructions DANGER! Check that the spring manual, may result in personal injury and/ compressor is in sound condition and or property damage. good workingorder before each use; Take • Always ensure that the clamps are immediate action to repair or replace correctly supporting the spring;...
-
Page 5: Contents & Accessories
Foot Bracket x 1 & Foot Bracket inc. Foot Pedal x 1 n Cap head bolts and nuts (fitted to frame) n Strut Support plate inc. fixings n Instruction Manual Technical Specifications Part No. 9903 9905 Air Inlet Pressure 5-10 bar 5-10 bar Max. Force @ 10 bar... -
Page 6: Guarantee
Guarantee The 9905 spring compressor is covered by a 12 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the Spring compressor outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges including, but not limited to parts, labour and carriage costs. -
Page 7: Getting To Know Your Spring Compressor
Getting To Know Your Spring Compressor 1. Ram/s Upper Clamp Adjuster 2. Foot Bracket 10. Storage Tray 3. Strut Support Adjuster 11. Safety Lock Lever 4. Strut Support 12. Air Inlet 5. Lower Clamp Adjuster 13. Compression Start Point 6. Lower Clamps 13. -
Page 8: Assembly Instructions
Assembly Instructions FITTING THE FEET BRACKETS n Place the spring compressor in a well lit area on a firm level surface. n Remove the cap head bolts and nuts from the bottom of the frame (See Fig.1). n Line up the holes on the feet brackets with the holes on the frame. n Secure the feet brackets in place by refitting and fully tightening the cap head bolts and nuts (Fig. - Page 9 Assembly Instructions CONNECTING THE AIR PIPES n The air control pipes need to be connected to the rear of the foot control pedal in their correct position (Fig.5 & Fig.6). n Push each pipe firmly into the relevant fitting. Yellow Pipe Yellow Pipe Black Pipe Black Pipe...
-
Page 10: Operating Instructions
Operating Instructions OPERATING THE SAFETY CAGE n With the lock lever not engaged, the safety cage can be lifted to the upper position (Fig,10) when not in operation, and pulled down and locked during operation(Fig.11) n The air supply will be cut and the spring compressor will not operate unless the safety lock lever is engaged (Fig.12);... - Page 11 Operating Instructions Fig. 14 Fig. 15 Compression Starting Position Resting Position FITTING A SPRING n Set the spring compressor to the starting level as shown. n Lift the safety cage above the spring compressor. n Fit the spring over the lower clamps (Fig.16 & Fig.17). Fig.
- Page 12 Operating Instructions Fig. 22 Fig. 20 Fig. 21 Fig. 23 COMPRESSING A SPRING Note: Ensure an adequate air supply is connected to the spring compressor. n To compress the spring simply press the ‘UP’ foot pedal and the spring will start to be compressed.
-
Page 13: Maintenance
Maintenance n Generally keep the spring compressor clean. n Check the ram piston for signs of corrosion, and clean as necessary - Do not use a harsh abrasive such as sand paper. n Periodically check the frame to make sure all bolts are tight and inspect for cracked welds, bent, loose, or missing parts. -
Page 14: Exploded Drawing
Exploded drawing... -
Page 15: Parts List
Parts List Ref. No. Description Part. No. Y3310 Safety Lock (Micro-switch only) Y3410 Frame Y4011 Foot Control Pedal Assembly Y4100 Top Tray / Tool Tray Y4100 Safety Cage A9203 Lock Lever (Complete) A3410 Strut Support Spring Y4310 Strut Support Pad Y4320 Strut Support (adjuster &... - Page 16 JHM Butt & Co Ltd Station Yard, Station Road, Bawtry, Doncaster, South Yorkshire DN10 6QD Tel: 01302 710868 Email:info@buttsofbawtry.com www.buttsofbawtry.com...
