64179008APL1-5A
Total Access 1000 Data Access Terminal
Installation and Maintenance
Trademarks: Any brand names and product names included in this document are
trademarks, registered trademarks, or trade names of their respective holders.
Section 64179008APL1-5A
CLEI Code: VAM2KLOF_ _

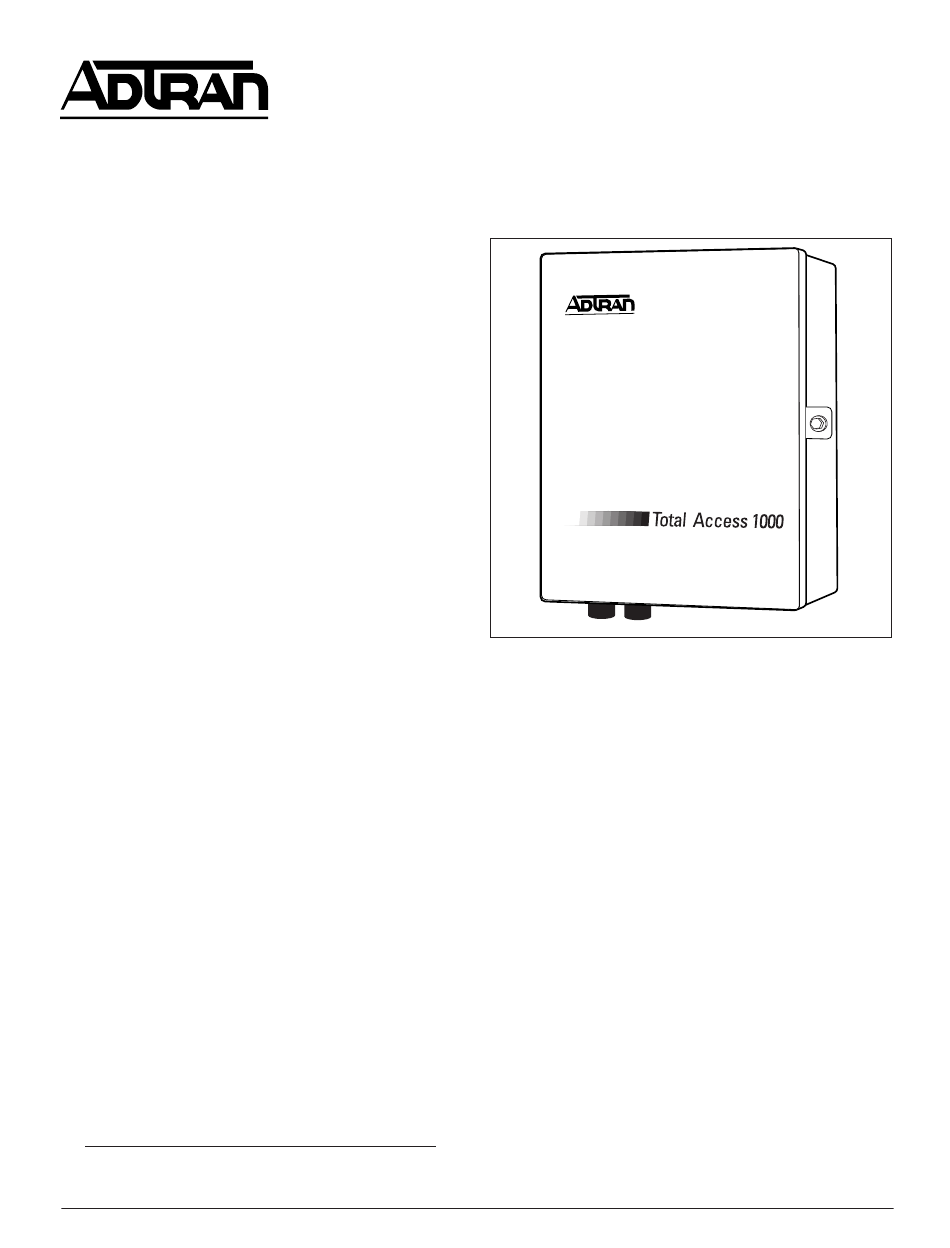

Figure 1. Total Access 1000 DAT

1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN Total Access 1000 Data
Access Terminal (DAT). Figure 1 is an illustration of
the Total Access 1000 DAT enclosure. Refer to
Appendix A for the quick start guide for ADSL plus
POTS.
Revision History
This is the initial release of this document. Changes in
future revisions will be noted in this subsection.
Description
The Total Access 1000 DAT is a high performance
remote DSLAM system for deploying DSL and voice
services. A small and versatile platform, the Total
Access 1000 DAT uses span powering along with
IMA signaling to deliver 12 ADSL plus POTS loops
from two, three, or four HDSL2 spans. This design
provides carriers the flexibility needed to meet
customer service commitments.
Issue 1, April 2003
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Total Access 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Adtron Total Access 1000

  • Page 1: Table Of Contents

    Termination Block Pin Assignments ..... 8 Description Table 3. Front Panel LEDs ........... 9 The Total Access 1000 DAT is a high performance Table 4. ATM BCU Front Panel LEDs ......10 remote DSLAM system for deploying DSL and voice Table 5.
  • Page 2: Figure 2. Total Access 1000 Dat Inside Layout

    Architecture The Total Access 1000 DAT is 12.7 inches wide by 14.7 inches high by 5.5 inches deep and is made of The Total Access 1000 DAT system is comprised of heavy gauge metal. The enclosure can be wall, pole, an outside plant (OSP) housing, Quad HDSL2 Line or pedestal mounted in an outside plant environment.
  • Page 3: Figure 3. Total Access 1000 Dat Typical Application

    Each of the three Quad ADSL Access Modules communicates via the backplane with the ATM BCU The Total Access 1000 DAT is completely powered and accepts four POTS signals from the CO. Each from the HDSL2 spans and requires at least three ADSL module provides four 2-wire ADSL plus POTS spans of HDSL2 for proper operation.
  • Page 4: Figure 4. Total Access 1000 Dat Hdsl2 Connections

    The incoming HDSL2 spans are terminated on P2, P3, P4, and P5. (See Figure 4). These terminations The Total Access 1000 DAT uses several modules to provide surge protection for each HDSL2 span. Only operate and provide multiple services. There are two...
  • Page 5: Figure 5. Total Access 1000 Dat Quad Adsl Plus

    The Total Access 1000 DAT is designed to support 24 ports of ADSL, 24 ports of SHDSL, up to a 24 port The Total Access 1000 DAT PSU is a common mixture of ADSL and SHDSL, or 12 ADSL plus module plug-in unit designed for use in the Total POTS ports.
  • Page 6: Figure 7. Total Access 1000 Dat Quad H2Liu

    Quad H2LIU ATM BCU The Total Access 1000 DAT Quad H2LIU is a The Total Access 1000 DAT Bank Controller Unit is a network terminating common plug-in unit used to common module plug-in unit. See Figure 8. The unit terminate the HDSL2 circuit over 2-wire metallic inserts directly into the BCU slot on the Total Access facilities.
  • Page 7: Installation/Operation

    – l l a i t a – The Total Access 1000 DAT can be wall, pole, or pedestal mounted. Templates are provided with each system to support accurate mounting of the enclosure. i t a –...
  • Page 8: Table 2. Termination Block Pin Assignments

    Refer to Figure 4. certain pairs on the Total Access 1000 DAT Connections for the commons and access modules are termination block. The ADSL plus POTS signal is made through the backplane.
  • Page 9: Table 3. Front Panel Leds

    The connections are terminated by pulling out the connector, slipping the wire through the access holes, To install a Total Access 1000 DAT module, grasp the then pushing the connectors back into place unit by the front panel while supporting the bottom (see Figure 4).
  • Page 10: Provisioning

    ATM BCU Front Panel Indicators 3. PROVISIONING The network LED labeled NETWORK on the front ADMIN Port panel of the ATM BCU provides status information The ADMIN interface (DB-9 connector) on the Total for the network DS1 IMA using a color-coded Access 1000 DAT ATM BCU is used to change message format.
  • Page 11 Account Names. Each alarms for the Total Access 1000 DAT. Each alarm is Account Name has a different permission level. displayed with a date and time stamp, the Level of the...
  • Page 12: Figure 9. Total Access 1000 Dat Menu Tree

    64179008APL1-5A...
  • Page 13: Figure 10. Atm Port Provisioning Menu

    Bank Controller Unit from the Main ATM traffic handled by the Total Access 1000 DAT. Menu. Menus provided by the BCU include This includes provisioning Permanent Virtual...
  • Page 14: Figure 11. Atm Pvc/Pvp Management Menu

    <-> Endpoint 2: Card Port Netw Enter # or use arrow keys to pick circuit; space bar for choices or c,d,m,n,p,t Figure 11. ATM PVC/PVP Management Menu Total Access 1000 (ATM) Unacknowledged Alarms: Major ATM Traffic Parameter Defaults Endpoint 1 -> Endpoint 2...
  • Page 15: Figure 13. Ima Facilities Provisioning Menu

    IMA Configuration menu is a read-only display that Pass-Through State via the IMA Facility sub-menu. can only be updated by installing new software See Figure 13. revisions. Total Access 1000 (ATM) Unacknowledged Alarms: None IMA Facility Provisioning Facility(0) Facility(1) Facility(2)
  • Page 16: Figure 14. Ima Group Provisioning Menu

    • Minimum TX Active Lengths Provisioning menu. • Minimum RX Active Lengths • Maximum Length Differential Delay • Group Operation Mode Total Access 1000 (ATM) Unacknowledged Alarms: None IMA Group Provisioning IMA Transmit ID (0-255) IMA TX Frame Length MRX Active Links Max.
  • Page 17: Figure 15. Group Failure Monitoring Status Screen

    The IMA Status / Failure Monitoring (FM) Status screen allows the user to view statistics vital to successful operation of the Total Access 1000 DAT. This screen provides a high-level look at the IMA Group or a detailed look at the IMA Links. The...
  • Page 18: Figure 17. Present Performance Monitoring Statistics Screen For All Ima Links

    BCU. Parameters that may be adjusted via the System be set at the matching baud rate to achieve Management Menu include the following: communication with the Total Access 1000 DAT. • Passwords • IP Address and Management PVC The System Management Menu also allows the user to upgrade the software for the ATM BCU.
  • Page 19: Figure 18. Liu Span Status Screen

    The Framing Mode submenu allows the user to choose between SuperFrame (SF) and Extended SuperFrame (ESF) framing for each HDSL2 Port. Total Access 1000 (ATM) HDSL2 Quad LIU Span Status H2TU-R Loop 1 Loop 2...
  • Page 20: Figure 19. Liu Performance Monitoring Statistics

    The ADSL Configuration menu is a read-only display The Access Modules Menu is the gateway to each of that is only updated when new software revisions are the installed access modules in the Total Access 1000 installed. DAT. Currently, ADTRAN offers the Quad ADSL...
  • Page 21: Figure 20. Quad Adsl Status Screen

    The OOS-U service state restricts all traffic flow for the individual ADSL port. The Reset to Factory Defaults option resets all of the provisioning options for the ADSL Access Module to the default settings. Total Access 1000 (ATM) ADSL Status ADSL Line Link Status Down...
  • Page 22: Figure 21. Quad Adsl Circuit Overview Screen

    Alert, or Info), and an Event Description. Alarms Logoff Option may be cleared at any time by choosing the Clear Only one user may provision the Total Access 1000 Alarm Log option from the System Alarms Menu. DAT at a time; therefore, it is important to logoff...
  • Page 23: Testing

    This deployment criteria is summarized in the chart Figure 22. H2LIU Network Loopback shown in Figure 23. The Total Access 1000 DAT H2LIU will respond to the industry defacto HDSL2 loopback codes as designated in the ANSI document T1E1.4/92. A...
  • Page 24: Specifications

    Loop loss per kft for other wire is summarized in Table 6. Recommended maximum local loop loss The specifications for the Total Access 1000 DAT can information for PIC cable at 70ºF, 135 Ω resistive be found in Table 8.
  • Page 25: Warranty And Customer Service

    8. WARRANTY AND CUSTOMER SERVICE ADTRAN will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found at www.adtran.com/warranty. U.S. and Canada customers can also receive a copy of the warranty via ADTRAN’s toll-free faxback server, 877-457-5007.
  • Page 26 64179008APL1-5A...
  • Page 27: Appendix A Quick Start Guide - Adsl Plus Pots

    • Repeat the preceding instructions for the Tools Needed (Wall Mount or Polemount) remaining HDSL2 pairs. The Total Access 1000 DAT Chassis mounts and connects with standard fasteners and hand tools: 3. Make the POTS Connections • Six #6 x 3/4-inch, flat-head wood screws.
  • Page 28 PROGRAMS / ACCESSORIES / 6. Apply Span Power HYPERTERMINAL. Refer to the Help section of After the Total Access 1000 DAT’s ground bus has HyperTerminal for additional information. been properly connected to a reliable ground source, span power may be applied via the HDSL2 pairs. If...
  • Page 29 – Rate Mode Adaptive Total Access 1000 DAT after a user has accessed the craft port, a timed auto-logout will logout the last user – Data Path Selection Interleave after approximately eight minutes of keyboard inactivity.
  • Page 30 6. Type <C> for Create PVC. The card selection for 27. Use the left arrow to move to the Circuit ID field. endpoint 1 will be highlighted in the bottom left 28. Press the spacebar to access the field. portion of the screen. 29.
