Summary of Contents for Burkert ProcessViewDisplay ME61

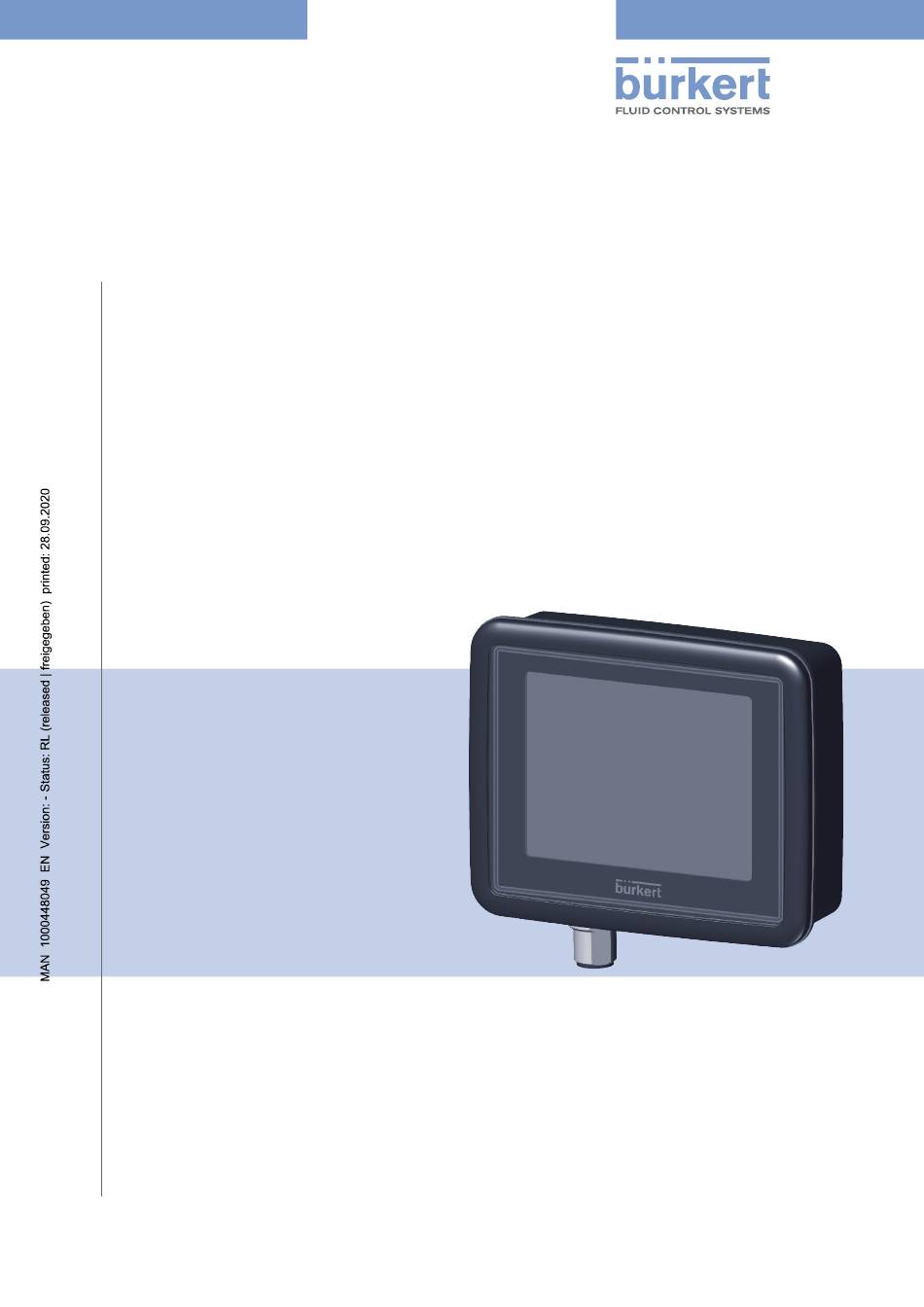

- Page 1 Type ME61 ProcessViewDisplay Operating Instructions...
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2020 Operating Instructions 2009/00_EU-en_00815341 / Original DE...
-
Page 3: Table Of Contents
ME61 ProcessViewDisplay Type ME61 ontents OPERATING INSTRUCTIONS ........................5 Symbols ............................5 1.2 Definition of terms ........................6 INTENDED USE ............................6 BASIC SAFETY INSTRUCTIONS ......................7 GENERAL NOTES...........................8 4.1 Contact address ...........................8 4.2 Warranty ............................8 4.3 Information on the Internet ......................8 PRODUCT DESCRIPTION ........................8 TECHNICAL DATA ..........................9 6.1 Conformity ............................9 6.2 Standards .............................9 6.3 Operating conditions ........................9 6.4... - Page 4 ME61 7.6 Connecting to the fieldbus gateway ..................14 START-UP WITH BÜRKERT COMMUNICATOR ..................15 8.1 User interface ..........................15 8.1.1 Connecting the device to the Bürkert Communicator ..........16 8.2 Configuration of views .......................16 8.3 Settings with Bürkert Communicator ..................17 8.3.1 Overview of device-specific setting options ...............17 MAINTENANCE ............................20 TROUBLESHOOTING ...........................21 10.1 Status indicators and measures ....................21 ACCESSORIES .............................22 DISASSEMBLY .............................22 PACKAGING, TRANSPORT ........................23 STORAGE .............................23 DISPOSAL ............................23...
-
Page 5: Operating Instructions
ME61 Operating instructions OPERATING INSTRUCTIONS The operating instructions describe the entire life cycle of the device. Keep these instructions ready to hand at the operation site. Important safety information! ▶ Carefully read these instructions. ▶ Observe in particular the safety instructions, intended use and operating conditions. ▶... -
Page 6: Definition Of Terms
ME61 Operating instructions Definition of terms Definition of the terms used in these instructions. • Device: the term “Device” stands for the following device types: ME61 • büS (Bürkert system bus): the term “büS” stands for the communication bus developed by Bürkert, based on the CANopen protocol. INTENDED USE Non-intended use of the device may be dangerous to people, nearby equipment and the environment. -
Page 7: Basic Safety Instructions
ME61 Basic safety instructions BASIC SAFETY INSTRUCTIONS These safety instructions do not take into account any unforeseen circumstances and events which occur during installation, operation and maintenance. The operator is responsible for observing the location-specific safety regulations, also with reference to personnel. General hazardous situations. To prevent injuries, observe the following: ▶ Use the device only when it is in perfect condition and in accordance with the operating instructions. ▶... -
Page 8: General Notes
Germany Bürkert Fluid Control Systems Sales Center Christian-Bürkert-Str. 13-17 D-74653 Ingelfingen Tel. +49 (0) 7940 - 10-91 111 Fax +49 (0) 7940 - 10-91 448 E-mail: info@burkert.com International The contact addresses can be found online at: country.burkert.com Warranty A precondition for the warranty is that the device is used as intended in consideration of the specified ope- rating conditions. Information on the Internet Operating instructions and data sheets for the Bürkert products can be found on the Internet at: country.burkert.com... -
Page 9: Technical Data
ME61 Technical data TECHNICAL DATA Conformity The device conforms to the EU directives as per the EU Declaration of Conformity (if applicable). Standards The applied standards, which are used to demonstrate conformity with the directives, are listed in the EU type examination certificate and/or the EU Declaration of Conformity (if applicable). Operating conditions WARNING! Risk of injury due to malfunction if used outdoors. ▶ Do not use the device outdoors and keep it away from heat sources that could cause the permissible temperature range to be exceeded. Permitted ambient temperature range: +10 °C – +60 °C Altitude: Up to 2000 m above sea level Mechanical data... -
Page 10: Type Label, Device Labelling
ME61 Technical data Type label, device labelling Type, device identification number Barcode Serial number, manufacture code QR code (link for further infor- ME61 | ID: 00368544 Made in Germany mation on the device) S/N: 001001 | W08MN 74563 Ingelfingen IP65 CE mark : -20 °C...+60 °C Permitted ambient tem- Supply voltage, perature range... -
Page 11: Terminal Strip
ME61 Technical data 6.7.2 Terminal strip Image 3: Terminal strip pin assignment Item Assignment Function Supply CAN_L büS communication CAN_H büS communication 24 V Supply Table 2: Terminal strip pin assignment English... -
Page 12: Installation
ME61 Installation INSTALLATION Safety instructions WARNING! Risk of injury due to improper installation. ▶ Installation may be carried out by authorised technicians only and with the appropriate tools. ▶ Secure the system against unintentional activation. ▶ Following installation, ensure a controlled restart. Mounting onto the standard rail →... -
Page 13: Mounting With Magnets
ME61 Installation Mounting with magnets → Fasten the device, with 2 magnets on the back, to a metallic surface. Image 5: Mounting the device with magnets Mounting with a pipe clamp → Loosen the screws on the pipe clamp and open it. →... -
Page 14: Mounting In The Control Cabinet
ME61 Installation Mounting in the control cabinet → Loosen the M12 screw of the connection cable. → Loosen the screws on the back of the housing bottom and remove the housing top with the seal, display, connection cable and printed circuit board from the housing bottom. -
Page 15: Start-Up With Bürkert Communicator
ME61 Start-up with Bürkert Communicator START-UP WITH BÜRKERT COMMUNICATOR The displayed data fields can only be set on a PC with the Bürkert Communicator software; see chapter “8.2 Configuration of views”. The Bürkert Communicator software can be downloaded free of charge from the Bürkert website. In addition to the software, the USB-büS-interface, available as an accessory, is required. This chapter describes the basic use of the Bürkert Communicator. Detailed information on using the Bürkert Communicator software can be found on the Bürkert website at: country.burkert.com → 8920 → “Operating instructions” downloads. User interface Navigation area Add interface Menu bar (connect to USB-büS-Interface) Configuration areas Menus of the device Detailed views Parameter Diagnostics Maintenance Device Image 8: Bürkert Communicator user interface... -
Page 16: Connecting The Device To The Bürkert Communicator
ME61 Start-up with Bürkert Communicator 8.1.1 Connecting the device to the Bürkert Communicator The Bürkert Communicator can be connected to the device via a büs network or with the büS stick. → Install Bürkert Communicator on the PC. → Use the USB-büS-interface to establish the connection between the device and the PC. Not required for the devices in a büS network. -
Page 17: Settings With Bürkert Communicator
The device is set on the PC with Bürkert Communicator. The upper part of the device display flashes while settings are made with Bürkert Communicator. 8.3.1 Overview of device-specific setting options The following overview of the setting options contains only the device-specific settings for the ProcessView- Display ME61 and not the description of the Bürkert Communicator software. The detailed description of the operation and settings of Bürkert Communicator can be found on the homepage country.burkert.com → Type 8920. English... - Page 18 ME61 Start-up with Bürkert Communicator Communicator: Configuration area General settings Detailed view Setting Configuration of the büS interface Parameters büS for display and Bürkert Communicator. Assign displayed name Location Specify location displayed for the device. Description Enter description text for tooltips Advanced Unique device name for partner assignment. Specify Baud rate. Specify fixed CANopen address View CANopen address. Bus operation mode Set operation mode of the büS interface.
- Page 19 ME61 Start-up with Bürkert Communicator Communicator: Configuration area General settings Detailed Menu view Diagnostics Device status Operating duration In these menus, the current Device boot counter values are dis- Transferable memory status played, not set. Number since restart. büS status Receive errors Max. receive errors Most serious receive error that was issued in the same way as the device status is displayed.
-
Page 20: Maintenance
ME61 Start-up with Bürkert Communicator Communicator: Configuration area General settings Detailed view Setting Maintenance Device information Displayed name only displayed if a name In these menus, was entered in the menu of the same name the current values for the Parameters detailed view. are displayed, not set. Identification number of the device. -
Page 21: Troubleshooting
ME61 Troubleshooting TROUBLESHOOTING Problem Possible cause Measure An incorrect value is applied The process values are not Check the assignment of the process or the value is zero. assigned or are assigned to the values. wrong participants. Table 7: Troubleshooting 10.1 Status indicators and measures The status alerts always refer to the device with the values being displayed. -
Page 22: Accessories
ME61 Accessories ACCESSORIES CAUTION! Risk of injury and/or damage due to incorrect parts! Incorrect accessories and unsuitable spare parts may cause personal injuries and damage to the device and the area around it. ▶ Use only original accessories and original spare parts from Bürkert. Accessories Order number USB-büS-interface set 1 (including power supply unit, büS stick, terminating resistor, 772426 Y-distributor, 0.7 m cable with M12 plug) USB-büS-interface set 2 (including büS stick, terminating resistor, Y-distributor, 0.7 ... -
Page 23: Packaging, Transport
ME61 Accessories Image 11: Removing device from standard rail PACKAGING, TRANSPORT NOTE! Damage in transit due to inadequately protected devices. ▶ Protect the device against moisture and dirt in shock-resistant packaging during transportation. ▶ Observe permitted storage temperature. STORAGE NOTE! Incorrect storage may damage the device. ▶ Store the device in a dry and dust-free location. ▶... - Page 24 www.burkert.com...
