Swereco Raising Adam Instructions For Use

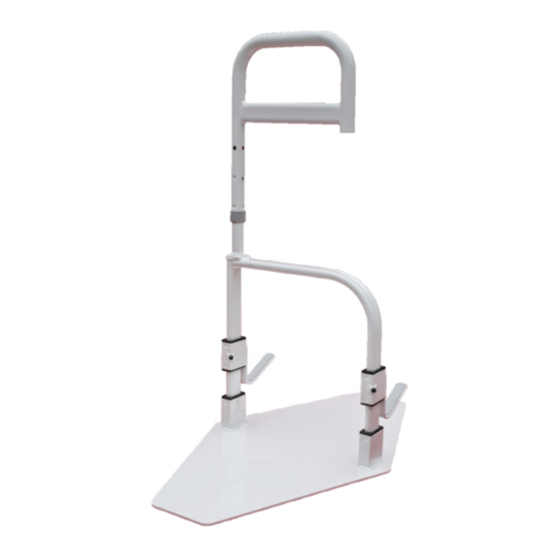

Raising Adam
Floor support, Handgrip standard
Raising Adam, with its pattern-protected design, is intended to be
used as a support handle by a sofa. Adam is also approved to be used
by low beds as a bed support handle / bed turn handle, as well as
protection for rolling out of the bed.
The support is mounted by inserting the handgrip into the floor
support. Attach the handgrip to the floor support by securing the hex
screws. Adjust the brackets so that they rest against the frame of the
sofa (long side) and fasten the hex screws with the supplied hex key.
The tool should then be attached to the magnet on the floor support
bracket to be available when needed. The frame of the sofa should
consist of solid wood and the width of the bottom edge of the frame
should be 2-5,5 cm. Ensure correct installation before use, and that
all screws are securely tightened.
Höjd (H) monterad, standard: 68,5 – 78,5 cm.
Art. nr: 151060:
Floor support Width: 35 cm, Weight: 8,4 kg
A hex key should always come with the floor support

Safety Instructions:

1. The product shall not be used in other ways than intended. The installation should be made by
authorized personnel. Swereco assumes no responsibility if the product is used, modified or
assembled in any other way than what is stated in the instructions for use.
2. The handgrip is not intended to be used for small children due to the distance between the bars. Risk
for injury.
3. If the bed is fitted with raisers, they should be attached to the legs of the bed.
4. Ensure that the handgrip locks in position when adjusting its height or angel of the upper part.
5. Ensure correct installation before use, and make sure all screws are properly tightened.
6. Maximum user weight 150 kg
For mounting by bed, follow the safety- and mounting instructions for Raising Eva.
Teknisk specifikation
Art. nr: 151082
Handgrip standard total height:
68,5 – 78,5 cm
.
Weight: 3 kg
Material: Powder coated steel tubes
Instructions for Usee
Article number:
Handgrip
Bracket
8 cm
151060,151082
Floor support
3.2 cm
26,5-36,5cm
33 cm
30 cm
