AquaLogic O3 Assembly Instruction

O
aqualogic
NT
Thank you for purchasing the aqualogic Ozone tap. Ozone is a naturally produced
substance from oxygen atoms and is combined with water to produce ozone water.
Our patented technology and mixing of ozone water gives this product a unique
place in the kitchen.
Ozone is 100 times stronger than chlorine and can disinfect effectively in a few
seconds, remove bacteria, pesticides, odors, keep fruit, vegetables and meat fresher
and provide ozone water for cleaning all your kitchen surfaces.
Product features
Considerate: Large flow volume and limitless usage.
Eco friendly: Natural germicide, no chemical storage required.
Safety:
Auto shut off when ozone generator is not in a vertical position.
Convenience: Ozone sterilization operates when turning on taps.
Hi-Tech: Exclusive water-air combination technology.
Stylish: Ozone sanitizer placed hidden under sink to keep your design integrated.
Eliminate Remove Maintain
bacteria pesticide freshness
One-year limited Warranty: Effective from date of purchase
Warranty does not cover:
1. Damage caused by human error or incorrect installation.
2. Remove warranty label by ozone sanitizer, disassemble or modification of
the sanitizer.
3. Damage caused by natural disasters.
4. Ozone sanitizer immersed or soaked in water and leads to damage internal
circuit board.
5. Use of non genuine parts.
Applications
Reduce Disinfect
odors tableware
Tools
A
Parts Description
Oral hygiene
Tap Specification
care

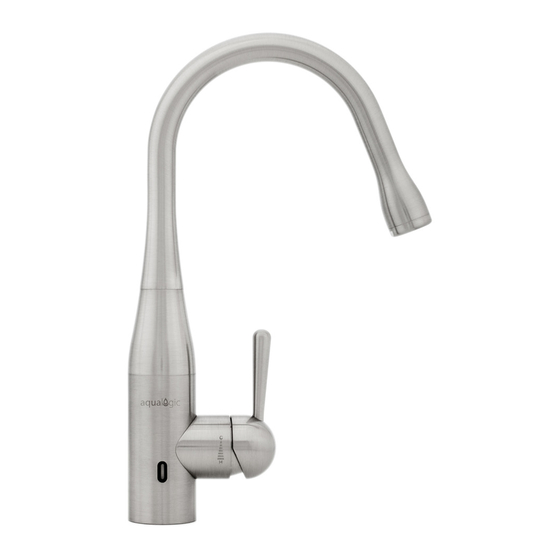

3 Way Single Lever Kitchen Tap
Item Nr.: AQU-ZON-DOM-101
Size: 215(L) x 425(H) x ø±40±2mm(I.D.)
3 Way Twin Lever Kitchen Tap
Item Nr.: AQU-ZON-DOM-102
Size: 215(L) x 425(H) x ø±40±2mm(I.D.)
3 Way Single Lever Basin Tap
Item Nr.: AQU-ZON-DOM-106
Size: 160(L) x 320(H) x ø±40±2mm(I.D.)
Installation Conditions
Water pressure: 2,5kg/cm² ~ 5kg/cm²
Water temperature: 4°C ~ 80°C
Environment temperature: 5°C ~ 50°C
Mounting hole dimension: ø±40±2mm
1 Tap Body
Screwdriver
2 Ozone Anti-bacterial Sanitizer
Wrench
3 AC Adaptor
Clip for aerator housing
4 LED Wire
5 Silicone tube in a protective hose
6 Red Stainless Steel Hose
7 Blue Stainless Steel Hose
8 Hex Fixing Nut
9 Fixing Screw
10 Metal Mounting Plate
11 Plastic Mounting Plate
12 Aerator
Ozone Generator Specification
O
aqualogic
Model
Input Voltage
Power Consumption 6,0W (MAX)
Size (HxWxD)
Serial Number
NOTICE: Warranty will be invalid with unauthorized
Aqualogic NT Ltd.
Woodside House
20-23 Woodside House
Glasgow, G3 7QF
Scotland
Ozone-Generator
NT
OZ-1000
ETA Pending
DC 12V
186x125x42(mm)
On label/Generator backside
disassembly
Telephone: +44 141 582 1399
Fax: +44 141 582 1484
www.aqualogicNT.co.uk
Skype: aqualogic.nt.limited
