ADELSYSTEM CBI-1280 Series Manual

CBI All in One
DC UPS Power Solutions
CBI All In One UPS Power Solutions combine the requirements for several applications in just one device which can be
used as power supply unit, battery charger, battery care module or backup module. The available power is
automatically distributed among load and battery, while supplying power to the load always is the first priority. The
maximum available current of the load output is two times the value of the device's rated current.
If the device is disconnected from the main power source, the battery will supply the load until the battery voltage
reaches 1.5 V per cell. This prevents the battery from deep discharge. CBI devices provide microprocessor controlled
battery charging. Using algorithms, the battery's condition will be detected and based on that, an appropriate charging
mode is chosen. The real-time diagnostics system will continuously monitor the charging progress and indicate possibly
occurring faults such as elements in short circuit, accidental reverse polarity connection or disconnection of the battery
by the battery fault LED and a flashing code of the diagnosis LED.
CBI All In One UPS Power Solutions are suitable for open/sealed lead acid-, lead gel- and optionally Ni-Cd batteries. By
using the battery-select-jumper, it is possible to set predefined charging curves for those battery types. The available
charging options are recovery-, boost- and trickle charge. All CB devices are built in a rugged metal case with a DIN rail
mounting bracket.
Features:
• Power supply, battery charger, battery care module and backup module in one device
• Three charging modes
• Compact, rugged metal case
• Available in 12VDC, 24VDC and 48VDC
• Suitable for most common battery types
• Adjustable charging current
• Easy battery diagnosis and fault identification either by LED or external devices connected to fault
• Status contacts
• High efficiency up to 91% through switching technology
• Several output protection features such as short circuit, overload, deep battery discharge etc.
• DIN rail mounting
• Small size
• 3 year warranty
138

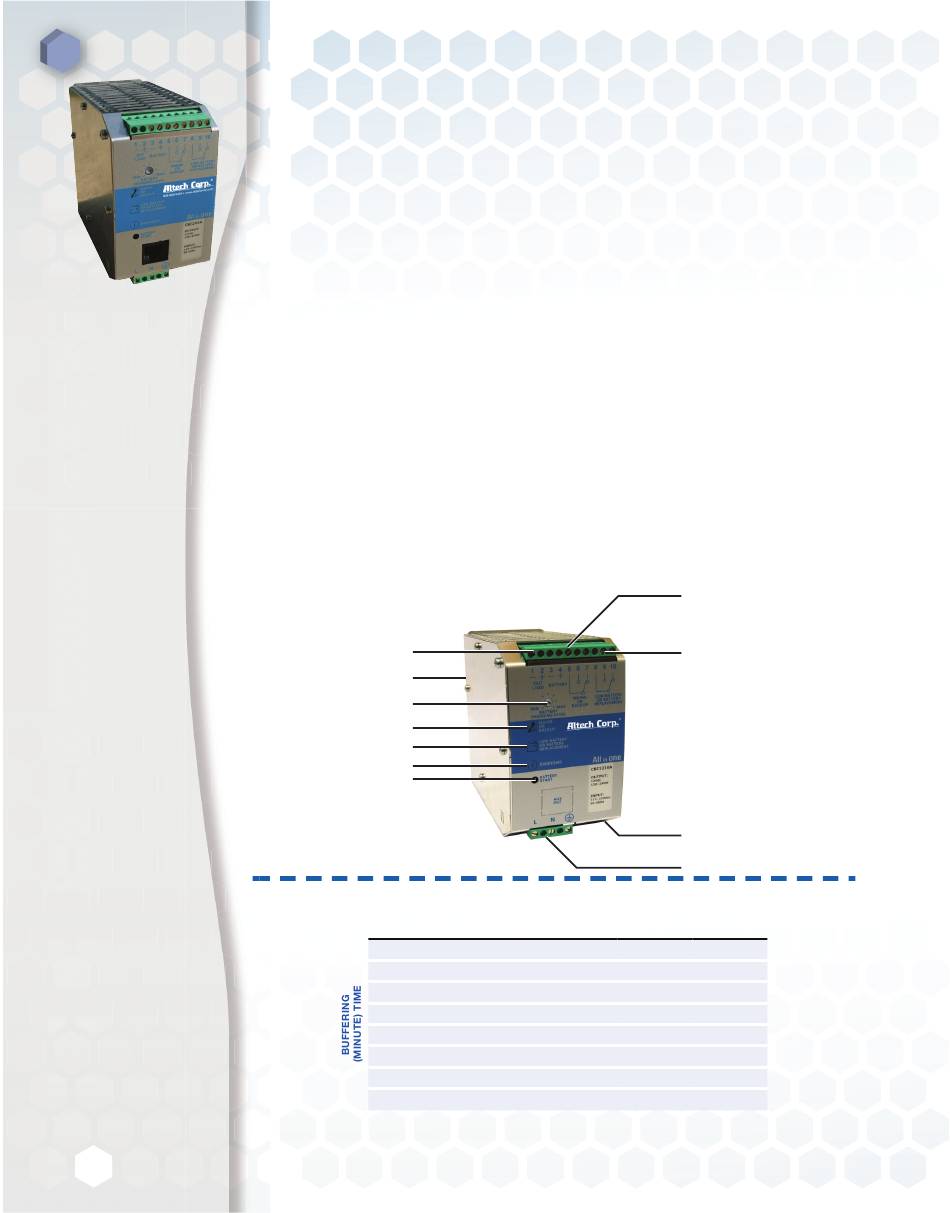

Load Output
DIN Rail Mounting
Charging Level
Mains LED
Low Battery LED
Diagnosis LED
Battery Start
Push Button
Battery Selection Chart
Battery type 1.2 Ah
20
Load 1.5 A
8
Load 3 A
3
Load 5 A
Load 7.5 A 2
-
Load 10 A
Load 12 A -
-
Load 15 A
-
Load 20 A
For the latest on Altech Power Supply specifications please visit www.altechcorp.com/power.
Battery Charging Output
Monitor Signal
Switch Contacts
Battery Type
Configuration Jumper
AC Input
3.2 Ah 7.2 Ah 12 Ah
60 200 400
30 120 240
15 55 100
10 30 60
7 20 45
3 12 30
- 9 20
- 7 13
