Summary of Contents for Trophy Strike 107387

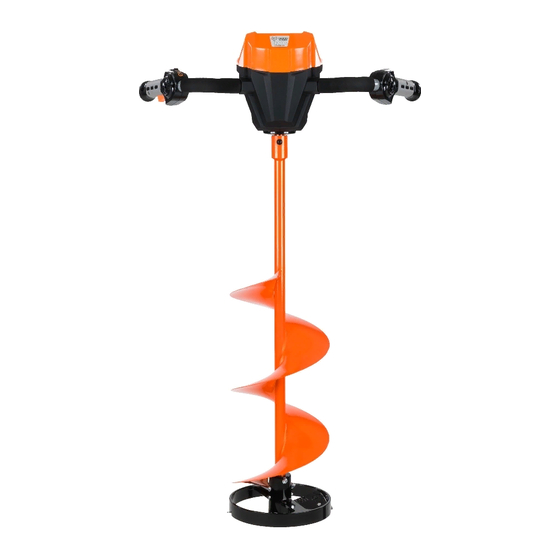

- Page 1 120V Lithium Ion Cordless Ice Auger MODEL # 107387 Operation Manual This safety alert symbol identifies important safety messages in this manual. Failure to follow this important safety information may result in serious injury or death. Part # 106632 Rev A...
- Page 2 For Service or Questions Call 1-877-487-8275 720-287-5182 www.trophystrike.com Trophy Strike is a brand of 1100 W 120th Ave, Suite 600 Westminster, CO 80234 • 720-287-5182...
-
Page 3: Table Of Contents
Table of Contents Important Safety Information Intended Use ...................4 Personal Protective Equipment ............4 General Safety ..................5 Safety Decals ..................6 Auger Assembly ..................7 Overview of Components .................8 Operating Precautions................9 Battery Use and Care ................9 Charging the Battery ................10 Operation....................11 Maintenance ....................12 Tip Replacement ...................12 Blade Replacement ................12 Transporting .....................13... -
Page 4: Important Safety Information
Important Safety Information WARNING WARNING: Read and thoroughly understand all instructions and safety information before assembling or operating the Ice Auger. Failure to do so may cause serious injury or death. Do not allow anyone to operate this ice auger who has not read this manual. As with all power equipment, an ice auger can be dangerous if assembled or used improperly. -
Page 5: General Safety
Important Safety Information General Safety Failure to follow warnings, cautions, assembly and operation instructions in the Operation Manual may result in serious injury or death. DANGER READ THE OPERATION MANUAL BEFORE OPERATION. • Do not permit children to operate this equipment at any time. •... -
Page 6: Safety Decals
Safety labels on the ice auger are to remind you of important information while you are operating the unit. Make sure all safety warning decals are attached and in readable condition. Replace missing or defaced decals. Contact Trophy Strike at 1-877-487-8275 for replacement decals. Model... -
Page 7: Auger Assembly
Auger Assembly Attaching the auger. Attach the auger to the output shaft on the bottom of the powerhead, lining up the holes in the auger with the output shaft and securing with M8-1.25 x 35mm socket cap screw. SOCKET CAP SCREW... -
Page 8: Overview Of Components
Overview of Components BATTERY HAND GRIP 15” AUGER EXTENSION 8” DIA. AUGER FORWARD/ REVERSE SAFETY SWITCH CONTROL BUTTON AUGER BLADES AUGER TRIGGER ON/OFF SWITCH... -
Page 9: Operating Precautions
This tool is for drilling into ice. Do not use it for any other purpose or with accessories not supplied by Trophy Strike. Never attempt to modify the tool, or to bypass any of the safety features. -
Page 10: Charging The Battery
Do not attempt to use the charger. To avoid the risk of damage and injury, only use the charger to recharge Trophy Strike 120V battery packs. Never try to recharge non-rechargeable batteries. STORAGE OF THE CHARGER AND BATTERY... -
Page 11: Operation
Operation DRILLING A HOLE 1. Place the auger onto the output shaft on the powerhead. Align the bolt holes and use the connecting bolt and connection knob supplied to lock into place. Always check that this bolt is tight before each use. 2. -
Page 12: Maintenance
Maintenance 1. Always remove and store the battery separately from the auger powerhead. Always remove the battery before attempting any maintenance or adjustment. 3. If blade performance decreases, turn unit off and disconnect battery. Carefully inspect cutting edge of blades for any nicks or shiny areas. -
Page 13: Transporting
Transporting TRANSPORTING THE ICE AUGER 1. Ensure that the safety control button is released and that the On/Off trigger is not depressed for transporting to the next drilling site. 2. For transporting longer distances, always remove the battery. To avoid damage to the auger or powerhead, remove the auger from the powerhead and transport separately. -
Page 14: Storage
Storage PREPARING FOR LONG TERM STORAGE 1. Remove the battery. 2. Remove auger from powerhead and apply a thin layer of grease to the output shaft. 3. Remove all debris from auger and powerhead. 4. Store auger and powerhead in a vertical position. 5. -
Page 15: Troubleshooting
Troubleshooting Most troubleshooting problems are easy to resolve. Review the troubleshooting chart below for answers to common problems. For more complicated repairs call our customer service department at 720-287-5182, or 1-877-487-8275. TROUBLESHOOTING PROBLEM SOLUTION The ice auger will not start. •... -
Page 16: Warranty & Specifications
Record the information below for future reference. Model No. Serial No. Date of Purchase Place of Purchase SKU/Part No. 107387 Description 120V Lithium Ion Cordless Ice Auger Rated Voltage 120 Volts DC Auger Speed 325 rpm (no load)
