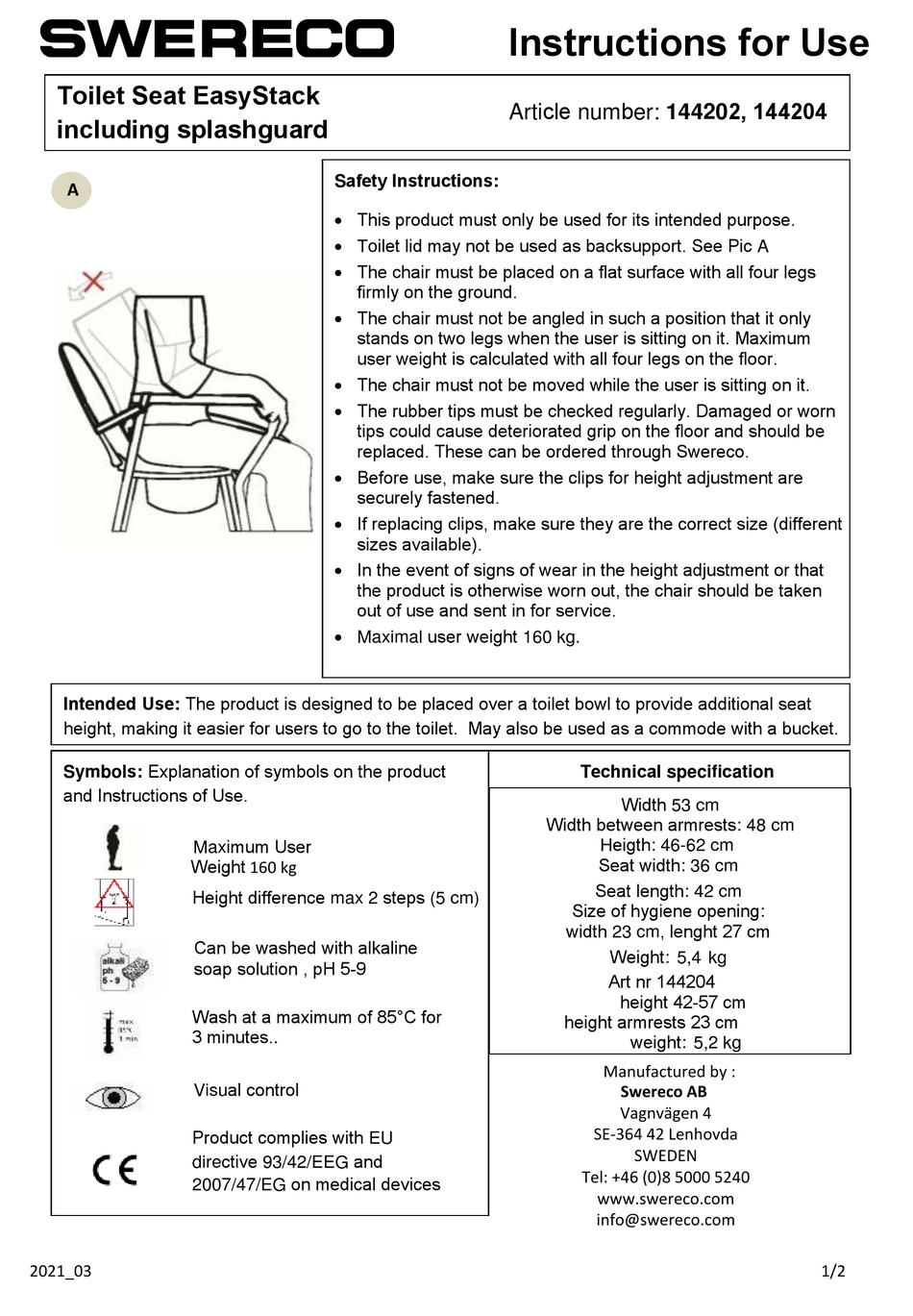

Toilet Seat EasyStack
including splashguard
A
Intended Use: The product is designed to be placed over a toilet bowl to provide additional seat
height, making it easier for users to go to the toilet. May also be used as a commode with a bucket.
Symbols: Explanation of symbols on the product
and Instructions of Use.
Maximum User
Weight 160 kg
Height difference max 2 steps (5 cm)
Can be washed with alkaline
snäpp.
soap solution , pH 5-9
Wash at a maximum of 85°C for
3 minutes..
Visual control
Product complies with EU
directive 93/42/EEG and
2007/47/EG on medical devices
2021_03
Safety Instructions:
This product must only be used for its intended purpose.
Toilet lid may not be used as backsupport. See Pic A
The chair must be placed on a flat surface with all four legs
firmly on the ground.
The chair must not be angled in such a position that it only
stands on two legs when the user is sitting on it. Maximum
user weight is calculated with all four legs on the floor.
The chair must not be moved while the user is sitting on it.
The rubber tips must be checked regularly. Damaged or worn
tips could cause deteriorated grip on the floor and should be
replaced. These can be ordered through Swereco.
Before use, make sure the clips for height adjustment are
securely fastened.
If replacing clips, make sure they are the correct size (different
sizes available).
In the event of signs of wear in the height adjustment or that
the product is otherwise worn out, the chair should be taken
out of use and sent in for service.
Maximal user weight 160 kg.
Article number: 144202, 144204
Technical specification
Width 53 cm
Width between armrests: 48 cm
Heigth: 46-62 cm
Seat width: 36 cm
Seat length: 42 cm
Size of hygiene opening:
width 23 cm, lenght 27 cm
Weight: 5,4 kg
Art nr 144204
height 42-57 cm
height armrests 23 cm
weight: 5,2 kg
Manufactured by :
Material: Stålrör, PE (sits), TPE (stödfötter)
Swereco AB
Vagnvägen 4
SE-364 42 Lenhovda
SWEDEN
Tel: +46 (0)8 5000 5240
www.swereco.com
info@swereco.com
1/2
