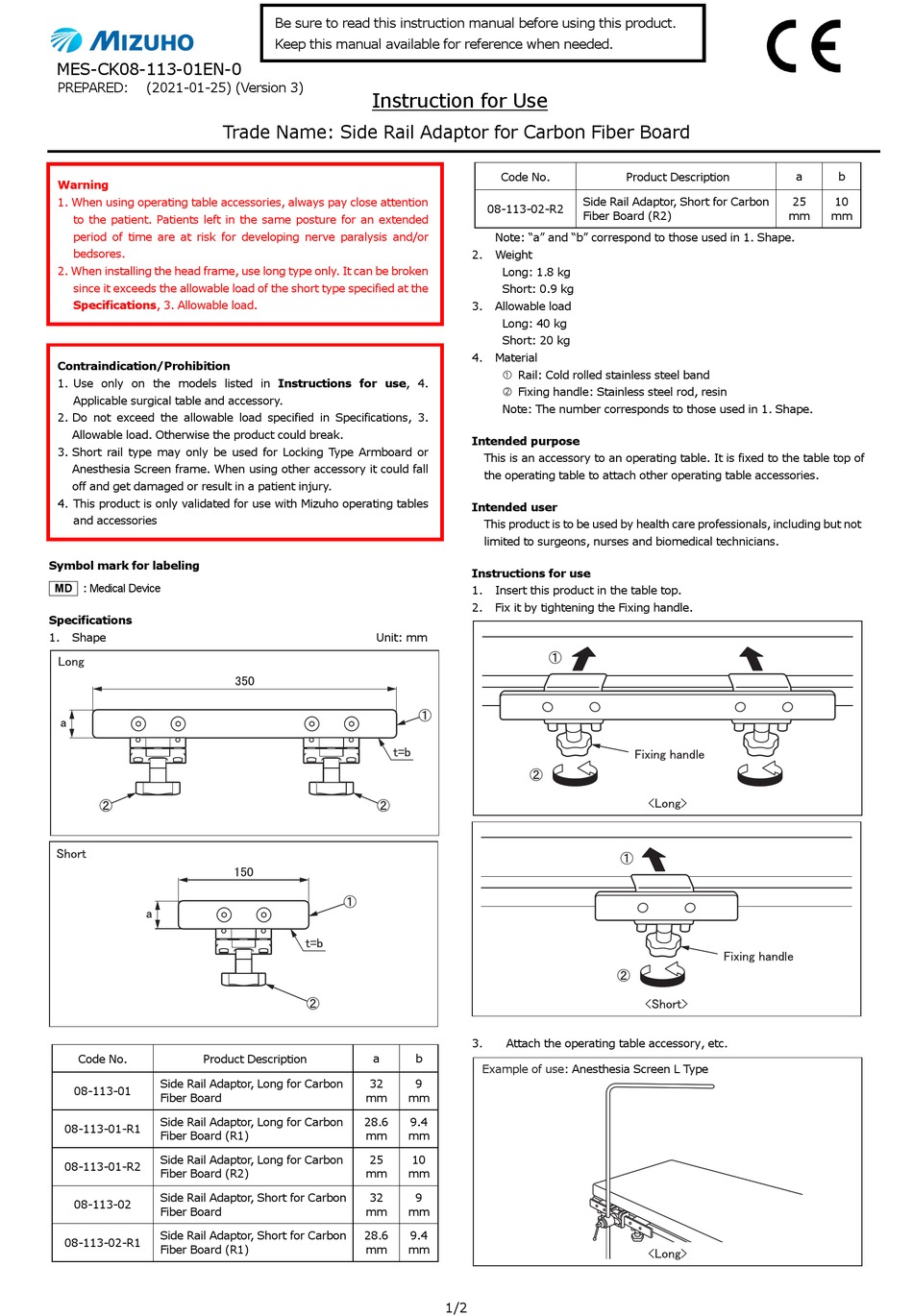

Mizuho 08-113-02-R2 Instructions For Use

MES-CK08-113-01EN-0
PREPARED: (2021-01-25) (Version 3)

Warning

1. When using operating table accessories, always pay close attention
to the patient. Patients left in the same posture for an extended
period of time are at risk for developing nerve paralysis and/or
bedsores.
2. When installing the head frame, use long type only. It can be broken
since it exceeds the allowable load of the short type specified at the
Specifications, 3. Allowable load.

Contraindication/Prohibition

1. Use only on the models listed in Instructions for use, 4.
Applicable Surgical Table And Accessory.
2. Do not exceed the allowable load specified in Specifications, 3.
Allowable load. Otherwise the product could break.
3. Short rail type may only be used for Locking Type Armboard or
Anesthesia Screen frame. When using other accessory it could fall
off and get damaged or result in a patient injury.
4. This product is only validated for use with Mizuho operating tables
and accessories

Symbol mark for labeling

MD : Medical Device

Specifications

1. Shape
Code No. Product Description
Side Rail Adaptor, Long for Carbon
08-113-01
Fiber Board
Side Rail Adaptor, Long for Carbon
08-113-01-R1
Fiber Board (R1)
Side Rail Adaptor, Long for Carbon
08-113-01-R2
Fiber Board (R2)
Side Rail Adaptor, Short for Carbon
08-113-02
Fiber Board
Side Rail Adaptor, Short for Carbon
08-113-02-R1
Fiber Board (R1)
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use
Trade Name: Side Rail Adaptor for Carbon Fiber Board
Unit: mm
a
32
mm
28.6
mm
25
mm
32
mm
28.6
mm
Code No.
08-113-02-R2
Note: "a" and "b" correspond to those used in 1. Shape.
2. Weight
Long: 1.8 kg
Short: 0.9 kg
3. Allowable load
Long: 40 kg
Short: 20 kg
4. Material
 Rail: Cold rolled stainless steel band
 Fixing handle: Stainless steel rod, resin
Note: The number corresponds to those used in 1. Shape.

Intended purpose

This is an accessory to an operating table. It is fixed to the table top of
the operating table to attach other operating table accessories.

Intended user

This product is to be used by health care professionals, including but not
limited to surgeons, nurses and biomedical technicians.
Instructions for use
1. Insert this product in the table top.
2. Fix it by tightening the Fixing handle.
3. Attach the operating table accessory, etc.
b
Example of use: Anesthesia Screen L Type
9
mm
9.4
mm
10
mm
9
mm
9.4
mm
1/2
Product Description
Side Rail Adaptor, Short for Carbon
Fiber Board (R2)
a b
25 10
mm mm
