SPT SUPERDOME
By Superior Panel Technology
This manual provides information intended for use by persons who, in accordance with current
regulatory requirements, are qualified to install this equipment. If further information is required,
please contact:
Revision A, June 10, 2019
INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
Manual P/N SPTSDL-1
SPT SUPER DOME

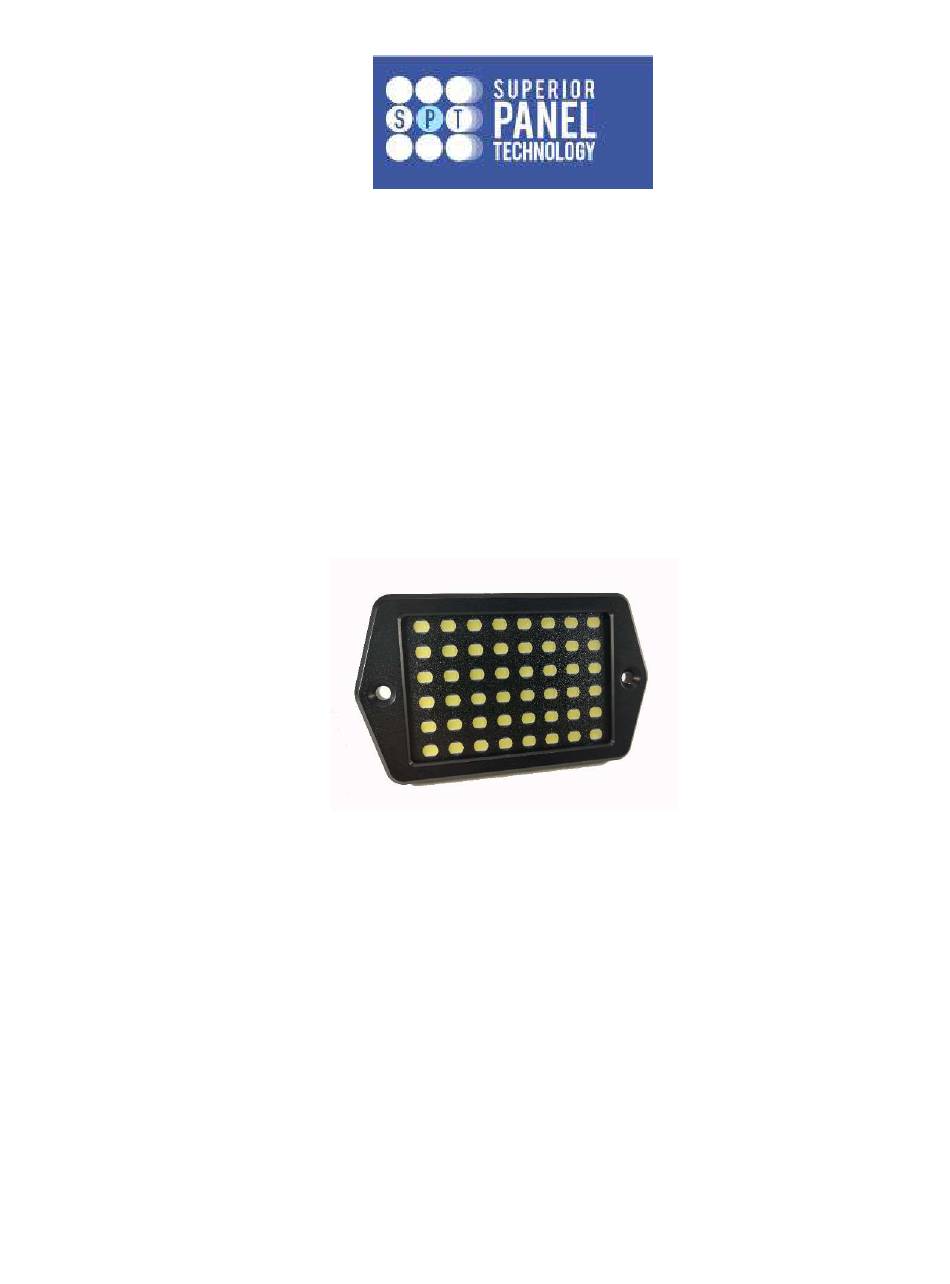

COBB LED DOME LIGHT
P/N – SPTSDLB/SPTSDLC
14 volt
FOREWORD
Superior Panel Technology
PO Box 1562 Chesterfield, VA 23832
Phone: 562-776-9494
Copyright 2019
1
Manual Number SPTSDL-1
Advertisement
Table of Contents
Summary of Contents for SPT SUPERDOME
- Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS Manual P/N SPTSDL-1 SPT SUPER DOME COBB LED DOME LIGHT P/N – SPTSDLB/SPTSDLC 14 volt SPT SUPERDOME By Superior Panel Technology FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment.
- Page 2 REVISION HISTORY Rev. Date Approved Detail 06/10/19 Initial release. TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES SECTION 2 PRE-INSTALLATION CONSID COOLING EQUIPMENT LOCATION ROUTING OF CABLES SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1...

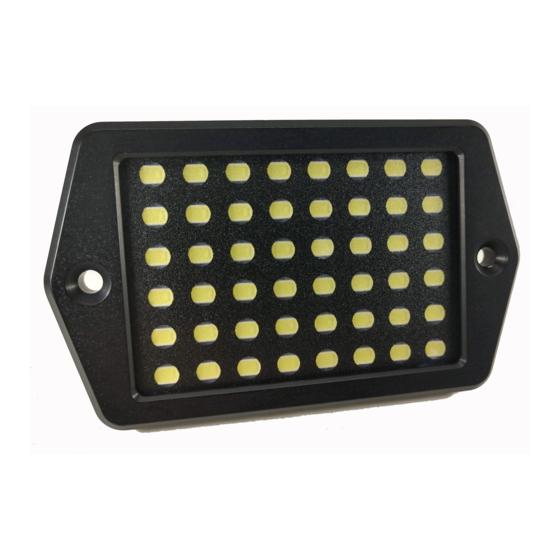

- Page 3 SECTION 1 GENERAL DESCRIPTION INTRODUCTION The SPTSDLB OR SPTSDLC here on out will be referred to as the “SPTSDL”. This is the same exact unit with the exception of the color anodizing of the front face plate (B=BLACK, C=CLEAR). The SPTSDL Is an ultra-bright Dome light that can be used in a variety of aircraft locations: Cabin, Baggage, Door entry, etc.
- Page 4 Bring a second wire from the 14V DC power source (normally the output from SPT's PWM dimmer-yellow screw) and connect to the red wire. Refer to Section 2: Pre- Installation Considerations, for routing precautions.
- Page 5 9/64” holes mounting holes. This is easily preformed by holding the front face of the SuperDome toward the panel to be drilled. Then simply mark the center point between the two mounting holes to locate the center point for the 1.5” holesaw. The depth of the 1.5”...
- Page 6 SECTION 5 WARRANTY WARRANTY SPT will repair or replace at its expense and at its option any SPT Super Dome light manufactured by SPT which in the normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to SPT along with proof of purchase of the product within a 2 year period and provides SPT with reasonable opportunity to verify the alleged defect by inspection.
