Summary of Contents for Leader MULTIFLOW CMFA-0530-LI

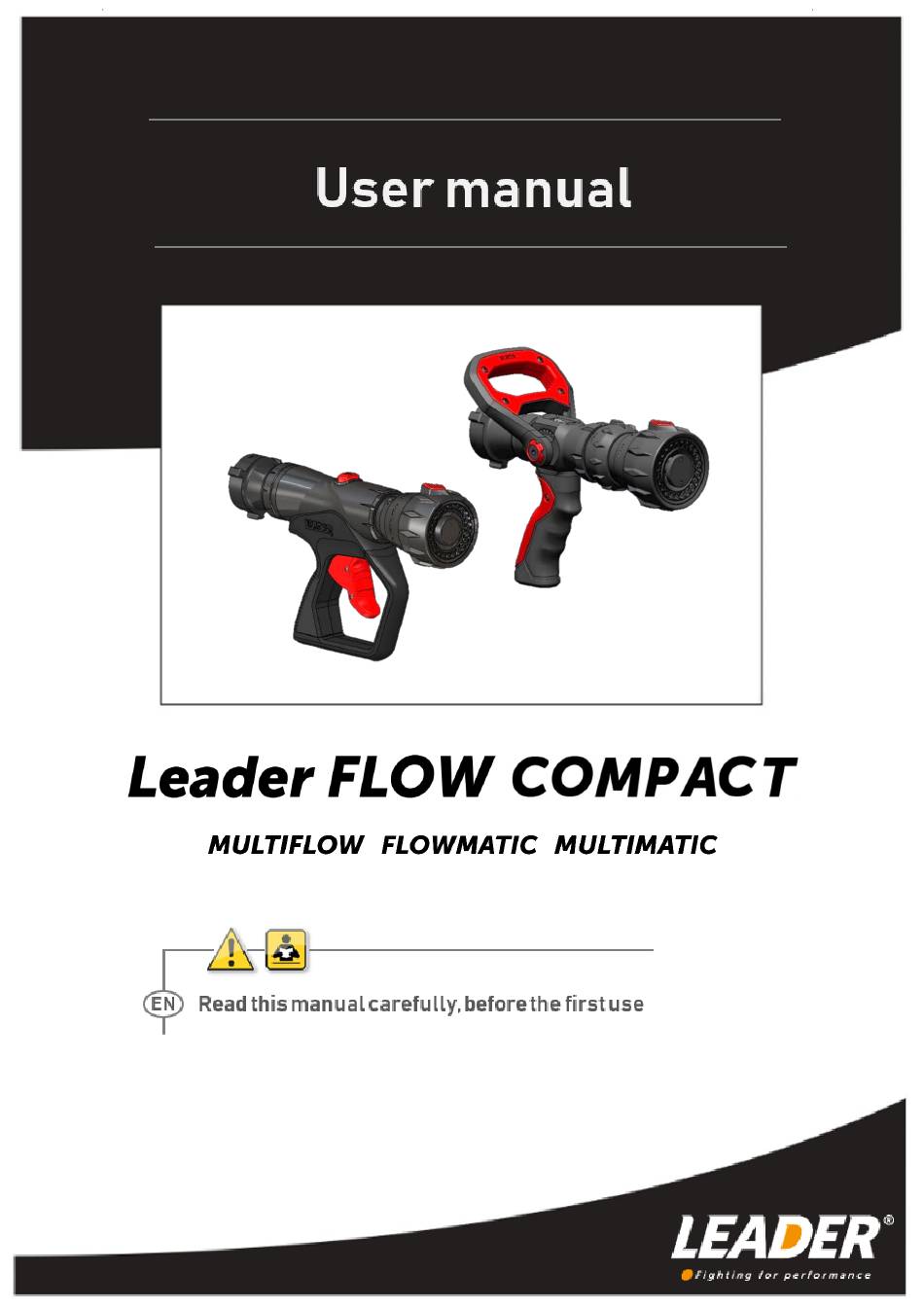

- Page 2 Product reference MULTIFLOW FLOWMATIC MULTIMATIC See models on pages 13/14/15...
- Page 3 Any disassembly or repair must be performed by either LEADER or an approved dealer. This manual presents the simplicity and ease of use of the nozzle. In order to improve this manual LEADER remains open to your suggestions. Please do not hesitate to contact us.
-
Page 4: Table Of Contents
1 INTRODUCTION 2 SAFETY INSTRUCTIONS 3 REFERENCE 4 DESCRIPTION 5 FEATURES 5.1 General information 5.2 MULTIFLOW model 5.3 FLOWMATIC model 5.4 MULTIMATIC Model 6 REQUIREMENT 7 USING THE DEVICE 7.1 Implementing the standard handle nozzle 7.2 Implementing the TriggerFlow nozzle 8 FLOW RATE DIAGRAM - PRESSURE 8.1 MULTIFLOW model 8.2 FLOWMATIC model... -
Page 5: Introduction
1 INTRODUCTION This nozzle meets your needs by its ease of use and efficiency. This nozzle allows you to select its type of fitting, body, head, and colour. ▪ The choice between several head types: ▪ MULTIFLOW: nozzle with flow selection. ▪... -
Page 6: Safety Instructions
▪ Do not exceed 40 bars of input pressure. ▪ Only qualified and trained personnel should operate or repair this device. ▪ Always replace a defective part by an original part provided by LEADER. ▪ The device should not be disassembled when pressurised. -
Page 7: Reference
3 REFERENCE C FM A-0 5 38-RI B 30: 150 lpm 31: 235 lpm 32: 400 lpm MF: MultiFlow 33: 40 gpm 34: 60 gpm 35: 125 gpm 52: 470 lpm@7b 36: Ring – 150 lpm@6b 37: No ring – 150 lpm@6b R: Red LI: 1”... -
Page 8: Description
4 DESCRIPTION Standard handle nozzle Hard anodized Grab handle aluminium body Tactile detection of maximum flow Jet Attack tactile flow detection Rotating input connector Machined aluminium gear teeth. Spray selector head with shock Handle grip protection Flow selector ring TriggerFlow nozzle Hard anodized aluminium body Opening lock button... - Page 9 ➢ ALUMINIUM body with a Standard handle: ▪ AGS T5 aluminium alloy construction. ▪ Protection against mechanical and chemical attack by 50μ hard anodization and Teflon impregnation. ▪ Protection against shocks thanks to its heat and cold resistant polyurethane head sheath. Excellent thermal insulation. ▪...
- Page 10 ➢ Valve: ▪ Quick opening and closing with the Standard handle. ▪ Quick opening and closing with the Trigger handle. ➢ Nominal Pressure: ▪ 40 bars. ➢ Protection filter: ▪ Protects against debris at the inlet connection. NB: 1" British standard pipe (BSP) connectors are not equipped with a filter. ➢...
- Page 11 ➢ Adjustable spray: ▪ The rotation of the head ring makes it possible to switch from a wide cone-like spray at 130° wide, gradually reduced to a 50° narrow spray then up to a full spray position. ▪ Tactile and visual detection enable determining the shape of the selected spray. ▪...
-
Page 12: Features
▪ LEADER spray gun handles can be equipped with a multi-expansion foam generator (Low and Medium). 5 FEATURES 5.1 General information • Manufacturer: LEADER • Size: COMPACT • Operation under nominal pressure: PN 40 • Type of spray: Diffusion alternating between hollow cone / solid cone •... -
Page 13: Multiflow Model
5.2 MULTIFLOW model Type is according to Annex A of EN 15182-1: Type 3. Type Mass Length Width Gear according to Reference Flow rates Body Inlet teeth EN 15182 kg (±0.2) L (mm) l (mm) h (mm) CMFA-0530-LI 1" F BSP 1.74 Aluminium Fixed... -
Page 14: Flowmatic Model
5.3 FLOWMATIC model Type is according to Annex A of EN 15182-1: Type 4.1. Type Mass Length Width Gear according to Reference Flow rates Body Inlet teeth EN 15182 kg (±0.2) L (mm) l (mm) h (mm) CFMA-0536-LI Aluminium 1" F BSP 1.75 Fixed CFMA-0536-EI... -
Page 15: Multimatic Model
5.4 MULTIMATIC Model Type is according to Annex A of EN 15182-1: Type 4.2 Type Mass Length Width according to Reference Flow rates Body Gear teeth Inlet EN 15182 kg (±0.2) L (mm) l (mm) h (mm) 0- 125 gpm CMMA-0545-TI Aluminium Fixed... -
Page 16: Requirement
6 REQUIREMENT Standards Post Test results EN 15182-2 /4.2.1 Dimensions (mm). See previous table EN 15182-2 /4.2.1 Mass (kg). See previous table EN 15182-2 /4.2.2 Torque required to operate the handle. 2 N.m EN 15182-2 /4.2.2 Torque required to operate the flow control ring. 2.5 N.m EN 15182-2 /4.2.2 Torque required to operate the spray adjustment ring. -
Page 17: Using The Device
7 USING THE NOZZLE 7.1 Implementing the standard handle nozzle A/ Handle in closed position. B/ Connect the inlet fitting to an appropriately sized supply hose. C/ Turn on the pressure while firmly holding the device by the grip handle. ... -
Page 18: Implementing The Triggerflow Nozzle
7.2 Implementing the TriggerFlow nozzle A/ Connect the inlet fitting to an appropriately sized supply hose. B/ Turn on the pressure while firmly holding the device by the grip handle. C/ Select the desired spray type on the head. Tactile detection indicates the attack spray. ... -
Page 19: Flow Rate Diagram - Pressure
8 FLOW RATE DIAGRAM - PRESSURE Range in meters at the indicated pressure. Range in feet at the indicated pressure. 128 ft 8.1 MULTIFLOW model... -
Page 20: Flowmatic Model
8.2 FLOWMATIC model... -
Page 21: Maintenance
This task can be carried out at LEADER's workshops. 10 EXPLODED VIEW To locate and identify the parts of your device, please contact us and we will send you the exploded views. -
Page 22: Warranty
11 WARRANTY This LEADER spray gun comes with a 5-year warranty on parts and labour from the date of purchase, excluding transportation and travel expenses. Normal wear parts are excluded from this warranty. This warranty is specifically limited to replacing or repairing the equipment or its parts that, after examination, prove to be defective for causes attributable to LEADER. - Page 24 Package leaflet code : COMPACT.00.ZN1.2.EN.1...
