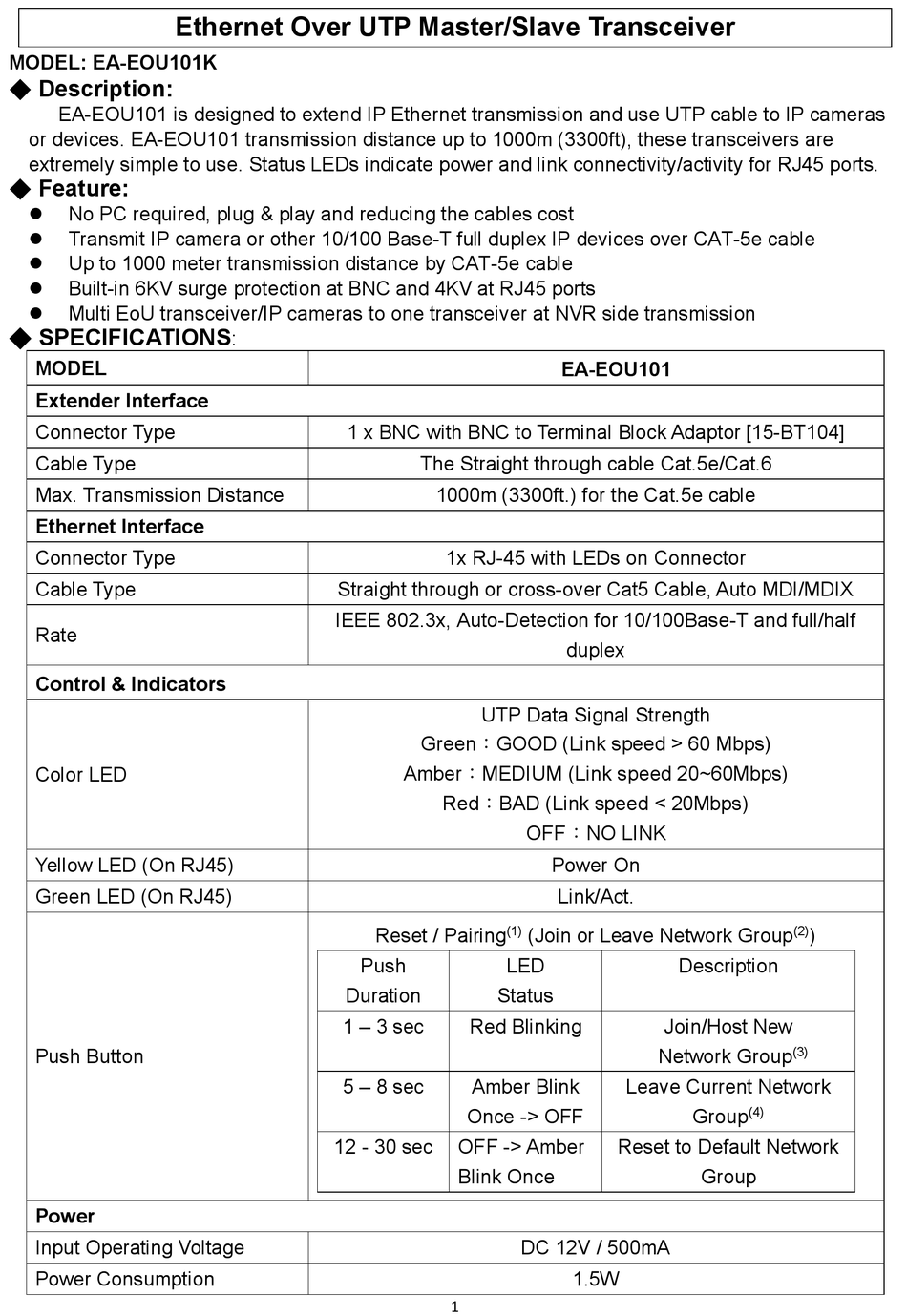

COP EA-EOU101K Instructions

Ethernet Over UTP Master/Slave Transceiver
MODEL: EA-EOU101K

◆ Description:

EA-EOU101 is designed to extend IP Ethernet transmission and use UTP cable to IP cameras
or devices. EA-EOU101 transmission distance up to 1000m (3300ft), these transceivers are
extremely simple to use. Status LEDs indicate power and link connectivity/activity for RJ45 ports.

◆ Feature:


No PC required, plug & play and reducing the cables cost

Transmit IP camera or other 10/100 Base-T full duplex IP devices over CAT-5e cable

Up to 1000 meter transmission distance by CAT-5e cable

Built-in 6KV surge protection at BNC and 4KV at RJ45 ports

Multi EoU transceiver/IP cameras to one transceiver at NVR side transmission

◆ SPECIFICATIONS

MODEL
Extender Interface
Connector Type
Cable Type
Max. Transmission Distance
Ethernet Interface
Connector Type
Cable Type
Rate
Control & Indicators
Color LED
Yellow LED (On RJ45)
Green LED (On RJ45)
Push Button
Power
Input Operating Voltage
Power Consumption
:
1 x BNC with BNC to Terminal Block Adaptor [15-BT104]
Straight through or cross-over Cat5 Cable, Auto MDI/MDIX
IEEE 802.3x, Auto-Detection for 10/100Base-T and full/half
Reset / Pairing
Push
Duration
1 – 3 sec
5 – 8 sec
12 - 30 sec
EA-EOU101
The Straight through cable Cat.5e/Cat.6
1000m (3300ft.) for the Cat.5e cable
1x RJ-45 with LEDs on Connector
duplex
UTP Data Signal Strength
Green：GOOD (Link speed > 60 Mbps)
Amber：MEDIUM (Link speed 20~60Mbps)
Red：BAD (Link speed < 20Mbps)
OFF：NO LINK
Power On
Link/Act.
(1)
(Join or Leave Network Group
LED
Status
Red Blinking
Amber Blink
Once -> OFF
OFF -> Amber
Blink Once
DC 12V / 500mA
1.5W
1
Description
Join/Host New
Network Group
Leave Current Network
(4)
Group
Reset to Default Network
Group
(2)
)
(3)
