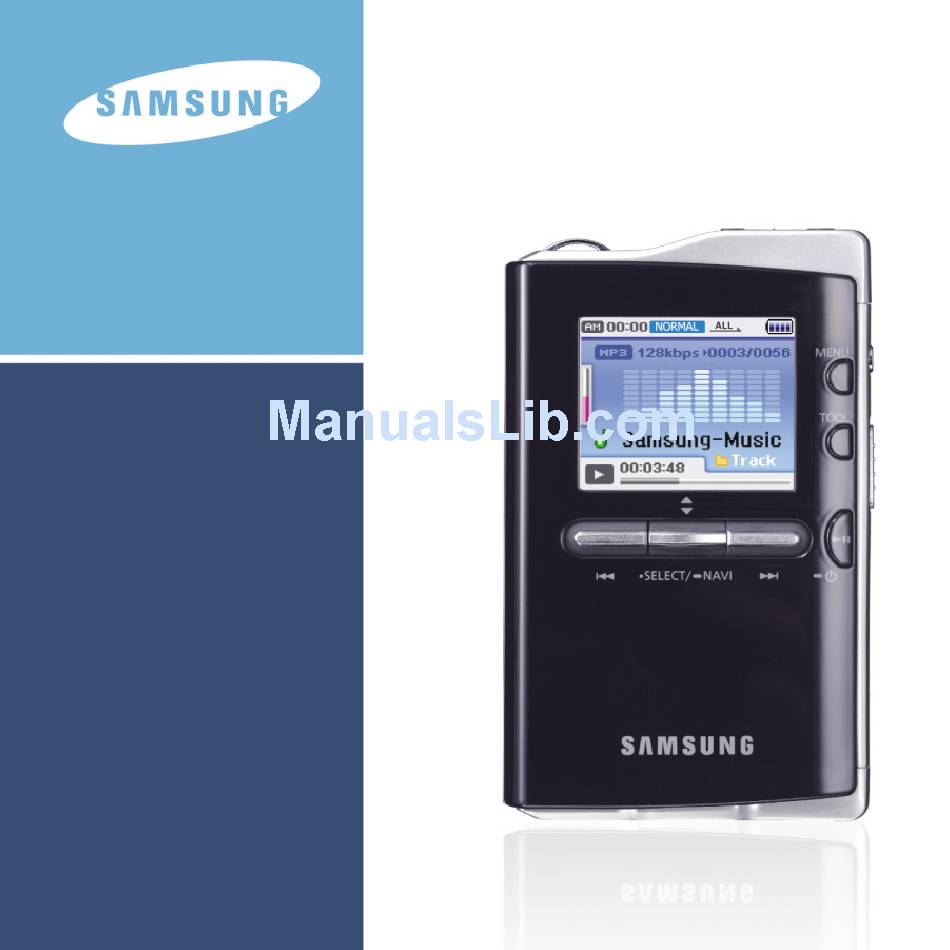

Samsung YHJ70JLBXAC Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung YHJ70JLBXAC

Summary of Contents for Samsung YHJ70JLBXAC

  • Page 2: Features

    Mass Storage Device Support You can use the built-in hard drive to store your entire music library, plus use it as an external drive for your PC to store other data files. MP3, WMA, Audio ASF and Ogg Playback Your player supports playback of MP3, WMA, Audio ASF and Ogg.
  • Page 3 Game Support You can enjoy games such as Tetris, Omok and Othello. Built-in Rechargeable Li-ion Battery The built-in rechargeable lithium battery provides up to 25 hours of music and 5 hours and 30 minutes of video files. Playback Speed Control Function You can adjust the playback speed of music or voice files.

  • Page 4: Table Of Contents

    Display ...12 Chapter 2 Connection to Computer Connecting the player to your PC ...13 ...13 Installing Software Connecting the player to your PC with a ...15 USB cable Using Windows Media Player 10...16 Downloading Music Files Using the player as a Storage Device ...18 Uploading Recorded Files ...19...
  • Page 5 Chapter 3 Using Your Player Setting Main Functions in Text...44 Bookmark ...44 Go to page...45 Page Scroll Type ...46 Auto Scroll ...46 Viewing Image Files...47 Viewing Video Files ...48 Using USB Host...49 Connecting an External Device...49 Transferring Files from External Device to the Player ...50...

  • Page 6: Safety Instructions

    Do not try to disassemble and repair the device yourself. Please be aware that we disclaim all responsibility for damage from loss of saved or recorded data due to breakdown, repair or other causes. Do not apply excessive pressure on the device.

  • Page 7: Environmental Information

    Do not turn up the volume too high. Doctors warn against prolonged exposure to high volume. Stop using the device or turn the volume down if you have ringing in your ears. Take care so that the earphone cable is not caught by your arm or other objects while walking or exercising. Ambient operating conditions Ambient temperature : 5°C ~ 35°C (41°F ~ 95°F)

  • Page 8: Battery Charger Safety

    - Use the charger away from water sources to avoid fire or electric shock. - To avoid electric shock, use the charger only with a power outlet that matches the shape of the converter's plug.

  • Page 9: Charging The Battery

    - The rechargeable battery is a consumable item and its capacity will decrease gradually. - To prolong the life of your battery, use the fully charged battery until it is completely discharged, and then fully charge it again before use.

  • Page 10: Components

    YH-J70J LB/LW Built-in memory 30GB The capacity of the useable built-in memory is less than indicated as the internal firmware uses a part of the memory as well. The appearance of the accessories shown is subject to change for product improvement...

  • Page 11: Location Of Controls

    [Back Side] RESET Hole - Reset the player by pressing the RESET hole using a pointed object such as a safety clip. Location of Controls LINE IN Jack Earphone Jack Display MENU button TOOL button Power On/Off Play/Pause button Skip/Search Forward button...

  • Page 12: Display

    Display EQ/DNSe Indicator Volume Indicator Play/Pause Indicator Play Time Indicator - The screen pictures are for illustration purposes only. The actual screen may differ. Play Mode Indicator Battery remaining indicator Song number display Current Track Title Progress Indicator...

  • Page 13: Connecting The Player To Your Pc

    CD-ROM drive (double speed or greater) USB port (2.0) supported DirectX 9.0 or above. - Log into your PC as an administrator (Main User) and install the supplied software (Multimedia Studio) for Windows XP. You can change account information...
  • Page 14 Connecting the player to your PC Follow the instructions in the window to complete the installation.

  • Page 15: Connecting The Player To Your Pc With A Usb Cable

    Connecting the player to your PC with a USB cable Connect the USB cable to the USB port of the computer. Connect the other end of the USB cable to the USB cable connection port located at the bottom of the player.

  • Page 16: Using Windows Media Player 10

    Using Windows Media Player 10 - You can download MP3 and WMA files using Windows Media Player 10. - The files downloaded from WMP10 to the player, will be automatically saved in Music folder. Downloading Music Files Connect the player to your PC.
  • Page 17 Using Windows Media Player 10 When the [Sync] window appears, select the file you want to transfer to the player, drag and drop it to the left [Sync List] window. You can check the transferred file in the right window.

  • Page 18: Using The Player As A Storage Device

    Using the player as a Storage Device - You can easily download data files to the player using Windows Explorer and use it as a storage device to store data files. - You need to select PC connection mode before using the storage device.

  • Page 19: Uploading Recorded Files

    - You can upload files recorded in the player to your PC. Connect the player to PC. Right click on the Start button, then choose Explore to Open Windows Explorer on Select [Samsung YH-J70J] The recorded files are displayed. Drag the recorded files to a desired folder on your PC.

  • Page 20: Installing Multimedia Studio

    Installing Multimedia Studio Multimedia Studio is a program that supports image editing, video playback and format conversion, and multimedia album creation. Installing Multimedia Studio Software Insert the installation CD into the CD-ROM drive. Select [Install Multimedia Studio]. Select language...
  • Page 21 Installing Multimedia Studio Follow the instructions in the window to complete the installation. Continued...

  • Page 22: Using Multimedia Studio

    Press the [Edit Img] button. From the [Picture editor] window, you can perform functions like editing wallpaper images, editing layers, inserting clip art, making frames and other various editing functions. - Refer to Multimedia Studio [Help] (see page 30) for more detailed information.

  • Page 23: Sending Images

    [Export images to device] at the top of Multimedia Studio. Select Samsung YH-J70J from the [Select device] screen, and then press the [OK] button. Select the folder to save from the folder selection screen, and then press the [OK] button. Using Multimedia Studio...
  • Page 24 - Path refers to the location or folder where the converted image(s) will be saved to on your PC. - Image files saved in the player can be deleted by selecting [File] - Refer to [Help] for more detailed information [Delete images from device].

  • Page 25: Sending Videos

    Select PC connection mode before transferring image files or video files through Multimedia Studio. Press the MENU button and select [Settings] Mode] [MTP] from the menu. Sending Videos Connect the player to PC. Select the video(s) to send to the player.
  • Page 26 - If you have a video file (eg. Divx, Xvid, .avi, .mpg etc.) on your computer and you cannot view it, you will not be able to convert it to an svi and play it on the YH-J70J. You'll first need to find the proper codec online, then install it in your computer.

  • Page 27: Capturing Video

    The Multimedia Studio software allows you to capture a still frame from a video file and save it as a picture on your PC, then transfer it to the YH-J70J (see page 23). Capturing Video Press the [Capture] button at the top of the Multimedia Studio menu.
  • Page 28 Using Multimedia Studio Press the [Capture] button and then press the [Capture] button when the image you want to capture appears. The selected image will be captured. Press the [Save] button. Save This captured image: saves the currently select- ed image.
  • Page 29 Using Multimedia Studio Select the directory to save to from the [Save As] window and press the [Save] button. The selected image will be saved. - Video playback and conversion codecs are not provided. It is recommended that you use codecs of latest versions.

  • Page 30: To View Help On Multimedia Studio

    Using Multimedia Studio To View Help on Multimedia Studio Run Multimedia Studio and press the Help button at the top of the screen. Help will be displayed.

  • Page 31: Playing Music

    Make sure the player is fully charged and the earphones are connected. Power On: Press and hold the √» button to turn on the power. Power Off: Press and hold the √» button to turn off the power. Playing Music Press and hold the √»...

  • Page 32: Hold Feature

    All buttons on the player will be disabled. When you activate the HOLD switch, a " Starting Point While playing a music file, press the A B button at the beginning of the loop you want to set. appears in the display.

  • Page 33: Searching For Music/Voice Files

    - VBR(Variable Bit Rate) file: A file that constantly changes the compression rate according to the type - When playing a VBR file, you cannot move to and play the previous track even if you press the button within 5 seconds after playback starts.

  • Page 34: Setting Main Functions In Music Mode

    Push the NAVI button Up/Down to select [Add to Favorites], then press the SELECT button. Push the NAVI button Up/Down to select the list you want to save to (1-10), then press the SELECT button. The selected file will be added to the list.

  • Page 35: Dnse

    - Folder: To play the current folder one time. - All: To play all the files in order one time. Repeat: Press the SELECT button at [Repeat]. - One : To repeat one file. - Folder : To repeat the current folder. - All : To repeat all files. Shuffle : Press the SELECT button at [Shuffle].

  • Page 36: Play Speed

    Play Speed, then press the SELECT button. 0.8x 1.2x 1.4x The larger the number, the faster the speed of play, and the smaller the number, the slower the speed of play. File Info. Press the TOOL button while the music is playing or has stopped.

  • Page 37: Menu Options

    Press the MENU button to switch to Menu mode. Use the SELECT button to select the menu item you want, and then briefly press the SELECT button. Music Photo/Video Music : To display the song currently playing. Navigation : To move to Navigation Mode and browse files and folders.

  • Page 38: Recording Voice

    [VOICE001] folder. Up to 999 files can be saved in a record folder. Press the √» button to play the recorded file. -REC:Start -TOOL:Exit - Even if you set the sampling and bit rates higher, voice recording will default to 44.1KHz. [File Search] [RECORDED] V001.mp3...

  • Page 39: Recording Mp3S

    - Do not disconnect the Line cable during Recording. - If the battery is not sufficiently charged, the player will not completely record the file. - Adjust the volume of the external audio source to a suitable level before recording.

  • Page 40: Setting Main Functions In Navigation

    Music Library : You can search for a music file by Artist, Album, Genre and Track. Playlist : You can search for a file specified as a Favorite in the player or PC Playlist transmitted through Windows Media Player 10.

  • Page 41: Go To Top

    Push the NAVI button Up/Down to select [Line Up/Down] or [Page Up/Down], then press the SELECT button. Line Up/Down: Slide the SELECT button up or down to move line by line from the file search display. Page Up/Down: Slide the SELECT button up or down to move by page from the file search display.

  • Page 42: Add To Favorites

    Push the NAVI button Up/Down to select [Add to Favorites], then press the SELECT button. Push the NAVI button Up/Down to select the list you want to save to (1-10), then press the SELECT button. The selected file will be added to the list.

  • Page 43: Viewing Text

    : Volume Control. : Move to Previous/Next Page. - Text File Selection: Press and hold the SELECT button to move to navigation while a music file is playing. Move to the desired text file, and then press the SELECT button.

  • Page 44: Setting Main Functions In Text

    Add : Bookmark is created on the current page. Move : Move to a bookmark within the text file. TOOL Bookmark Go to page Move Page Scroll Type Auto Scroll - You can create 1 bookmark within a file or 5 bookmarks within a directory.

  • Page 45: Go To Page

    SELECT button. To select the desired page, press the Press the NAVI up or down button to select a number in the chosen Input Box (this sets the page number). Press SELECT and that page will be accessed.

  • Page 46: Page Scroll Type

    Auto scroll time, then press the SELECT button. Off, 1, 3, 5 or 10 seconds is available. The page automatically scrolls after the time you set elapses. button moves the text by 1 line. button moves the text by 1 page.

  • Page 47: Viewing Image Files

    [On] in Image Tool screen to view saved image files in a slide show. Photo/Video - The optimal image size for the unit is 160X128. If the image size is too large, use Multimedia Studio to adjust the size and resend it to the player. (see page 24).

  • Page 48: Viewing Video Files

    TOOL: Check video title, progress time, total time Photo/Video - The player only supports video files which have an .svi extension. To view video files in other formats, convert the files using Multimedia Studio and then transfer the converted files into the player.

  • Page 49: Using Usb Host

    128MB. The external device should have FAT 16/32 file system. Only devices that appear as a Removable Disc on your PC can be used with this feature. Connect the player to the USB host adaptor.

  • Page 50: Transferring Files From External Device To The Player

    SELECT : To move to a sub folder, or select a file. Press the TOOL button and select [Select All] to select all files stored in the external device. Press the TOOL button to move to the USB Tool screen and then select [Cut] or [Copy].

  • Page 51: Using Usb Host

    Move to a folder into which the file of the external device is to be copied. Select the TOOL button to move to the USB Tool screen and then select the [Paste]. The selected file is transferred to the player. Do not disconnect the player or the external device while transferring the file.

  • Page 52: Yh-J70J Usb Host Compatible

    YH-J70J USB HOST Compatible You can transfer images from the cameras listed below to your YH-J70J for storage. The following is a list of cameras that are compatible with YH-J70J USB Host function. This list may change with firmware upgrade.

  • Page 53: Playing Games

    [Game Method] - The objective of the game is to clear the screen. E.g. At level 1, if you select the stone in the center, 4 directions are reversed and the screen is cleared. ,SELECT: Move Up, Down and Select...
  • Page 54 START HELP EXIT [Game Method] - When you place your stones in horizontal, vertical or diagonal direction, the stones inside become yours. The side with the most stones after the game wins. ,SELECT: Move Up, Down and Select : Move Left and Right...

  • Page 55: Omok

    Press [START] to start game. Press [START] to start game. [Game Method] - The side with 5 straight stones in a horizontal, vertical or diagonal row wins the game. ,SELECT: Move Up, Down and Select : Move Left and Right...

  • Page 56: Tetris

    EXIT Select level using the SELECT button when level screen appears. [Game Method] - The objective of the game is to eliminate rows by stacking various shaped blocks. - SELECT : Change block shapes : Move Left and Right : Pull down...

  • Page 57: Chips

    Select level using the SELECT button when level screen appears. [Game Method] - The objective of the game is to reach the final gate by moving obstacles and acquiring keys and items. You can pass the gate only when you get the key, and you can proceed to the next level only after collecting the required number of items at the current level.

  • Page 58: Setting The Advanced Functions

    Setting the Advanced Functions Press the MENU button to move to menu, then select Settings. Settings In Settings, move to the function you want and press the SELECT button to select. Press the button to move to the previous menu.

  • Page 59: Screen Display Settings

    Press the MENU button to move to menu, and then select [Settings] Scroll Speed Use the SELECT button to set the scroll speed to adjust the speed of the track title movement. Scroll speed can be set to 0.5x, 1x, 1.5x or 2x.

  • Page 60: Lcd Off Time

    Use the SELECT button to set the display type of the screen. Graphic EQ display can be set to Graphic EQ1, 2 or Tag Info. If you select the Tag info, tag information included in the music file is dis- played on the screen.

  • Page 61: Sound Effect Settings

    Bass Enhance from 0 to 3. SELECT : Move Up, Down and Select : Move Level After setting is complete, move to OK and then press the SELECT button. Street Mode Use the SELECT button to select Street Mode On or Off.

  • Page 62: Auto Eq

    Auto EQ User the SELECT button to select Automatic EQ On/Off. On : The Jazz, Classic, Pop or Rock mode EQ is automatically selected according to the music file's ID3 tag information. Off : Music file is played in the current EQ mode chosen.

  • Page 63: Time/Schedule Settings

    Press the MENU button to move to menu, and then select [Settings] Memo - Use the Memo feature to create memos and save them on your player. Select [New Memo] when memo screen appears. Enter desired contents. Input Procedure Move to a desired key by using buttons and press the SELECT button.

  • Page 64: Calendar

    Clear : Delete the whole memo. After typing is complete, move to OK and then press the SELECT button. - Move to a memo to delete in the Select Memo list screen and press the TOOL button. Then, select [Delete] to delete the memo. Calendar - Allows you to keep track of the date.

  • Page 65: Sleep

    After setting is complete, move to OK and then press the SELECT button. Date/Time You can set the current date and time. Use the NAVI button to move to the Year, Month or Day, and then select the date using the button.

  • Page 66: Recording Settings

    Music Mode when there is no sound for over 2 seconds during recording. If Auto Sync Time is set to Off, recording keeps going even if there is no sound, and then it is saved as one file. [Record].

  • Page 67: System Settings

    Singaporean - What is an ID3 Tag? This is a part of the MP3 file which carries information relevant to the file, such as the title, artist, album, year, genre and a comment field. - Supported languages can be changed or added.

  • Page 68: Resume

    MTP + Charge: Connection mode that enables the user to charge the player while transferring files. - In some PCs, you may not be able to connect the player in [MTP+ Charge] mode. In this case, connect the player in [MTP] mode. Resume...

  • Page 69: Auto Off Time

    Use the SELECT button to select the desired auto off time. After 30sec After 1min If no button is pressed after play stops, the player will automatically turn off after the time you set. Sort Use the SELECT button to select the desired sort type.

  • Page 70: Menu Table

    Scroll Speed 3D User Set Backlight Street Mode Lcd Off Time Text Set User EQ Set Graphic EQ Use the SELECT button to move and select. MENU ‚ · ” ¨ › ‚ Ø Text Photo/Video USB Host Time/Schedule Memo...

  • Page 71: Troubleshooting

    I cannot download files. Check the battery's power level. Check the USB connection between the player and your PC. The player will be disconnected if you restart the PC while the player is connected. Try reconnecting the player. The Backlight is off.
  • Page 72 Troubleshooting The playback time displayed during playback does not seem right. Check if you are playing a VBR (Variable Bit Rate) file. VBR files are only partially supported. The buttons on the player do not work. Make sure the Hold switch is in the off position.
  • Page 73 Connect the player to your PC. Insert the installation CD into the CD-ROM drive. Select [Contents] and drag-and-drop it into [Samsung YH-J70J] After disconnecting USB Cable, turn off the player. Press and hold the √» button to turn on the player. Troubleshooting [J70.fnt]...

  • Page 74: Specifications

    No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.
  • Page 75 Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatical- ly be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.
  • Page 76 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Samsung Electronics Canada Inc., Customer Service 1-800-SAMSUNG (7267864) www.samsung.com/ca...

This manual is also suitable for:

Yh-j70j
