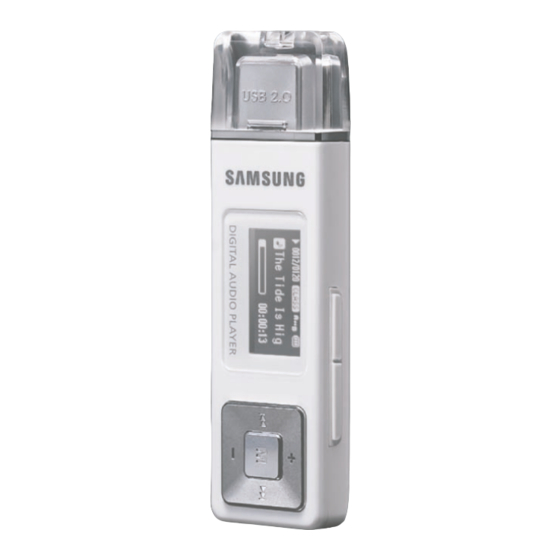

- Page 1 YP-U2J...
-
Page 2: Safety Precautions
Using the earphone or headphone for an extended time can cause serious damage to your hearing. If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may be (an ordinary conversation is 50 to 60 db and the noise level on a busy road is approximately 80 db). -
Page 3: Use
CAUTION Failure to follow all instructions lead to physical injuries or damage to the product. Product Use Take care to avoid product malfunc- tion and physical damage. When wearing the product around your neck, take care not to exert excessive force on the neck string. -
Page 4: Table Of Contents
Chapter 2. Importing Music Files Importing Music Files ...18 Connecting to your PC ...18 Installing Windows Media Player10...19 Transferring Music to your Player ...20 Chapter 3. Listening to Music/FM Radio Listening to Music ...23 Listening to Music...23 Transferring Playlists from WMP10 ...26 To Play a Playlist ...28... -
Page 5: Chapter 4. Settings
Chapter 4. Settings Settings ...44 Setting Music ...44 Setting Time...46 Setting the Display...47 Setting Language ...48 Setting the system ...49 Chapter 5. Troubleshooting System Reset ...52 To Upgrade Firmware ...53 Troubleshooting ...55 Chapter 6. Appendix Menu Tree ...58 Product Specifications ...59... - Page 6 Chapter 1. Preparation Checking the Product and Accessories ...7 Checking the Accessories ...7 Components ...8 Screen Display Information ...10 Button Functions ...11 Charging the battery ...12 Basic Use ...13...
-
Page 7: Checking The Product And Accessories
Checking the Product and Accessories Checking the Accessories Player Design of accessories is subject to change for the purpose of improvement, without notice. The following diagrams are a guide and may differ slightly from the actual product appearance. Earphones Installation CD... -
Page 8: Components
Checking the Product and Accessories Components Front, Right Side and Top Neck String Hole USB Cover USB Connection Plug LED Lighting Screen Display User/Recording Button Power & Play/Pause Button Move Track/Quick Search Button Volume Control Button MENU/Select Button... - Page 9 Bottom Earphone Connection Port Reset Button Microphone Hold Switch Earphone Connection √ Left Side Earphones...
-
Page 10: Screen Display Information
Checking the Product and Accessories Screen Display Information Music FM Radio Play/Pause/Stop indicator Current Music Number/ Total Number indicator Sound Mode indicator Repeat Play indicator Battery indicator Music Title indicator Play Status Bar Play Time indicator FM Reception Indicator Channel Number Indicator Mono/Stereo &... -
Page 11: Button Functions
Long press to move to the menu screen. Short press to move to the navigation list. Long press to quickly scan tracks. Short press to move to the previous track or play the current track from the beginning. Long press to quickly scan tracks. -
Page 12: Charging The Battery
Battery life naturally shortens slowly over time as it is a consumable item. The USB connection may be unstable if you are using a USB hub. Directly connect to the USB port on your PC. For stable charging, run WMP10 after connecting to your PC. -
Page 13: Basic Use
Basic Use Turning the Power On & Off Power is automatically turned off when none of the buttons have been pressed for a preset period of time (Default: 10 seconds) in the pause mode. NOTE Playing Music Turning the Power On Press and hold the [ Power is turned on. -
Page 14: Volume Control
Press the [ + , - ] button on the front of the player. The Volume Status Bar will appear. Press the [ + ] button to increase the volume or the [ – ] button to decrease it. In Hold mode, all buttons are disabled. This function is useful when you are walking or jogging. - Page 15 <Favorite>. <Recorded> : Allows you to listen to the voice recording. A file without an ID3 Tag (music information) is displayed as [Unknown]. NOTE Press and hold the [ ] button to move to the menu screen.
- Page 16 Basic Use (Continued) Reset Function If a product malfunction occurs, you can re-initialize the system by pressing the Reset button. √ P52 Reset Button...
-
Page 17: Chapter 2. Importing Music Files
Chapter 2. Importing Music Files Importing Music Files ...18 Connecting to your PC ...18 Installing Windows Media Player10...19 Transferring Music to your Player ...20... -
Page 18: Importing Music Files
Importing Music Files Connecting to your PC Remove the USB Cover then connect the USB Connection Plug to the USB port ( on your PC. All functions are disabled during connection. PC Requirements For use in conjunction with a PC, the following is required:... -
Page 19: Installing Windows Media Player10
You cannot transfer files to the player when Windows Media Player 10 is not installed on your PC. To install Windows Media Player 10 on your PC, insert the installation CD into the CD-ROM drive of your PC and select the [System Check]. -
Page 20: Transferring Music To Your Player
Importing Music Files Transferring Music to your Player You can download MP3,WMA and secure WMA files using Windows Media Player 10. The files downloaded from WMP10 to the player, will be automatically saved in the Navigation. Connect the player to PC. - Page 21 [Start Sync] at the top of the screen. [Synchronized to Device] message will appear on the left window. The downloaded files will appear in the right window under Music folder. You can check the transferred...
-
Page 22: Chapter 3. Listening To Music/Fm Radio
Before you start! Transfer the music file of your choice from your PC to the player. Chapter 3. Listening to Music/FM Radio Listening to Music ...23 Listening to Music...23 Transferring Playlists from WMP10 ...26 To Play a Playlist ...28 To Play a Favorite...29 User Button Custom Function ...31... -
Page 23: Listening To Music
Listening to Music Listening to Music Connect your earphones to the player and turn the power on and check Before you start! the battery status. To Pause Press and hold the [ ] button to move to the menu screen. - Page 24 The previous track will start playing. Press the [ √√l ] button. The next track will start playing. When playing VBR files, the previous track may not play even if you press the [ lœœ ] button within 5 seconds of the play. CAUTION Press the [ lœœ...
- Page 25 <Favorite>. <Recorded> : Allows you to listen to the voice recording. A file without an ID3 Tag (music information) is displayed as [Unknown]. NOTE E.g. Searching by Artist Press and hold the [ ] button to move to the Menu screen.
-
Page 26: Transferring Playlists From Wmp10
Listening to Music Transferring Playlists from WMP10 To transfer playlists from WMP10, click on “Sync Settings” in the WMP10 menu on your PC. Select <Synchronize device automatically>. Select the playlists you want to sync (transfer) to your player. - Page 27 Click on Start Sync in the WMP10 menu. The Playlists will be transferred to your player and will appear in the Playlist menu. √...
-
Page 28: To Play A Playlist
The <Playlist> folder list will appear. Press the [+, - ] button to select a folder of your choice and then press the [ Press the [+, - ] button to select a music file to play and then press the [ ] button. -
Page 29: To Play A Favorite
Press the [ ] button while a music is playing. The file list of the folder will appear. Press the [ lœœ , √√l , + , - ] buttons to add files to <Favorite> and then press the [ USER/ button. - Page 30 Press the [+, - ] button to select <Favorite> and then press the [ ] button. Press the [+, - ] button to select a music file to play and then press the [ The music will start playing. ] button.
-
Page 31: User Button Custom Function
Press the [ + , - ] button to select <User Button Mode> and then press the [ The User Button Mode menu will appear. Press the [ + , - ] button to select the desired user button mode and then press the [ <Repeat AB> : Sets section repeat. - Page 32 - When the [lœœ] or [√√l] button is pressed, moving to the previous or next track. NOTE - The starting point of the section repeat is set but the ending point is not set until the current track ends. This function enables you to listen to specific parts of a track repeatedly.
- Page 33 To use the DNSe button Set the User Button Mode to <DNSe> and press the [ USER/ DNSe mode changes in the following order each time the button is pressed <NORMAL> <ROCK> <HOUSE> <DANCE> <JAZZ> <BALLAD> <R&B> <CLASSICAL> <USER EQ> <3D USER>...
-
Page 34: Listening To Fm Radio
Listening to FM Radio Listening to FM Radio Before you start! Connect your earphones to the player and turn the power on and check the battery status. Press and hold the [ ] button to move to the menu screen. -
Page 35: Searching For Frequencies
] button to select Manual tuning Mode. The <PRESET> message will disappear from the screen display and go into manual mode. Press and hold the [ lœœ ] or [ √√l] button and then release. The frequencies are automatically searched. -
Page 36: Setting A Frequency
Up to 20 frequencies can be stored. Press and hold the [ ] button to move to the menu screen. Press the [ + , - ] button to select <Settings> and then press the [ ] button. The Settings menu appears. - Page 37 To cancel during setting To cancel during <Auto Preset> setting, press the [ lœœ ] or [ √√l] button. The auto preset setting is canceled and frequencies set up to then are stored. To set <Auto Preset> again after setting preset, existing frequencies are deleted entirely and you can reset from start.
- Page 38 ] button to select Manual tuning Mode. The <PRESET> message will disappear from the screen display and go into manual mode. Press the [ lœœ ] or [ √√l] button to search for frequencies to preset. Press the [ USER/ The <Save?>...
-
Page 39: To Delete Presets
Listening to FM Radio To Delete Presets Before you start! Follow the steps below to delete frequencies while listening to FM radio. Press the [ ] button and select <Preset Mode>. The <PRESET> message will appear on the screen display and go into the preset mode. -
Page 40: Setting Fm Radio
- Japan:Search for FM frequencies in 100 kHz increments between 76.0 MHz~108.0 MHz. - Other Countries:Search for FM frequencies in 50 kHz increments between 87.5 MHz~108.0 MHz. If you change the FM region, the previously stored radio frequencies are removed. - Page 41 Press the [ + , - ] button to select <FM Radio> and then press the [ ] button. The FM Radio menu appears. Press the [ + , - ] button to select <FM Search Level> and then press the [ ] button. The FM Search Level menu appears.
-
Page 42: Recording
To listen to saved recording files, use the Navigation (Search) function. √ Page 15. FM radio stations cannot be recorded. NOTE Do not place the microphone too close or too far away during recording, as this can affect the recording quality. CAUTION Voice recording does not perform properly when the battery is low. - Page 43 Chapter 4. Settings Settings ...44 Setting Music ...44 Setting Time...46 Setting the Display...47 Setting Language ...48 Setting the system ...49...
-
Page 44: Settings
- Press the [ ] button to select or save the menu. If there is no button operation for about 30 seconds in the Settings screen, settings will be canceled and you will be returned to the previous mode. You can set detailed settings for music playback. - Page 45 For a VBR file, the Skip Interval and Serach Speed may not be exact. NOTE What is DNSe? DNSe is a sound effect function for MP3 players developed by Samsung and adds a 3D surround sound effect to the music.
-
Page 46: Setting Time
Settings Setting Time You can set functions related to the Sleep Timer and Auto Power Off. Press and hold the [ menu screen. Press the [ + , - ] button to select <Settings> and then press the [ ] button. -
Page 47: Setting The Display
Settings Setting the Display <Scroll Speed> : Sets the scroll speed to adjust the speed of the track title movement. Select from <Slow> <Normal> and <Fast>. <Backlight Time> : Sets to automatically turn off the backlight after there is no button operation during the preset time. -
Page 48: Setting Language
What is ID3-Tag? NOTE This is what is attached to an MP3 to carry information relevant to the file, such as the title, artist, album, year, genre and a comment field. When you have made a change of ID-Tag language setting, turn off the product and restart it so the change can be applied. -
Page 49: Setting The System
Press and hold the [ ] button to move to the menu screen. Press the [ + , - ] button to select <Settings> and then press the [ ] button. The Settings menu appears. Press the [ + , - ] button to select <System> and then press the [ ] button. - Page 50 <Resume> : Specifies the starting point to restart playback after the music you are listening to is stopped. If set to <Off>, the last file listened to will play from the beginning. If set to <On>, the last file listened to will play from the point where last played.
-
Page 51: Chapter 5. Troubleshooting
Chapter 5. Troubleshooting System Reset ...52 To Upgrade Firmware ...53 Troubleshooting ...55... -
Page 52: System Reset
System Reset Press the Reset Button at the bottom of the product with a pointed object such as a safety clip. The system will be initialized. The Reset function will not delete data stored in the built-in memory. If a product malfunction occurs, you can re-initialize the system by pressing the Reset button. -
Page 53: To Upgrade Firmware
Files\Samsung\YP-U2J" folder. Double-click YP-U2J Updater icon on the Desktop. Select [Install Player USB Driver] that appears when you insert the Installation CD into the CD- ROM drive. When the driver is installed, YP-U2J Updater icon is created on the Desktop. - Page 54 Check the current version and click the [Start] button of the Firmware Updater program to upgrade the Firmware. If you select "Format data area" and start the update, all the data saved in YP-U2J will be deleted. Please backup your important data on your PC.
-
Page 55: Troubleshooting
Recharge the battery and turn the power on again. Press the Reset Button. Check if the [HOLD] switch is in the direction of the arrow position. Check if you pressed the right button, then press again. Press the Reset Button. - Page 56 Check points & Troubleshooting Check if the USB connection plug has been disconnected during file or data transmission. If this is the case, it may cause serious damage not only to files/data but also to the product.You have to be extra cautious as Samsung is not held responsible for data loss.
-
Page 57: Chapter 6. Appendix
Chapter 6. Appendix Menu Tree ...58 Product Specifications ...59 License ...60 Safety Information ...62 Warranty ...64... -
Page 58: Menu Tree
DNSe User EQ Set Play Speed Play Mode Play Mode Play Speed Skip Interval Search Speed Intro Time You can quickly view the menu structure. Playlist FM Radio FM Radio Time Auto Preset Sleep Scroll Speed FM Region Auto Power Off... -
Page 59: Product Specifications
0.99 oz Dimensions(WxHxD) ” 0.96 X3.44 FM Frequency 87.5~108.0MHz FM Signal to Noise Ratio 55dB FM T.H.D FM Useable Sensitiivity 10dBµ G The contents of this Manual are subject to change without prior notice for further improvement. ” ” X0.5... -
Page 60: License
No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. - Page 61 Memo...
-
Page 62: Safety Information
Note: This equipment has been tested and found to comply with the limits for a Class B digi- tal device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 63: Declaration Of Conformity
EMI/EMC: AnSI C63.4 1992, FCC Part 15 Subpart B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference... -
Page 64: Warranty
Authorized Samsung Dealer/Service Center. No reimbursement will be made for repairs carried out by non Samsung Centers, and warranty coverage will not be valid for any repairs or damage caused by such repairs. 4.Repair or replacement under the terms of this war- ranty does not give right to extension to or a new starting of the period of warranty. - Page 65 Abuse or misuse, including but not solely limit- ed to the failure to use this product for its normal purposed or in accordance with Samsung's instructions usage and maintenance. Use of the product in conjunction with acces- sories not approved by Samsung for use with this product.
- Page 66 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This product is for personal use only, and is only for use in compliance with the limitations of copyright and other laws.
- Page 67 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Samsung Electronics America, Inc. 1-800-SAMSUNG (7267864) www.samsung.com REV 0.0...
