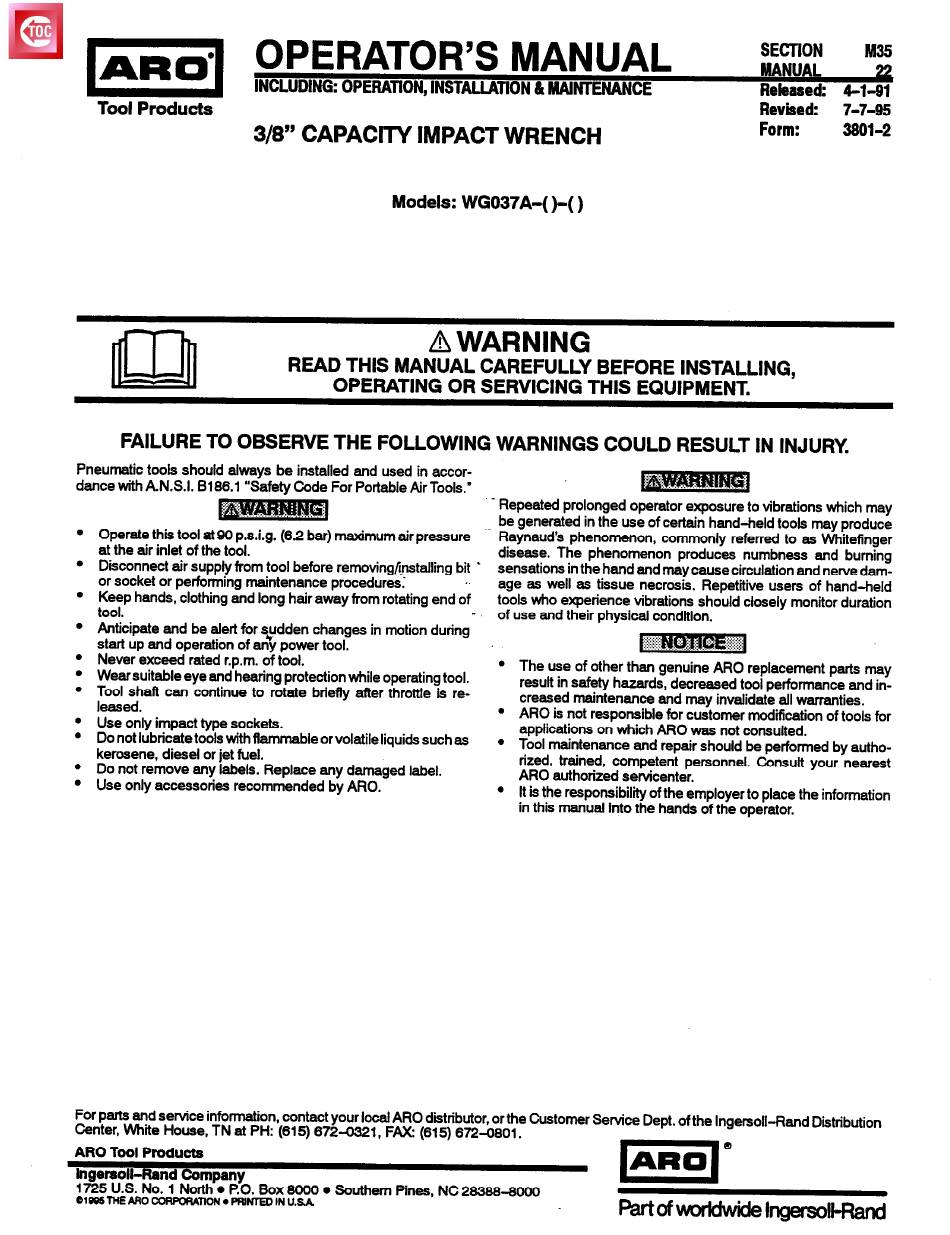

ARO WGO37A Series Operator's Manual

Tool Products
OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
3/8" CAPACITY IMPACT WRENCH
SECTION M35
MANUAL 22
Released: 4-1-91
Revised: 7-7-95
Form: 3801-2
Models: WGO37A-( )-( )
A WARNING
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
Pneumatic tools should always be installed and used in accor-
dance with A.N.S.I. B186.1 "Safety Code For Portable Air Tools."
- Repeated prolonged operator exposure to vibrations which may
l
Operate this tool at 80 p.s.i.g. (6.2 bar) maximum air pressure
-
be generated in the use of certain hand-held tools may produce
at the air inlet of the tool.
Raynaud's phenomenon, commonly referred to as Whitefinger
l
Disconnect air supply from tool before removing&stalling bit
disease. The phenomenon produces numbness and burning
or socket or performing maintenance procedures,
sensations in the hand and may cause circulation and nerve dam-
l
Keep hands, clothing and long hair away from rotating end of
age as well as tissue necrosis. Repetitive users of hand-held
tool.
tools who experience vibrations should closely monitor duration
*
l
Anticipate and be alert for sudden changes in motion during
of use and their physical condition.
start up and operation of any power tool.
l
Never exceed rated r.p.m. of tool.
l
l
Wear suitable eye and hearing protection while operating tool.
The use of other than genuine ARO replacement parts may
l
Tool shaft can continue to rotate briefly after throttle is re-
result in safety hazards, decreased tool performance and in-
leased.
creased maintenance and may invalidate all warranties.
l
l
Use only impact type sockets.
ARO is not responsible for customer modification of tools for
l
Do not lubricate tools with flammable or volatile liquids such as
applications on which ARO was not consulted.
l
kerosene, diesel or jet fuel.
Tool maintenance and repair should be performed by autho-
l
Do not remove any labels. Replace any damaged label.
rized, trained, competent personnel. Consult your nearest
l
Use only accessories recommended by ARO.
ARO authorized servicenter.
l
It is the responsibility of the employer to place the information
in this manual into the hands of the operator.
For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand Distribution For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand Distribution
Center, White House, TN at PH: (615) 672-0321, FAX (615) 672-0801.
ARO Tool Products ARO Tool Products
Ingersoll-Rand Company Ingersoll-Rand Company
1725 U.S. No. 1 North
l
PO. Box 8000
l
Southern Pines, NC 28888-8000 1725 U.S. No. 1 North
l
PO. Box 8000
l
Southern Pines, NC 28388-8000
© 1995 THE ARO CORPORATION PRINTED IN U.S.A.
