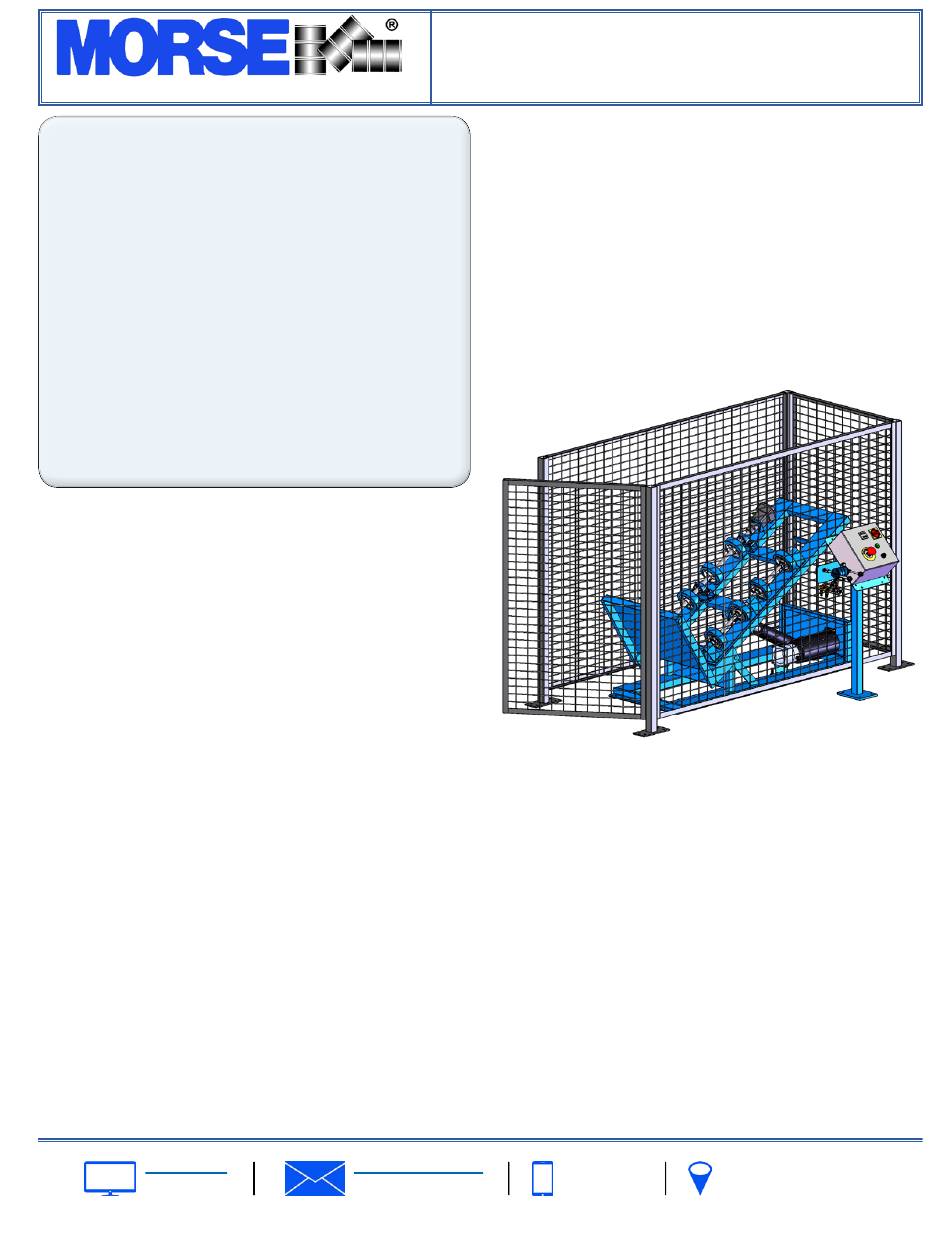

morse 456-CE Series Operator's Manual

Ce-marked hydra-lift drum rollers

Advertisement

Quick Links

The Specialist In Drum Handling Equipment
ContEnts
Receiving Procedures. . . . . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Information. . . . . . . . . . . . . . . . . . . . .
Machine Description. . . . . . . . . . . . . . . . . . .
Options. . . . . . . . . . . . . . . . . . . . . . . . .
Installation Instructions. . . . . . . . . . . . . . . . .
Operating Instructions. . . . . . . . . . . . . . .
Maintenance. . . . . . . . . . . . . . . . . . . . . . . .
Parts Lists and Diagrams. . . . . . . . . . . . . .
Specifications. . . . . . . . . . . . . . . . . . . . . . . .
Declaration of Conformity. . . . . . . . . . . . . . . . 13

Receiving Procedures

Every Morse drum handler is inspected prior to shipping. However, damage
may be incurred during transit.
Check for visible damage. If you choose to accept damaged freight,
always sign noting the damage on the Bill of Lading.
Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock for this
purpose.
Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of any
concealed damage.
Immediately
report all damage to the shipping company! Then
you may contact Morse for assistance with your freight claim.
Morse Manufacturing will not be held responsible for any damaged
freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within its rated
capacity. Warranty does not cover wear from normal use or damage from
accident or abuse. Motors and other purchased parts carry the warranties
of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return freight
must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for any
modifications, unauthorized repairs or parts substitution.
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc.
Model 456-1-50-CE & 456-3-50-CE
CE-Marked Hydra-Lift Drum Rollers
operator's Manual
for Morse
Page
CE-Marked Hydra-Lift Drum Rollers
1
456-CE series
1
1 - 2
Serial Number 278575 to ______
3
3
4 - 5
5 - 6
6
7 - 11
12
safety Information
While Morse Manufacturing Co. drum handling equipment is engineered for
safety and efficiency, a high degree of responsibility must be placed upon
the machine operator to follow safe practices, based primarily on common
sense, upon which true safety depends.
Failure to follow the safety precautions in this manual can result in personal
injury or property damage. Observe the same precautions as with similar
machinery where carelessness in operating or maintenance is hazardous
to personnel. Carefully read the safety precautions below and throughout
this manual.
Review the Material Safety Data Sheet(s) for the material(s) in the drum(s)
and take all necessary precautions. Safety shoes, work gloves, hard hat
and other personal protective devices are recommended.
Prior to initial use, inspect all moving parts and test rotation of wheels.
Perform necessary inspections, operator training, etc.
service@morsedrum.com
Form PL456-CE (278575-______)
(315) 437-8475
103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
(Updated 17 Oct, 2019)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 456-CE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for morse 456-CE Series

  • Page 1: Table Of Contents

    Specifications......Declaration of Conformity....13 Receiving Procedures Every Morse drum handler is inspected prior to shipping. However, damage may be incurred during transit. •...
  • Page 2: Safety Information

    WARnInG - The 456-CE Series is designed to handle one drum of the types listed at the top of page 3 under machine description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed the weight capacity.
  • Page 3: Machine Description

    A 208 liter (55-gallon) plastic drum can be rotated with the correct POLY option installed. • Order Option POLY-456 factory installed on your new 456-CE Series Drum Roller. • Order Option POLY-456FI for field installation of POLY Kit on your existing 456-CE Series Drum Roller. Controls There are two powered functions for Lockable Main the operator to control.
  • Page 4: Installation Instructions

    • The base has four 1/2” (1.27 cm) diameter holes spaced 20-3/8” wide x 62-5/8” long (51.75 cm wide x 159.07 cm long). Morse recommends the rotator be secured to the floor using 3/8” x 3” (.95 cm x 7.6 cm) lag bolts (not included).
  • Page 5: Operating Instructions

    Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ Loading a Drum 1. Raise the “TILT” lever to tilt the load plate to floor level.
  • Page 6: Maintenance

    Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ Rotating a Drum 4. After ensuring that the area around the rotator is clear, raise the “ROLL”...
  • Page 7: Parts Lists And Diagrams

    Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ morsedrum.com Copyright 2019 - Morse Mfg. Co., Inc. Form PL456-CE (278575-______)
  • Page 8 Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ ItEM QtY. PARt # DEsCRIPtIon ItEM QtY. PARt # DEsCRIPtIon 295-P...
  • Page 9 Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ ItEM DRUM RoLLER MoDEL # QtY. PARt # DEsCRIPtIon 456-1-50-CE 5626-P...
  • Page 10 Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ morsedrum.com Copyright 2019 - Morse Mfg. Co., Inc. Form PL456-CE (278575-______)
  • Page 11 Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ ItEM 2 - MotoR DRUM RoLLER MoDEL # ItEM QtY. PARt #...
  • Page 12: Specifications

    Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ 456 sPECIFICAtIon sHEEt (CE Marked) Capacity: Liquid Load 1,00 Lb. (454 kg) Dry Load 400 Lb.
  • Page 13: Declaration Of Conformity

    Model 456-1-50-CE & 456-3-50-CE CE-Marked Hydra-Lift Drum Rollers The Specialist In Drum Handling Equipment operator’s Manual for Morse 456-CE series CE-Marked Hydra-Lift Drum Rollers serial number 278575 to ______ Declaration of Conformity RF Solutions, LLC has tested the product to the current appropriate standards and finds that the product is in compliance with those requirements.
