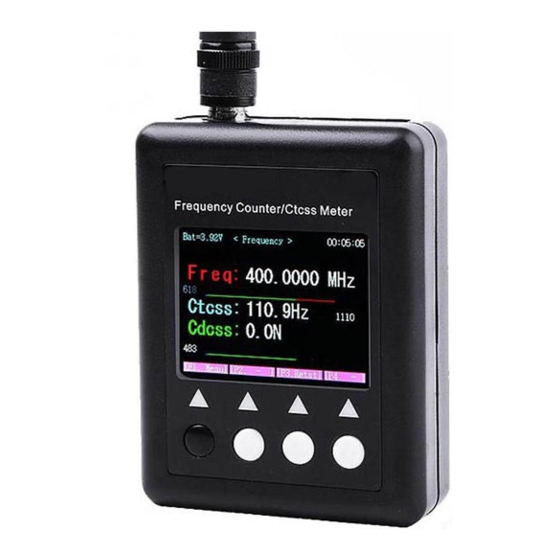

SURECOM SF401-PLUS Portable CTCSS/DCS Decoder Frequency Counter
Description
Introduction:
• The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.
it is the tool of choice for maintenance personnel ,test frequency and signal strength of wireless enthusiasts.
• This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
• There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
• Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
• Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
• This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF
• DMR Radio signal e frequency counter.
• Easy Battery level
Feature & Specification:
•
Frequency range: 27Mhz-3000Mhz
!
Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
•
CTCSS/DCS Decoder (must be 136-174/400-520MHz)
•
Frequency counter for DMR radio
•
Frequency digital 0.000 or 0.0000 ( +-0.001)
•
Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2～2.5ppm
•
Frequency Response time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
•
TFT Color Display 240 x 320 ,LCD Dim level setting
•
Build-in Li-ion battery
•
Net Weight: 113g
•
4 buttons control
•
Auto power off 1-9minutes
•
Charging battery LED indicator
