Swidget WI000UWA Quick Start Manual

Wi-Fi Control
Model No.: WI000UWA
MUST BE INSTALLED AND USED ONLY WITH AN APPROVED/CERTIFIED SWIDGET OUTLET. USE WITH ANY OTHER DEVICE IS PROHIBITED
AND WILL VOID THE WARRANTY.
WARNING AND CAUTIONS:
• WHILE NOT REQUIRED, IT IS RECOMMENDED TO AVOID ANY RISK OF SHOCK OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT THE POWER IS OFF BEFORE INSTALLING OR REMOVING ANY INSERT.
• Not for use to control medical or life support equipment.
• For INDOOR use only: 32-104F (0-40C).
• Do not use Wi-Fi devices to control electric heaters or any other appliances which may present a
hazardous condition due to unattended or unintentional or automatic power on control.
• Double check any external Wi-Fi programming for accuracy before using them.
• Insert can only be installed in one orientation. Rear alignment pins prevent incorrect installation. Do not forcibly install an Insert.
• For reference, the controlled Swidget receptacle is marked on the face as "CONTROLLED".
• Do not exceed the load rating for the Swidget outlet:
• Resistive: 1800W
• Motor: 0.5HP
• Inductive: 8A@125VAC (PF0.4)
• Requires a wireless router and Internet connection for device setup.
• Actual wireless performance in a home depends on the numbers of walls/obstacles between the Insert and wireless router.
• Use with Swidget Outlet Model Number R1015SWA.
DESCRIPTION:
The Swidget Configurable Smart Outlet with the Wi-Fi Control Insert allows the user to control power to the receptacle (marked "CONTROLLED") and monitor power (both receptacles independently) for
devices plugged into the Swidget outlet. The Wi-Fi Control Insert connects to your home's wireless router via the App (Android and iOS). Once connected, the Insert can then be monitored and setup for use.
FEATURES:
• One controlled AC receptacle (marked "CONTROLLED")
• Remote ON/OFF control via wireless router
• Local and Remote modes available
• Manual ON/OFF control via front panel push button
• One ALWAYS ON AC receptacle
• Independent power monitoring of both AC receptacles
• Wi-Fi Comaptible
INSTALLATION:
1. TO AVOID SHOCK OR DEATH, RECOMMENDED TO TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE
POWER IS OFF BEFORE INSTALLING OR REMOVING INSERT
2. This device is to be installed in a Swidget outlet ONLY.
3. Orient the Insert to line up with the pins in the Outlet cavity. NOTE: alignment pins will prevent incorrect installation.
4. Push Insert into the Outlet cavity until the two side latches engage.
5. Re-enable power to Outlet.
6. a. For a first time installation, the Insert will flash Blue indicating network pairing/joining required (see below).
b. For Inserts being moved, the Insert will power up with the previous location settings.
7. Search Google Play or Apple App store for "Swidget".
OPERATION:
MANUAL OUTLET SWITCHING - Works with radio connection only
1. Lightly press Insert push button and hold for 1-5 seconds then release. Outlet will toggle state.
Wi-Fi NETWORK PAIRING/JOINING
1. Lightly press Insert push button and hold for 10-15 seconds then release (Note: factory default is Insert in pairing mode). LED will flash blue to indicate paring mode is enabled. No manual or external
Wi-Fi operations are possible during this activity.
2. Follow App based pairing steps for Wi-Fi connection.
3. Insert will remain in pairing mode for up to 60 seconds. If successful, LED will be solid blue for 5 seconds then return to the normal operational state. IF FAILED to connect after 60 seconds, red LED will
flash indicating no or failed Wi-Fi connection. Note: this is the first-time start up state. If necessary, consult your router manual and retry pairing.
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the
equipment.
NOTE: This equipment complies with FCC and Industry Canada RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum
distance of 20cm between the radiator & your body. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user's authority to operate the device.
© 2019 Swidget Corp. The Swidget logo and "Power to live smart" are registered trademarks of Swidget Corp.
IMPORTANT SAFETY INSTRUCTIONS
INSERT BUTTON ACTIONS
Button Press
LED State
and Hold
Less than 1 sec No Change
1 - 5 sec Green ON<>OFF
5 - 10 sec No change
10 - 15 sec Blue ON
More than 15 sec OFF
SAVE THESE INSTRUCTIONS
LED INDICATOR CHART
LED COLOR CODE
Action
Green
None
ON
Manual Outlet Toggle
OFF
None
Network Pairing Mode OFF
None - button press ignored
Off>On
OFF
OFF
PROBLEMS or QUESTIONS:
If you have any problems with or questions about the Swidget
Outlet or Insert, contact our tech support team:
support@swidget.com
For the most up-to-date product support, accessories,
electronic (PDF) format manuals and more, visit
www.swidget.com
No user serviceable parts in this unit.
If you have problems with the connecting hub, please consult
the manufacturer for the appropriate support.

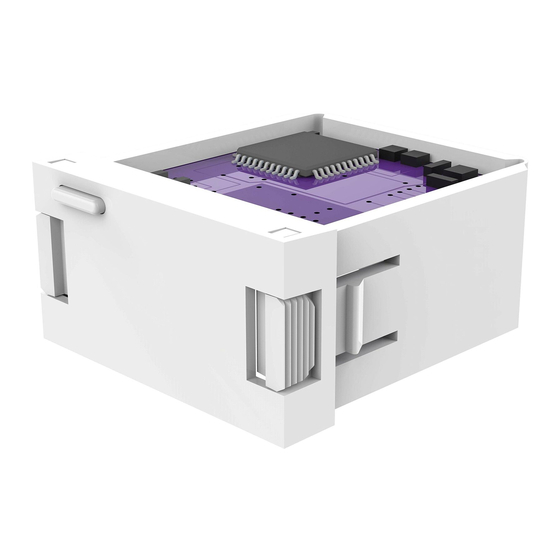

Side Latches
DESCRIPTION
Blue Red
OFF OFF Outlet ON, Radio Connected
OFF OFF Outlet OFF, Radio Connected
Radio network pairing mode.
Flash OFF
Blue will flash
Pairing OK. Blue on solid for 5 sec
OFF
On>Off
LED (Green) indicates state
Pairing FAIL after 60 sec
OFF Flash
Red will flash
Network Connection FAIL
OFF Flash
Red will flash
Push to
Install
