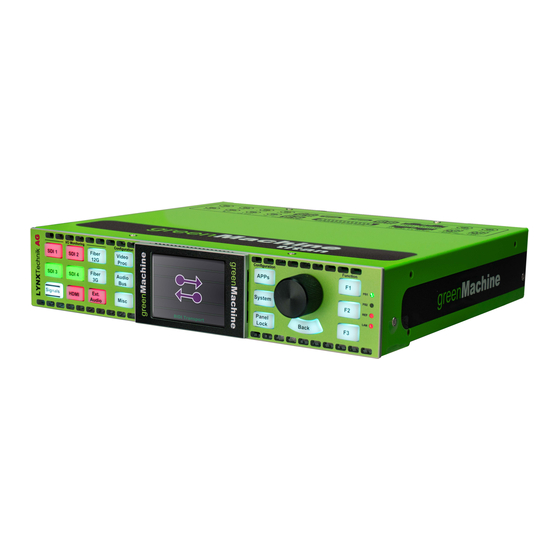

Lynx greenMachine titan Quick Reference

Quad channel universal video and audio processing platform
Hide thumbs Also See for greenMachine titan:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

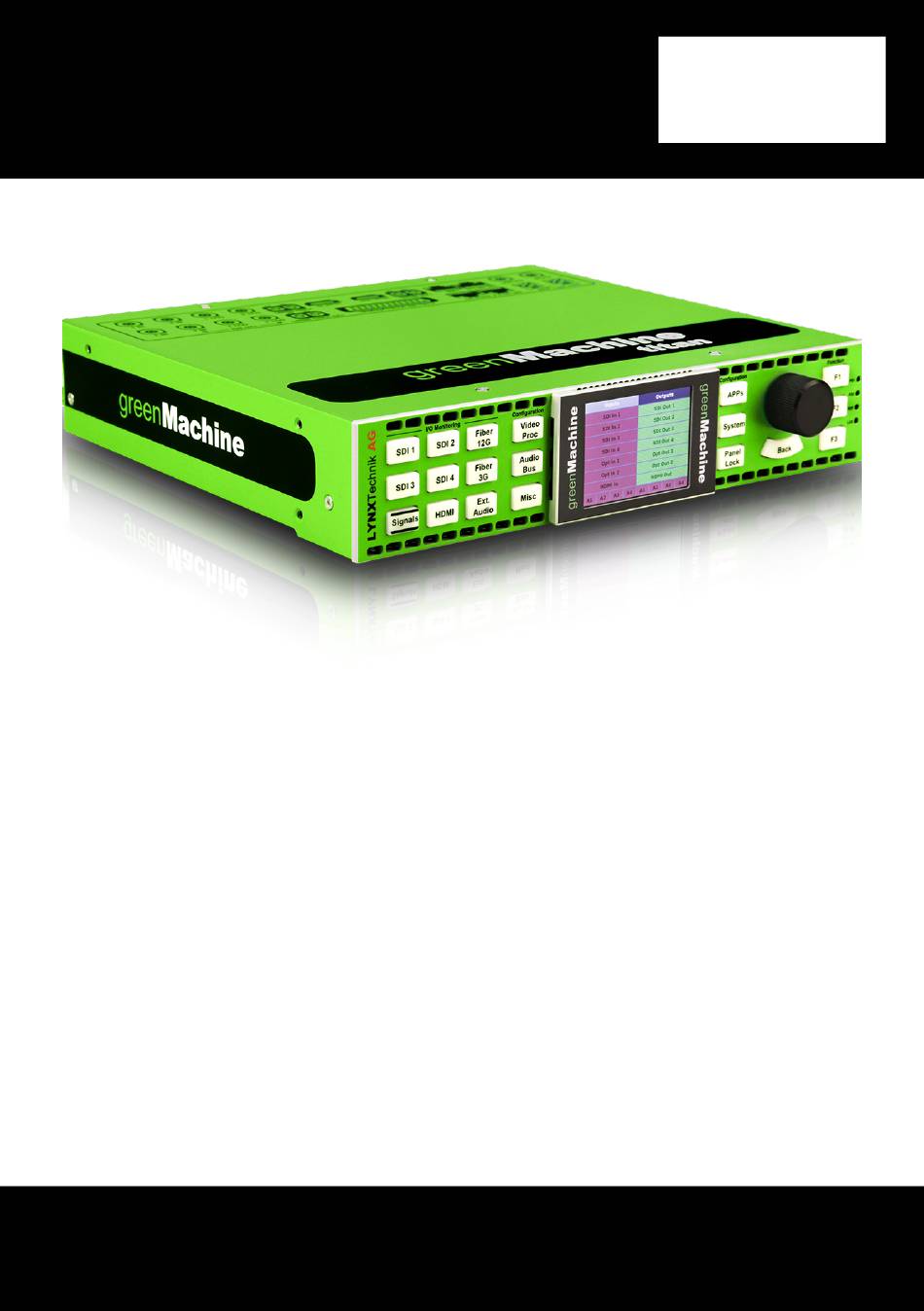

greenMachine
titan
Quad Channel Universal Video and Audio Processing Platform
Overview
The current greenMachine titan comprises four 3G/HD/SD-SDI video channels or a
single 4K/UHD video channel. It offers up to 12G processing support (3840 x 2160
@60 Hz) and provides the functionality to convert between single-link 4K video (12G)
and quad-link 4K video (2SI; 4x3G).
The greenMachine titan hardware is a powerful general-purpose audio and video
processing appliance that is custom-configured by the user using one of the pre-
defined constellations. It is not limited to one constellation per greenMachine. It may
be switched between multiple licensed constellations to configure the machine for
many different applications in the workflow.
A Constellation is a template or package of features. When you deploy a
constellation on a greenMachine, you are reconfiguring that machine to have those
features.
All current constellations are present in the greenMachine when delivered.
All constellations can be deployed for full functional testing even without a license,
but unlicensed constellations will show a watermark on the video output. If required,
licenses can then be purchased from you local LYNX representative.
If you ordered a greenMachine package and/or additional
constellations, then your greenMachine has been delivered
pre-configured and ready to use.
LYNXTechnik
www.lynx-technik.com
Quick
®
Reference
AG

Advertisement

loading
Need help?

Need help?

Do you have a question about the greenMachine titan and is the answer not in the manual?

Questions and answers

Related Manuals for Lynx greenMachine titan

Summary of Contents for Lynx greenMachine titan

  • Page 1 Quad Channel Universal Video and Audio Processing Platform Overview The current greenMachine titan comprises four 3G/HD/SD-SDI video channels or a single 4K/UHD video channel. It offers up to 12G processing support (3840 x 2160 @60 Hz) and provides the functionality to convert between single-link 4K video (12G) and quad-link 4K video (2SI;...

  • Page 2: Hardware Overview

    UNPACKING greenMachine titan The greenMachine titan comes with the following items: WHAT‘S IN THE BOX? 1x greenMachine titan 1x external power supply (RPS 6120) 1x power cord (EU, UK or US) 1x SubD 25 audio adapter PCB 1x quick reference guide...
  • Page 3 LOCAL CONTROL AND MONITORING When used stand-alone, the greenMachine titan has a local control panel that can be used to fully operate and monitor the module. The nine push buttons on the left-hand side, in conjunction with the local display, provide everything that is required for a detailed input and output signal monitoring.
  • Page 4 Processing Configuration Access and control the configuration menus by using the buttons to the immediate left and top right of the display. You can also use the “Back“ button underneath the rotary encoder. The areas on the left and right hand side of the display show the active menu items.
  • Page 5 All constellations can be deployed for full functional testing even without a license, but unlicensed constellations will show a watermark on the video output. If required, licenses can then be purchased from you local LYNX representative. Deployment of constellations can be done in the System menu.
  • Page 6 DEPLOYING A NEW CONSTELLATION WITH THE greenGUI Each greenMachine in the universe contains a flexGUI to control all the processing parameters within the constellations. The universe has access to all machines and all their parameters. Selecting a greenMachine in the Rolodex on the left side (scrolling menu) will cause the universe to zoom into that machine.
  • Page 7 IP SETTINGS OF THE greenMachine titan By default, the IP setting of the greenMachine is set to DHCP. If you have a DHCP server, simply connect the greenMachine to your network with the DHCP server and an IP address will automatically be assigned to the greenMachine.

  • Page 8: Technical Specifications

    12VDC @ 45W nominal (supports 7 - 24VDC input range) 2x power connections for redundant power supply Use only LYNX Technik products with LYNX Technik parts delivered with the product or marked as a compatible LYNX Technik product accessory. Loop connecting two greenMachines is to be avoided. Do not connect and disconnect DC plugs under load.
