Summary of Contents for LR SPG501 006

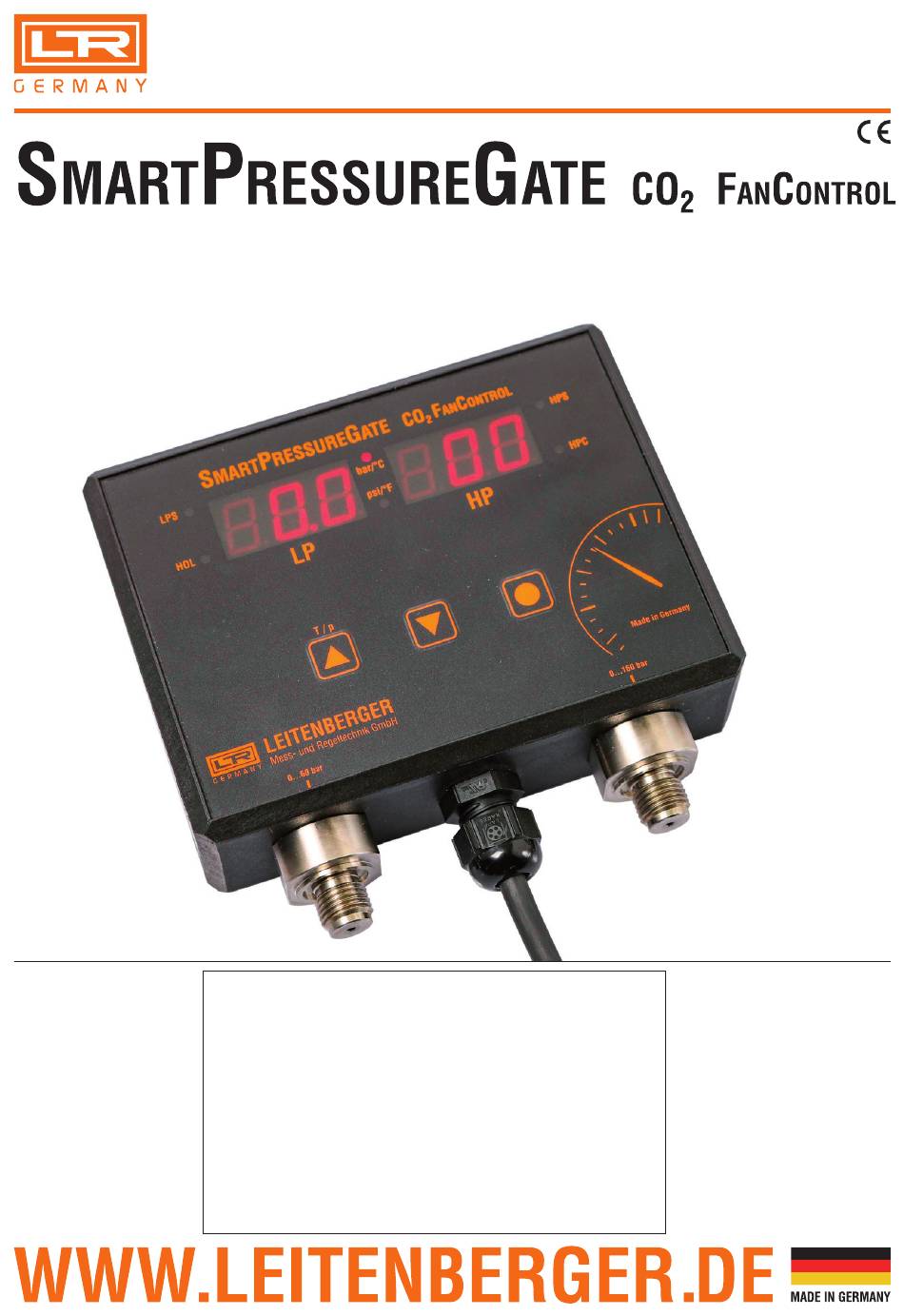

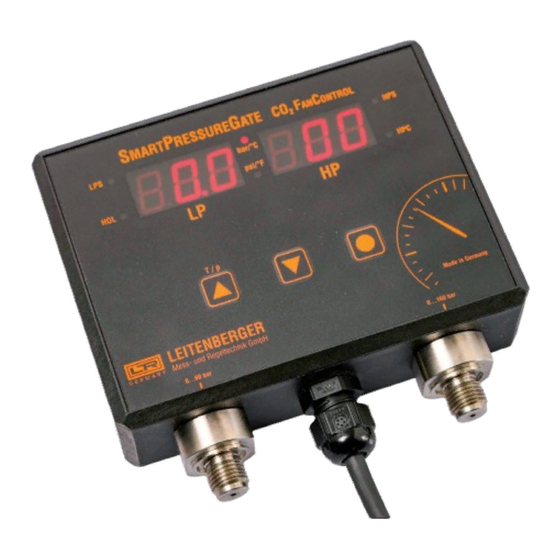

- Page 1 SPG 501 CO2 FANCONTROL English OPERATION MANUAL SPG501_006 SPG501_008 Pressure control unit for refrigeration systems with electronic pressure monitoring and digital display...
-
Page 2: Table Of Contents
Contents Page Intended use ..........2 Safety notes. -
Page 3: Safety Notes
2. Safety notes Please read these operating instructions carefully. To ensure safe and reliable work, only use the device for the described application. The device may only be installed and commissioned by refrigeration techni- cians from certified companies with electrotechnical training in the field of low voltage. -
Page 4: Specifications
3. Specifications Supply voltage: 100…240 VAC @ 47…63 Hz, 140…340 VDC Current consumption: 200 mA max. Display: 3-digit LED display for LP (low pressure) 3-digit LED display for HP (high pressure) Relay switching current: 5A @ 250 VAC, not fuse-protected. The specified switching currents must NOT be exceeded and adequate external fuse protection must additionally be provided! Cable specification:... -
Page 5: Overview
5. Overview Button 1 HPS LED Button 2 HPC LED Button 3 LPS LED LP display (low pressure) HOL LED HP display (high pressure) LP sensor connection bar/°C LED HP sensor connection °F LED - 5 -... -
Page 6: Designations
6. Designations HP (High Pressure): High pressure downstream of the compressor. LP (Low Pressure): Low pressure upstream of the compressor (suction-side). HPS (High Pressure Switch): Adjustable HP value to switch off the compressor and to issue an alarm signal. Hdt (High Pressure Delay Timer): Adjustable delay for the HPS in order to avoid unstable system behaviour. -
Page 7: Connection Diagram
7. Connection diagram (black) (brown) LPS-A (red) Low pressure switch LPS-B (orange) + alarm output LPS-C (yellow) HPS-A (green) HPS-B (blue) High pressure switch + alarm output HPS-C (violet) HPC-A (grey) HPC-B (white) Ventilator LP output (white/yellow) 4…20 mA / 0…10 VDC (white/red) HP output (white/green) -
Page 8: Operation
9. Operation Pressure indicator mode: In this mode, the LP and HP pressures are displayed in the set unit. Temperature indicator mode: button is used to switch between pressure display mode and temperature display mode. The display switches to temperature display mode automatically after 20 seconds. Setting mode: Activate setting mode by pressing and holding down the button. -
Page 9: Parameters
0…255 in single steps hold down Resets all adjustable parameters to their default values End setting mode, change to the pressure display Setting mode starts again at HPS Setting mode is ended automatically and the pressure display is shown again if 20 seconds pass without a button being pressed. -
Page 10: Switching Behaviour - Hpc
Switching behaviour – HPC HPC with the following set parameters: HPC: 20 bar HIF: 5 bar Switching behaviour – LPS LPS with the following set parameters: LPS: 10 bar Ldt: 3 seconds LIF: 2 bar - 10 -... -
Page 11: Switching Behaviour - Hps
Switching behaviour – HPS HPS with the following set parameters: HPS: 30 bar Hdt: 3 seconds HPd: 3 bar Fan control Analogue output F with the following set parameters: OntrOl FHP: 18 bar FLP: 6 bar FLL: 20 % - 11 -... -
Page 12: Rs-485 (Modbus Rtu)
Wall mounting Wall mounting 57,5 mm 25 mm 16 mm Subject to technical modifications. 2018/10 LEITENBERGER www.Leitenberger.de / LR-thermometer.de Mess- und Regeltechnik GmbH Phone: +49 (0)7121/908-0 ISO 9001 : 2015 Registered no. Bahnhofstraße 32 / 33 Fax: +49 (0)7121/908-200 12 100 24343 TMS 72138 Kirchentellinsfurt E-mail: mrt-info@LR-germany.de...
