T&S B-0111 Installation And Maintenance Instructions Manual

T&S B-0111 Installation And Maintenance Instructions Manual

Pre-rinse unit

Advertisement

Limited One Year Warranty

(Commercial Applications)
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
Attention California Residents:
"WARNING: This product contains chemicals
known to the State of California to cause cancer,
and birth defects or other reproductive harm."
P/N: 098-011395-45 Rev.2
Date: 01-26-18
Drawn: TEH
Checked: DMH 04-18-18
Approved: JHB 04-20-18
Maintenance
Instructions

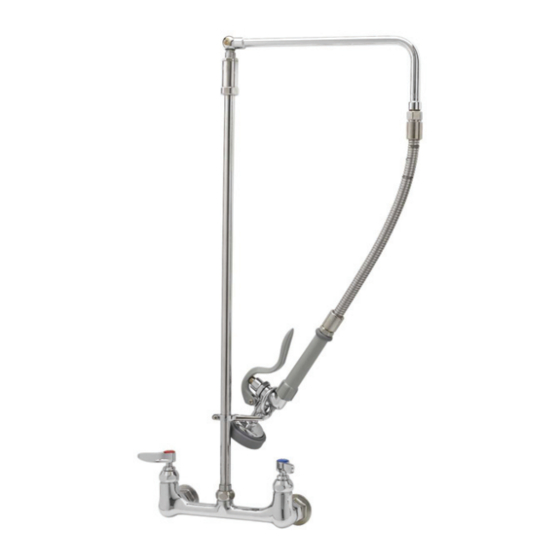

PRE-RINSE UNIT
B-0111, B-0121,
B-0131, B-0141,
and B-0171
Español:
ES
Instrucciones de instalación y mantenimiento
Français:
FR
Instructions pour l'installation et la maintenance
Deutsch:
DE
Installations- und Wartungsanleitungen
中文:
CN
安装与维护说明

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-0111 and is the answer not in the manual?

Questions and answers

Summary of Contents for T&S B-0111

  • Page 1 Any express warranty not provided herein, and any remedy for Breach of Contract which might arise, is hereby excluded and disclaimed. Any B-0111, B-0121, implied warranties of merchantability or fi tness for a particular purpose are limited to one year in B-0131, B-0141, duration.
  • Page 2 Exploded View...
  • Page 3 Part Number Guide Pre-Rinse Assemblies Asm, Base Faucet B-0111 014207-40 B-0121 002829-40 B-0131 002832-40 B-0141 B-0430 & B-0512 B-0171 002827-40 Asm, Finger Hook w/ Screw 004R Nipple 3/8” x 26” (for B-0131 only) 000373-40 3/8”x 32” (for other models) 000376-40...
  • Page 4 Installation: See separate instructions for installation of no.1 into deck. 1. Shut off water supply and drain lines. 2. Make sure that no.16 is seated properly inside no.1. 3. Grab no.3 and lower no.14 into faucet body. Press downuntil no.14 “pops” in. 4.
  • Page 5 Installation : Voir les instructions séparées pour l’installation du N°.1 dans le tablier. 1. Coupez l’alimentation en eau et les conduites d’évacuation. 2. Assurez-vous que le N°.16 est correctement installé à l’intérieur du N°.1. 3. Tenez le N°.2 et abaissez le N°.14 dans le corps du robinet. Appuyez vers le bas sur jusqu’à ce que le N°.14 s’enclique en place.
  • Page 6 L-Tube Swivel Repair: 1. While holding no.6 secure, unscrew no.8 and remove no.9. 2. Replace no.7 and/or no.9 if necessary. 3. Apply a coat of grease to no.7. Install and tighten no.8 and no.9 into no.6. 4. Turn on water and check for leaks. Reparación del eslabón giratorio del tubo en “L”: 1.
  • Page 7 RELATED T&S BRASS PRODUCT LINE B-2466 Pre-Rinse Unit with Overhead Swivel Arm and Add-on Faucet T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
