USER´S MANUAL
© HAKI AB 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 564 and is the answer not in the manual?

Questions and answers

Summary of Contents for Haki 564

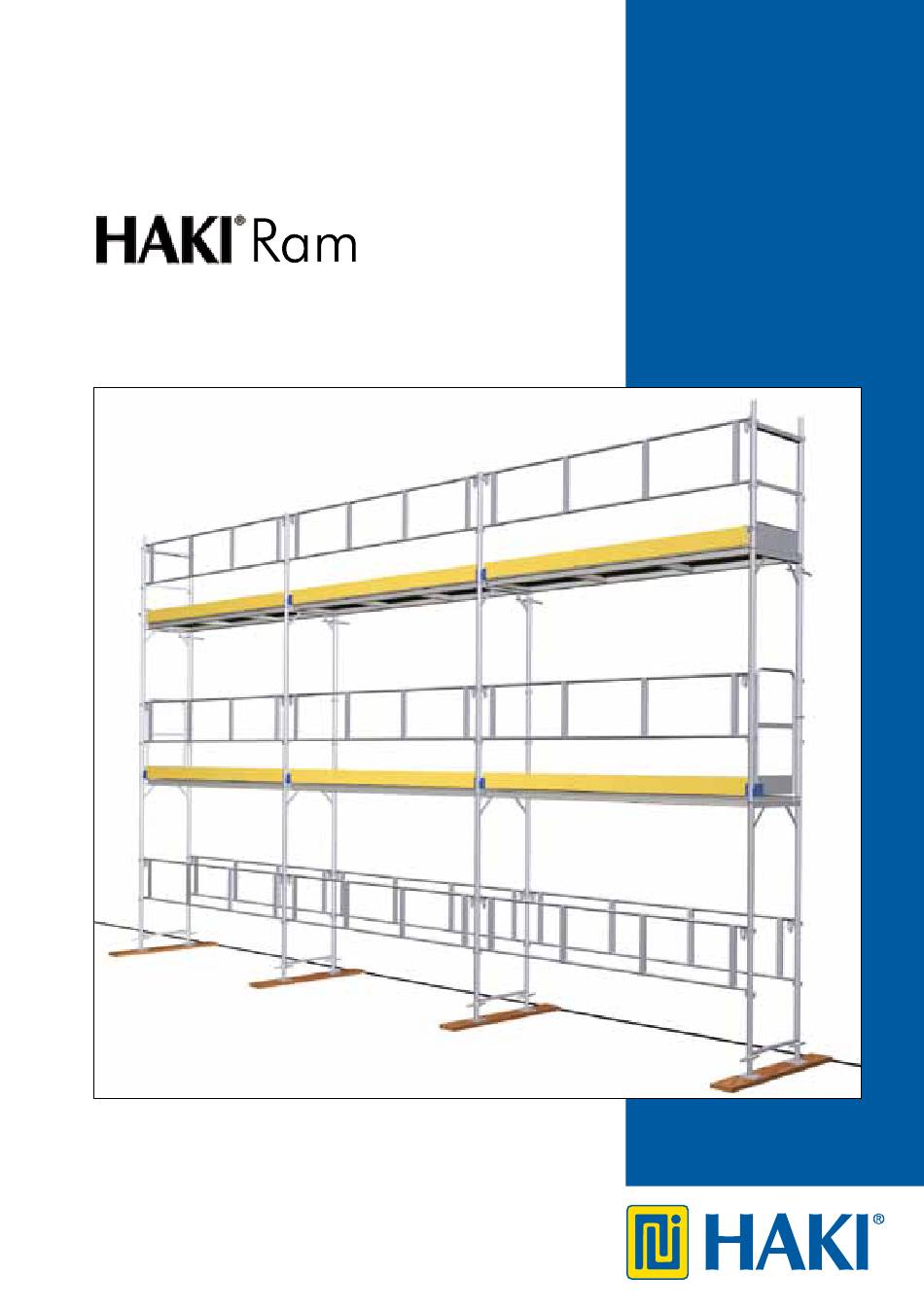

  • Page 1 USER´S MANUAL © HAKI AB 2014...
  • Page 2 HAKI’s scaffold systems must not be erected using components of makes other than HAKI or be connected to scaffolds of makes other than HAKI. In such cases, a special study of load-bearing capacity must be carried out. However, HAKI has no objection to the customary addition of scaffold tubes and approved couplers to the scaffold.

  • Page 3: Basic Information

    Marking All components with the exception of locking pins etc. come permanently marked with the HAKI logo and the last two figures of the year of manufacture ( S14). Older components that are covered by the certificate Guardrail frame SKRD.

  • Page 4: List Of Components

    LIST OF COMPONENTS Name Code Item No. Weight Base jack 2071000 2073003 Adjustable BS = 55-570 mm BSL = 40-650 mm Frame 8731053 RA 500 8731084 RA 800 10.0 8731104 RA 1000 12.4 8731204 RA 2000 17.1 Frame 8731105 RAF 1000 14.5 With toeboard Frame AL...
  • Page 5 LIST OF COMPONENTS Name Code Item No. Weight Guardrail frame SKRDF 8753000 SKRDF 700 With toeboard Guardrail frame SKRA 8751075 SKRA 500-700 Bracket 8775030 SK 300 8775070 Jaw width 22 mm SK 700 8775080 SK 800 Bracket AL 4211072 SK 700 AL Bracket SK 700 with spigot 4211073 Bracket SK 650 without spigot...
  • Page 6 LIST OF COMPONENTS Name Code Item No. Weight Toeboard 2025300 FL 3000x150x32 Wood, yellow glazing paint Any logo can be applied Toeboard clip 2131001 LFP 150x32 Plastic 7161006 LF 70 Tie rod tube 4832045 SVF 450x48 AL Tube Ø48 mm Permissible load 5.4 kN Tie rod tube 8832045...
  • Page 7 LIST OF COMPONENTS Name Code Item No. Weight Stair UTV 2092200 UTV 3050x2000 39.7 With platform and locking catch at the top LxH 3050x2000 mm Width 600 mm Handrail 2161300 HL 3050x2000 19.3 Handrail inner UTV 7058254 11.5 Bracket handrail post 8752001 FF-UTV For stair UTV steel 2092200...
  • Page 8 Lattice beam 450 AL 4032410 FB 4100 AL 16.7 4032610 FB 6100 AL 24.3 4032810 FB 8100 AL 32.2 Ramtainer 8871000 28.9 For twenty vertical frames The frames are lashed to the ramtainer with strapping For other accessories, see HAKI Component List.

  • Page 9: Instructions For Dismantling

    ERECTION Information on safety when erecting and dismantling 1. Before erecting or dismantling a scaffold, try to fence off the working area if possible. 2. The location for the scaffold must be checked in order to prevent risks when erecting, dismantling and moving the scaffold and to ensure that work can be carried out safely with regard to level and slope, obstacles and wind conditions.
  • Page 10 Damaged material must not be used. For more information on damaged material and renovation, please refer to the HAKI Safety Guide. 2. Erect the first two frames on the base jacks and hook both the internal and external guardrail frames into the pockets on the frames.
  • Page 11 (The risk is greater for aluminium). For assessment and renovation of damaged material, please refer to the HAKI Safety Guide. Internal ladders 6. Decking with a hatch must be used instead of ordinary decking in bays where ladders are sited.
  • Page 12 ERECTION External stairway 7. The UTV stairway is fitted in an ex- ternal bay of length 3050 mm using extra frames. The external bay should be erected parallel with the rest of the scaffolding. Lay out two base jacks. Erect one frame on each and connect these frames to the frames of the main scaffold using two SW 48x48 swivel...
  • Page 13 ERECTION Brackets Brackets can be fitted at various heights using the coupler. Fit the decking units. Make sure that the decking units are hooked into the grooves of the brackets and lock the decking units successively using the T-lock device. Frames with brackets must be anchored both at the top and at the bottom.
  • Page 14 ERECTION Cantilevered scaffold SK 800 brackets are used as the basis for cantilevered scaffolding starting at any level. 13. SK 800 external brackets A maximum of three frames or scaffolding of 6.0 m in height can be erected on reinforced SK 800 brackets.
  • Page 15 ERECTION Large differences in the ground level 16. Where there are large differences in the level of the ground, compensate for these by using RA 500 or RA 1000 frames and ULB 700 ground level transoms. A RA 2000 frame erected on base jacks in the usual way.

  • Page 16: Loading Conditions

    90° of 2.5 kN (2.7 kN) perpendicular to Facade the façade. The values in parenthe- ses refer to HAKI Ram in aluminium. Coupler Where a scaffold is covered in Coupler sheeting, the number of ties must be increased to take account of wind load.
  • Page 17 LOADING CONDITIONS Permissible loads on standards The permissible load on a standard is 14.5 kN (4.2 kN). For HAKI Ram of aluminium, a permissible load on a standard of 7.6 kN is applicable in structures where a maximum of 25% of the uniformly distributed working load may consist of material stored on a work platform (load class 3).
  • Page 18 LOADING CONDITIONS Access ways Access is usually provided by means of HAKI UTV stairways that are fitted to the outside of the scaffold using extra frames (see erection 12). Steel scaffolds having UTV stairways fitted externally may be built to a height of 37.5 m.

  • Page 19: Maintenance And Storage

    With regards to wind loads, ties must be installed every fourth metre in height; see the section “Bracing and tying-in”. For clad scaffolding, calculations should be made in each individual case. For more information, please contact HAKI’s technical department. Load classes Refers to EN 12811-1.
  • Page 20 PERSONAL FALL PROTECTION EQUIPMENT Attachment points for personal fall protection equipment Permissible points of attachment for personal fall protection equipment are as described below. PLEASE NOTE: Recommendations for points of attachment apply provided that the com- ponent in question is otherwise without load and that only one person is attached to the same component at any one time.
  • Page 21 Notes...
  • Page 24 8. Guardrail with toeboard if drop is two metres or more 9. Suitable means of access to scaffold 10. Scaffold erected for correct class of load HAKI AB • SE-289 72 Sibbhult, Sweden • Tel +46 44 494 00 • Fax +46 44 494 72 info@haki.se • www.HAKI.com...
