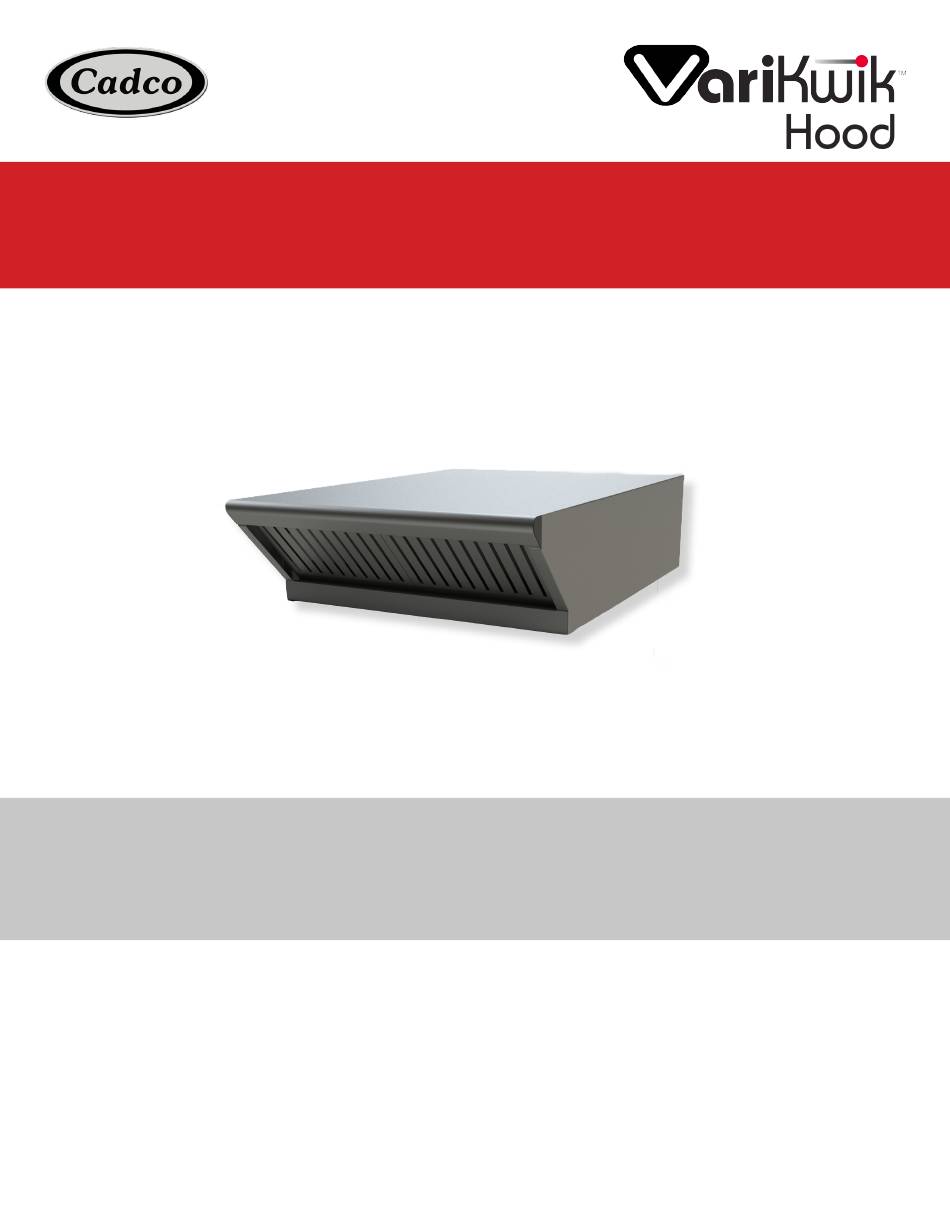

VARIKWIK HOOD
USER MANUAL-
READ THIS MANUAL COMPLETELY BEFORE OPERATING THIS APPLIANCE
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER of MANAGER, or to
the person responsible for training operators of this appliance.
THIS MANUAL IS TO BE UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE.
Contact Cadco if you have questions regarding installation, operation or maintenance of this equipment.
Hours
8:30am - 5:00pm (Eastern)
Monday through Friday
Address
Cadco Ltd.
200 International Way
Winsted, CT 06098
TM
VK-VH1 & VK-VH2
Phone
(860) 738-2500
(860) 738-9772
Email
lsmith@cadco-ltd.com
Fax
Advertisement
Table of Contents
Related Manuals for Cadco VARIKWIK VK-VH1
Summary of Contents for Cadco VARIKWIK VK-VH1
- Page 1 This manual is considered to be part of the appliance and is to be given to the OWNER of MANAGER, or to the person responsible for training operators of this appliance. THIS MANUAL IS TO BE UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact Cadco if you have questions regarding installation, operation or maintenance of this equipment. Hours Phone...
-
Page 2: Table Of Contents
2. If an electrical shock is felt when touching the hood, disconnect the power immediately and call Cadco Technical Service for assistance or service. 3. If the power cord is frayed or the plug damaged, DO NOT PLUG INTO THE ELECTRICAL POWER RECEPTACLE. -
Page 3: Safety Precautions
Safety Precautions IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS When using electrical appliances basic safety precautions should be adhered to, including the following: Read all the instructions before use. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. Unplug appliance from the electrical outlet when not in use, and before cleaning. -
Page 4: Unpacking & Inspection, Freight Damage
IF SHIPMENT ARRIVES DAMAGED: VISIBLE LOSS OR DAMAGE: . If the unit gets damaged during shipment and Cadco is picked the carrier Cadco will file the claim. If the dealer picks a 3rd party carrier you will need to file a claim. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, ground- ing reduces the risk of electric shock by providing an escape wire for the electric cur- rent. This hood is equipped with a cord that has a grounding wire with a ground- ing plug, which must be plugged into an outlet that is properly installed and grounded. - Page 6 INSTALLATION CODES AND STANDARDS Installations within the United States, must follow: 1.State and local codes. 2.National Electrical Code (ANSI/NFPA No.70, latest edition) available from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269. 3.Vapor Removal from Cooking Equipment, (NFPA-96, latest edition) available from NFPA.
- Page 7 Do not leave flammable materials near the smoke exhausts. 2. Evacuation through an efficient ventilation flue. The Cadco smoke flue. available as an optional. must be installed. The flue must preferably have � FITTING THE FLUE COVER the same diameter (0 4”...
-
Page 8: Specifications
Specifications VK-VH1 VK-VH2 - 654796-54430-1 - 654796-54431-8 Ship wt: 46.75 lbs Ship wt: 46.75 lbs Ship dims: W 27.5’’ x H 15’’ x D 35.5’’ Ship dims: W 27.5’’ x H 15’’ x D 35.5’’ Cu. Ft: 4.3 ft Cu. Ft: 4.3 ft Unit wt: 36.75 lb Unit wt: 36.75 lb Unit dims: W 22.6’’... -
Page 9: Cleaning & Care
Cleaning & Care CAUTION: Unplug equipment and allow to cool before cleaning. Disconnect appliance from electric power before cleaning. Exposed surfaces can be hot to the touch and may cause burns. Allow appliance to cool before cleaning. DO NOT spill or pour water into controls, control panel or wiring. - Page 10 Periodically: 1. Unplug unit from power source. 2. Remove front filters as explained above. 3. Replace carbon and particulate filters when contaminant level impairs efficiency. 4. Replace filters. CAUTION: Cleansers, detergents, degreasers, sanitizers, or bleaching agents that contain chlorides or phosphates will cause permanent damage to stainless steel products. The damage appears as pits, eruptions, voids, small holes, severe discoloration or dulling of the metal finish.
-
Page 11: Diagram/Schematics
(CONTINUED) Hard water Daily Vinegar Rub with soft cloth as spots as needed directed on packages. Rub in direction of grain of stainless steel. Do not use in vinyl trim. Diagram/Schematics Schematics for VK-VH1 Schematics for VK-VH2... -
Page 12: Service Expectations
Although our products are reliable, they are designed to easily be repaired, if necessary. We believe that a malfunction to a Cadco product should cause as little inconvenience to the customer as possible. Our goal is to provide the same day support response and strive to fix it the first time. -
Page 13: Warranty Statement
Cadco is NOT responsible for any loss of the customer’s income, loss of food product, extra labor charges, or any other incidental or consequential costs as a result of the malfunc- tion of our product. The end-user shall allow for on-premises repair of the equipment to be completed at a mutually convenient place and time. - Page 14 The customer is responsible to ship or deliver carry-in service items to a Cadco authorized service center, or directly to Cadco. If shipping the unit, be sure to pack it securely and insure it for its orig- inal purchase price. Cadco is not responsible for damage or loss of unit in transit to us or a service center.
