Summary of Contents for horiba IT-480
- Page 1 User guide for IT-480camera edition: May, 2020 edition: June, 2020 © 2020 HORIBA, Ltd. All rights reserved June, 2020...
-
Page 2: Table Of Contents
Introduction ....................3 ■Warranty and liability ................3 ■Precautions for safe handling ..............3 ■Trademarks ..................4 ■Contact for using IT-480camera .............. 4 Overview ..................... 5 Installing IT-480camera ................. 6 ■Supported OS ..................6 ■Available languages ................6 ■Downloading IT-480camera ..............6 Assembling method for IT-480camera ............ -
Page 3: Introduction
(excluding gross negligence) of HORIBA, Ltd. shall be limited to the range of actual, direct and normal damages incurred, and shall be liable for up to the selling price of IT-480 main unit itself. -
Page 4: Trademarks
The storage location of photos, videos and CSV data depends on the Android device or settings, but it is normally saved in the [IT-480] folder created in the internal storage of the Android device or SD memory card. In order to save data, a certain amount of free space is required. -
Page 5: Overview

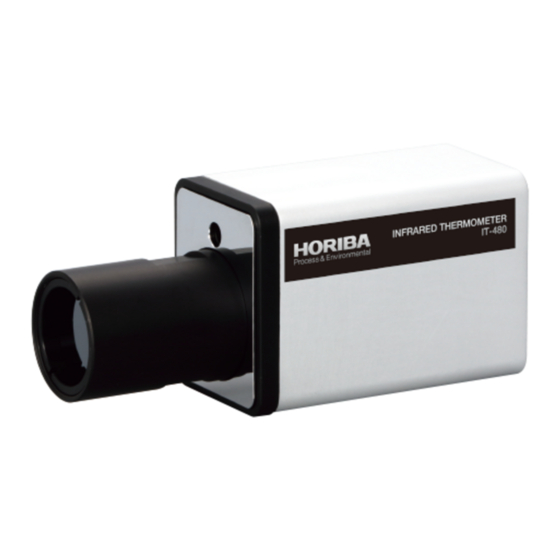

Overview IT-480camera is used with the infrared thermometer IT-480. Photos and videos of the surface temperature of the measured object can be saved by using the Android device camera. It may also be attached to a selfie stick or a tripod, but in that case, the attachment... -
Page 6: Installing It-480Camera
However, connection and operation with all Android devices is not guaranteed. ■Available languages Depends on the language setting on Android device. Android device IT-480camera Setting Japanese Japanese Other than Japanese English ■Downloading IT-480camera Access to the link below and download IT-480camera. https://play.google.com/store/apps/details?id=com.horiba.it480.it480camera... -
Page 7: Assembling Method For It-480Camera
Make sure the screws are securely tightened and the Android device is stable before use. If you are using a selfie stick or tripod, the weight of the IT-480 or Android device may cause the mounting position to shift or drop. Proper care is needed. -
Page 8: Application Operation
Application operation The screens are as of March, 2020. The specifications for IT-480camera may change without prior notice for improvement. Notice Depending on your device, OTG connection setting is needed to turn ON. For the setting, refer to the instruction manual of your device. ■Startup ■End-User License Agreement Tap [I accept] below to start using IT-480camera, only if you understand and agree... -
Page 9: [Help Screen]
■[HELP SCREEN] When IT-480 is connected to Android device, the help screen appears. After checking, tap [OK]. ■Measuring screen... -
Page 10: Setting Screen
■Setting screen Setting Method Upper alarm limit Input number Lower alarm limit Input number Measuring interval (sec) Select from 0.1-1.0 Screen light on/off Log CSV output on/off Emissivity Input number Moving average Input number HELP button during connection on/off License Show contents in dialog Version Show contents in dialog... -
Page 11: Take Photos
■Take photos ■Save photos ■Shoot videos... -
Page 12: Save Videos
■Save videos ■End... -
Page 13: Troubleshooting
Contact your local distributor or displayed not IT-480 is broken. － contact form on our website. correctly. IT-480 Out of measured Refer to the IT-480 Instruction range of IT-480. instruction manual. manual Cannot save Not enough storage on Use an Android device or SD... -
Page 14: About Open Source Software
IT-480camera are requested to convey that desire, along with the version number of the software to us by email at: it480camera@horiba.com. Source code of Source code and object code supply is available in our website;... - Page 15 Customers shall assume all risks associated with the quality and the performance of the Open Source Software. In the event of discovery of defects in the Open Source Software, HORIBA shall assume no responsibility for any accompanying derivative costs, or expenses required for repairs, revisions or other procedures.
