Summary of Contents for Suhr A.C.E
- Page 1 User Guide...
-
Page 2: Table Of Contents
Table of Contents Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Powering A�C�E�... -
Page 3: Overview

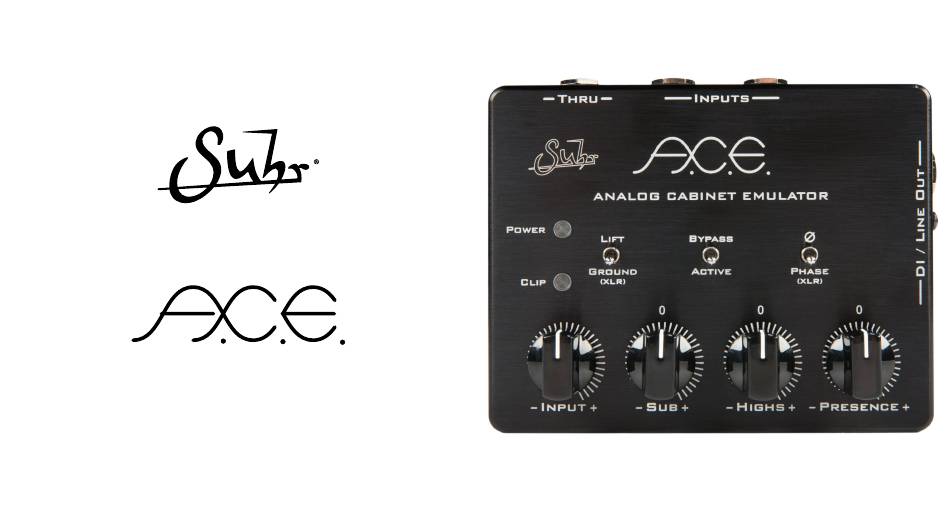

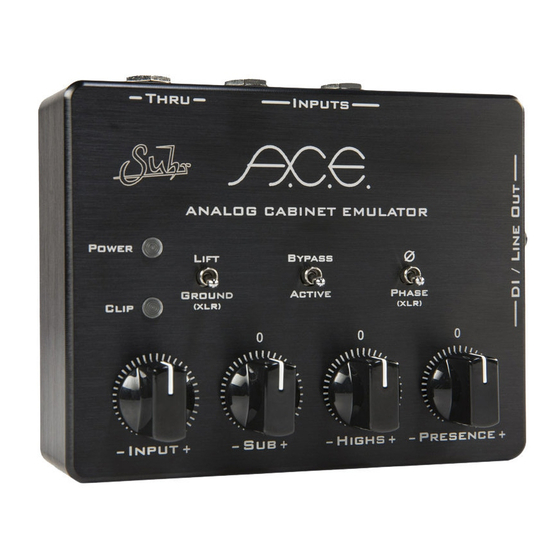

Thank you for purchasing the Suhr Analog Cabinet Emulator™ (A.C.E) Please take the time to read this manual to get the most out of the A.C.E. The more you familiarize yourself with the features of this pedal, the more you will enjoy its benefits and maximize its potential. -
Page 4: Powering A.c.e
9 Vdc (center negative) See Technical Specifications on pg 14. A�C�E� can also be powered internally from a 9V battery as described below� *WARNING: A.C.E. is NOT a Phantom Powdered device. Installing/Replacing The Battery: 1� Unscrew the backplate of the pedal to access the battery compartment with the battery snap located inside�... -
Page 5: Inputs & Outputs
Suhr Reactive Load. The load can be connected to the TO SPEAKER input, which is connected in parallel to the FROM AMP input. -
Page 6: Controls
Controls INPUT: This control functions only when using the From Amp input. It is used to set the volume of your amp signal before it goes through the filter. *This control can be set as desired as long as the Clip light does not turn on. -
Page 7: Live Setup 1
Live Setup 1 Balanced Output AMPLIFIER MIXING CONSOLE Amplifier Output* Speaker Input* * Use speaker cable for these connections SPEAKER CABINET... -
Page 8: Live Setup 2
* Use speaker cable for these connections MIXING CONSOLE Amplifier Output* Speaker Input* With amplifiers containing multiple output jacks, one output can be connected to A.C.E.’s FROM AMP jack, while another output can be connected to the speaker cabinet directly SPEAKER CABINET... -
Page 9: Recording Setup With Speaker Cabinet
Recording Setup with Speaker Cabinet Dashed line denotes al- ternative connection. Do Unbalanced Output SPEAKERS not use unbalanced and balanced outputs Balanced Output simultaneously HEAD PHONES AMPLIFIER Amplifier Output* Speaker Input* Digital Audio Workstation * Use speaker cable for these connections SPEAKER CABINET... -
Page 10: Silent Recording Setup With Reactive Load
Do Unbalanced Output SPEAKERS not use unbalanced and balanced outputs Balanced Output simultaneously HEAD PHONES Reactive Load Unbalanced Line Out SUHR REACTIVE LOAD * Use speaker cable for these connections Digital Audio Workstation AMPLIFIER Amplifier 8 Ohm Speaker Output*... -
Page 11: Silent Recording Setup With Reactive Load (Alternative)
Dashed line denotes al- ternative connection. Do Unbalanced Output SPEAKERS not use unbalanced and balanced outputs Balanced Output simultaneously HEAD PHONES AMPLIFIER Amplifier Output 8 Ohm* * Use speaker cable for these connections Digital Audio Workstation Reactive Load Input* SUHR REACTIVE LOAD... -
Page 12: Silent Recording Setup With Reactive Load
Dashed line denotes al- ternative connection. Do Unbalanced Output SPEAKERS not use unbalanced and balanced outputs Balanced Output simultaneously HEAD PHONES AMPLIFIER Amplifier Output 8 Ohm* * Use speaker cable for these connections Digital Audio Workstation Reactive Load Input* SUHR REACTIVE LOAD... -
Page 13: Silent Recording Setup With Reactive Load
Dashed line denotes al- Unbalanced Output SPEAKERS ternative connection. Do not use unbalanced and balanced outputs Balanced Output simultaneously HEAD PHONES AMPLIFIER Amplifier Output 8 Ohm* * Use speaker cable for these connections Digital Audio Workstation SUHR REACTIVE LOAD Reactive Load Input*... -
Page 14: Sample Settings
Sample Settings With these sample settings, dial the Input knob to suit your amplifier� Rock (4x12 cabinet with 57 mic) Rock (More Mids) Balanced (Single Coils) High Gain Rock (Full Bottom) -
Page 15: Technical Specifications
Our international distributors are set up to handle warranty issues in their respective countries� If you do not have an authorized Suhr dealer in your country, please contact us direct for further details�... - Page 16 NOTE: This product has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
