Page 3: Table Of Contents
2. Introduction ..........................2 3. Scope of supply .......................... 3 4. Ultrasound scanning ........................4 5. Scanning bars ..........................5 6. Tips & Tricks ..........................10 7. Environmental and Disposal Instructions ................11 8. More non-destructive Gold-Testing Devices by Goldanalytix ..........12... -
Page 4: About Goldanalytix / Contact
Important! Please read this instruction manual thoroughly prior to the first use of the BarScreenSensor. Please keep in mind that no testing method can detect every fake. We will not assume any responsibility for false identifications. The most recent instruction manual can be found on www.gold-analytix.com/BarScreenSensor by clicking on “information”... -
Page 5: Scope Of Supply
Small suitcase Small suitcase In the unlikely event that something is damaged or missing please contact Goldanalytix In the unlikely event that something is damaged or missing please contact Goldanalytix In the unlikely event that something is damaged or missing please contact Goldanalytix immediately (for contact data see page 2) immediately (for contact data see page 2). -
Page 6: Ultrasound Scanning

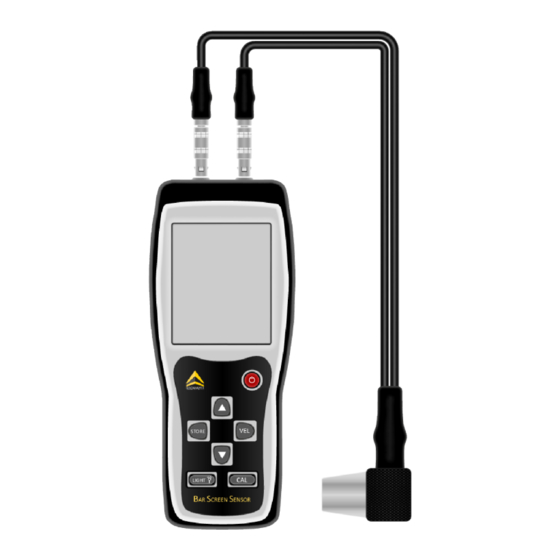

4. Ultrasound scanning Functions of the ultrasound analysis device ctions of the ultrasound analysis device The ultrasound measuring device is controlled by a The ultrasound measuring device is controlled by a microprocessor and allows quick and precise microprocessor and allows quick and precise measurement of the thickness and sound speed of materials. -
Page 7: Scanning Bars
The bar has been divided by the middle and provided with drill holes then filled with lead. This method is used frequently to fake silver bars using lead-tin alloys. Preparation of measurement: Calibrating the BarScreenSensor The first step consists of the calibration of the measurement unit by using the included stainless steel measurement plate. - Page 8 The next step is measuring the bar’s thickness at the spot you want to test by using calipers. Over its complete length, our bar has a thickness of 20 mm. In case of bars of unusual forms, you might have to measure the thickness of various spots. Now you can carry out the actual ultrasound measurement.
- Page 9 After this, you should „scan“ the bar. To do so, you lay the measurement head on different spots to exclude inclusions of foreign material. In case of a fake, the value of the thickness can differ significantly. Measurement 2: Examination of UNKNOWN sound speeds There are several situations where the sound speed is not exactly known.
- Page 10 Of course, this value is incorrect because the previously selected sound speed is wrong. This is why you now take off the measurement head from the bar and measure the objects thickness with calipers. Use the arrow keys to adjust the thickness for the BarScreenSensor in a way that it matches with the actual thickness.
- Page 11 As a last step, you press the VEL-button once again. The device then calculates the correct speed of sound. Having done this, you can scan the rest of the bar like you did in measurement 1. Saving the data The established value can now be saved on the device’s memory. In order to do so, push STORE for 2 seconds to get to the save mode.
-
Page 12: Tips & Tricks
6. Tips & Tricks Surface quality Surfaces which are too rough will cause measurement errors. Please only use smooth and plane surfaces for the investigation. In case of bars, please do not adapt the measuring head on the hallmark but on the smooth area of the bar. Non-parallel surface The contact area should be parallel to the opposite side in order to avoid wrong measured values. -
Page 13: Environmental And Disposal Instructions
Continuation of page 10 Metal Longitudinal Sound Velocity [m/s] Manganese 4660 Molybdenum 6250 Nickel 4900 Palladium 3250 Platinum 3960 Mercury 1450 Silver 3607 Titanium 6100 Uranium 3380 Bismuth 2000 Tungsten 5180 Zinc 4170 3300 Table 1 – Ultrasound velocity in pure metals 7. -
Page 14: More Non-Destructive Gold-Testing Devices By Goldanalytix
3 mm. www.gold-analytix.com/goldscreenbox DensityScreenScale The Goldanalytix DensityScreenScale is a great device for testing DensityScreenScale is a great device for testing precious metals of different sizes for their authenticity. precious metals of different sizes for their authenticity. Most fake... - Page 16 Goldanalytix Goldanalytix – a registered trademark of MARAWE GmbH & Co. KG Donaustaufer Str. 378, Donaustaufer Str. 378, Building 64 93055 Regensburg Amtsgericht Amtsgericht – Registergericht – Regensburg HRA 9148, Seat: Regensburg Personally liable partner: MARAWE Verwaltungs GmbH, Seat MARAWE Verwaltungs GmbH, Seat: Regensburg...
