LIMITED WARRANTY
This warranty extends to the original purchaser only. This warranty is not transferable,
between homes or owners and is only applicable to residential use. Winslyn
Industries, LLC provides a 3-year limited parts warranty for all range hoods. Under
this warranty, you (the customer), is entitled to replacement parts at no cost to
repair and restore functionality if any part of the product were to fail. No labor is
provided. Certain consumables that are not covered under this warranty include
Lights (halogen and LEDs), Carbon Filters, Mesh or Baffle Filters, Ducting. These
parts are guaranteed to last one year beginning from the date of purchase. If they
fail prematurely or are defective within 1 year of purchase, we will replace them
at no charge. If a main unit or complete replacement needs to be sent, Winslyn
Industries, LLC will require that the customer pay for shipping. Shipping for parts
are free under the warranty period. We will provide replacement parts at no charge
under normal use and service. We provide you with complete instructions on how
to maintain and care for this product. We will not be responsible for due to lack of
maintenance or proper use. The original sales receipt, order number, and/or proof
of purchase must be presented at the time of the warranty claim, without exception.
As noted in the instructions we recommend the use of a professional installer.
Winslyn Industries, LLC will not be held responsible for any damage or product
failure due to improper installation, misuse, or failure to use a licensed professional.
This warranty only extends for household product use, this warranty will be void
for commercial use of this product. This warranty will not be applicable if product
is purchased from an unauthorized seller. By purchasing this product, buyer agrees
that we are not liable for incidental, consequential, or special damages associated
with the return, replacement, installation or use of your product. This includes
freight costs, labor, travel time, lost profit, home damages and other contingent
liabilities and costs (including, without limitation, costs associated with experts,
investigations, analyses, attorneys and other professionals and services). Our
warranty is a comprehensive and explicit limit of liability, and all items outside of
it are not addressable by or the responsibility of Winslyn Industries, LLC. Certain
states have variances regarding implied warranties and in those situations, we
remain fully compliant. We make no implication that products comply with any or
all local building or plumbing codes. It is the consumer's responsibility to determi
ne local building code. Please write or contact us at:
Winslyn Industries, LLC
1232 Hardt Circle
Bartlett, Illinois 60103
Email: support@winslyn.com
19
Winpro® Sinks
Winflo® Range Hoods
Winette® Bathroom Vanities

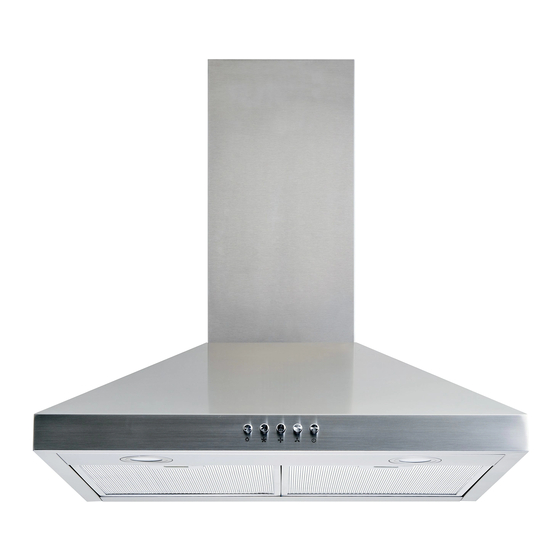

INSTRUCTIONS FOR MODELS:
631T
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
Revised November 2019
Disclaimer: Item purchased may de slightly different from the manual.
Installation Instructions,
Maintenance, Use
and Warranty
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winflo 631T
Summary of Contents for Winflo 631T
- Page 1 Please write or contact us at: Winslyn Industries, LLC 1232 Hardt Circle Bartlett, Illinois 60103 Winpro® Sinks Winflo® Range Hoods Email: support@winslyn.com Winette® Bathroom Vanities IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. Revised November 2019...
- Page 2 WARNING: TO REDUCE THE RISK OF INJURY, IN THE EVENT OF A RANGE TOP GREASE IMPORTANT SAFETY INSTRUCTIONS FIRE, READ THE FOLLOWING: † SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, off the burner.
- Page 3 LOCATION REQUIREMENTS VENTILATION REQUIREMENTS IMPORTANT: Observe all governing codes and ordinances. Have a qualified General requirements technician install the range hood. It is the installer's responsibility to comply † Range hoods must be ventilated to the outdoors, except for non-vented with installation clearances specified on the model/serial rating plate.
- Page 4 For Non-Vented (recirculating) Installations Roof venting Wall venting If it is not possible to vent cooking fumes and vapors to the outside, certain hoods can be used in the non-vented (recirculating) version, fitting a carbon filter at the motor. Fumes and vapors are the recycled through the top grille. DO NOT block Exhibit A the chimney holes.
- Page 5 Installing the range hood This installation is for mounting the product to a wall. Ensure your wall has the proper support to hold the range hood weight. These instructions are general guidelines, please consult your installation specialist regarding the best type of mounting hardware and support system based on your wall construction.
- Page 6 Find the center of the wall where you are installing the hood. Mark your center 11. Assemble ventilation to outside ducting. Install (1) round flexible duct exhaust line to the ceiling and measure out from the center to find your two mounting hose (I) to round vent air flap (C) (attached to range hood on top of unit) and points.
- Page 7 INSTALLATION FOR DUCTLESS (RECIRCULATING) MODE Reinsert the top duct of the range hood into the bottom duct. Please ensure that the 2 outer edges of the top half slide between the mounting IMPORTANT: If you are choosing the ductless/recirculating mode do not install the bracket (H) and inside walls of the bottom half.
- Page 8 Gre ase tray(If your model contains) CARE and MAINTENANCE – Periodically remove the grease tray (M) and clean built up grease collection. Cleaning Replacing the LED light – IMPORTANT: Clean the hood and panel filters frequently per the following Turn off the range hood and allow the LED light to cool. –...
Need help?
Do you have a question about the 631T and is the answer not in the manual?
Questions and answers
Vent is turning on but not sucking smoke out
The Winflo 631T vent may be turning on but not removing smoke due to one or more of the following reasons:
1. Improper Venting: The fan must be ducted to the outside. If it's vented into attics, crawl spaces, garages, or within walls and ceilings, it will not exhaust smoke properly.
2. Blocked Chimney Holes: If the chimney holes are blocked, air cannot flow out, preventing smoke removal.
3. Non-Vented (Recirculating) Mode: If used in recirculating mode, it must have a carbon filter installed at the motor. Without it, smoke and vapors are not filtered correctly.
4. Obstructed Duct System: If the vent system is blocked or the damper is not functioning properly, airflow will be restricted.
5. Improper Installation: Incorrect vent system length or configuration can reduce performance. The system must be installed according to specifications, using proper vent pieces and calculating total length.
Check these factors to identify and resolve the issue.
