Superdry U-5003 Operation Manual

Drying unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

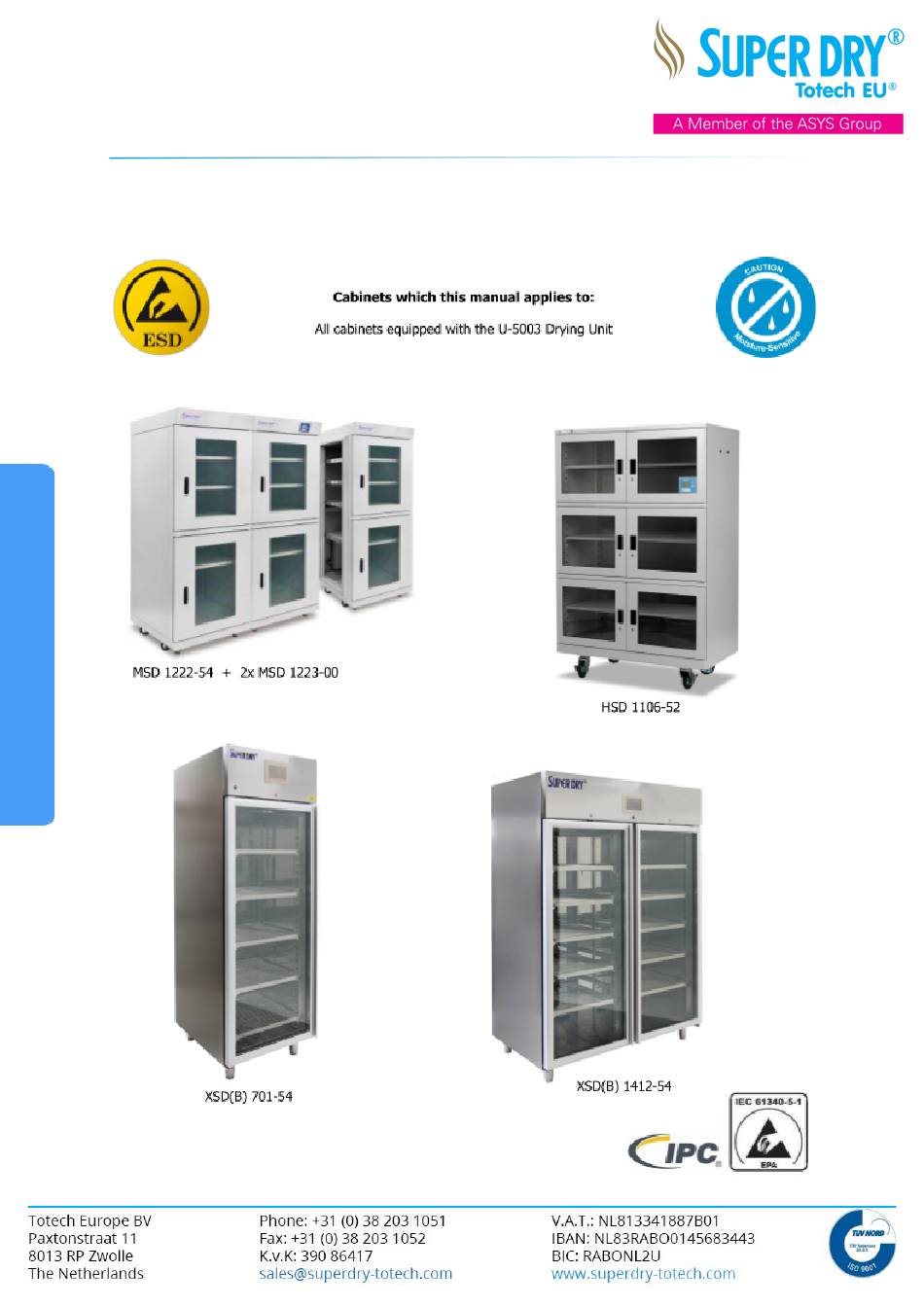

U-5003 Drying Unit
Operation manual for cabinets with the
U-5003 Drying Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-5003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Superdry U-5003

  • Page 1 U-5003 Drying Unit Operation manual for cabinets with the U-5003 Drying Unit...

  • Page 2: Table Of Contents

    U-5003 Drying Unit Contents 1. Safety Information 1.1 Adherence to information provided in the Operation Manual 1.2 Operator Obligations 1.3 Personnel Obligations 1.4 Organizational Measures 1.5 Information related safety precautions 1.6 Intended use 1.7 Hazards related to dryer handling 1.8 Protective devices 1.9 Electrical hazards...
  • Page 3 U-5003 Drying Unit 6. Webserver 6.1 Supported Browsers 6.2 Supported Devices 6.3 Supported language versions of web pages 6.4 Log on to the web server 6.5 Display LOGO! system information 6.6 Using the virtual display on the web server 7. Calibration 8.

  • Page 4: Safety Information

    U-5003 Drying Unit 1. Safety Information 1.1 Adherence to information provided in the Operation Manual Being familiar with the basic safety information and regulations is essential for safe handling and failure-free operation of this dehumidifier. ✓ This Operation Manual contains the most important information required in order to safely operate the dehumidifier.

  • Page 5: Intended Use

    U-5003 Drying Unit 1.6 Intended use The dehumidifier is exclusively intended to dehumidify atmospheric air. Any deviating or exceeding deployment is considered unintended use. Totech EU will not assume any liabilities for damage resulting therefrom. Dehumidifiers must not be mounted in and/or exposed to the intake of liquids (e.g. filled tanks or sumps, flooded areas etc.).

  • Page 6: Maintenance, Service And Troubleshooting

    U-5003 Drying Unit 1.11 Maintenance, Service and troubleshooting ✓ The dehumidifier is maintenance-free. ✓ Ensure to inform operators prior to the commencement of maintenance activities. ✓ For repair works, switch dehumidifier to neutral and secure main switch against unexpected restart.

  • Page 7: Specification

    Drying Unit U-5003 with integrated humidity control has been specifically designed for being deployed in drying storage cabinets and drying rooms, in which a particularly low residual moisture content is of specific importance.

  • Page 8: Startup

    U-5003 Drying Unit 3. Start-Up 3.1 Handling with hoisting gear Ensure to lift the device by means of forklifts or with secured harnesses. Do not use pipe connections or other attachment parts as lifting points. 3.2 Installation With respect to the device's installation, please adhere to the following: ✓...

  • Page 9: Settings

    U-5003 Drying Unit 4. Settings 4.1 Access to the menu Pressing the [SET]-button once will open the setup menu. It allows for defining respective setting by means of the buttons [+] and [-]. Briefly pressing the [SET]-button again will open the following reference input menus in sequence: ✓...

  • Page 10: Set Point Temperature + Heater Timer

    U-5003 Drying Unit 4.6 Set point temperature + heater timer This menu will be available if the optional heater has been installed. It serves to define the temperature requested for the cabinet. In case the defined nominal value is below cabinet temperature / ambient temperature, the heater will not be activated.

  • Page 11: Changing The Standard Ip Address From The Cabinet

    U-5003 Drying Unit 4.12 Changing the standard IP address from the cabinet The IP setting cannot be used with a local DHCP server, so the IP address need to be set manually The Standard IP setting is: BM (base Module) IP address: 10.31.0.xxx...
  • Page 12 U-5003 Drying Unit Procedure on how to change the IP address: For this procedure use only the arrow keys on the right side of the screen From the standard screen press: ✓ Arrow down ✓ ESC ✓ Arrow down ✓ Select ​ L ogo settings​ ⇒ ​ O K ✓...

  • Page 13: Setting The Time And Date

    U-5003 Drying Unit 4.13 Setting the time and date From the standard screen press: ✓ Arrow down Check the current time and date in the display If it is not ok please follow the next steps: ✓ ESC ✓ Select ​ L OGO! settings ✓...

  • Page 14: Webserver

    U-5003 Drying Unit 6. Webserver The SuperDry cabinet has an integrated web server which allows you to operate the drying unit from a conventional PC or a mobile device via the IP address of the LOGO! Device. With this method you can access the LOGO! Basic module using an internet-connected device (conventional PC, tablet or smartphone with web browser function).

  • Page 15: Display Logo! System Information

    U-5003 Drying Unit c) Click or tap the button. The LOGO! web server guides you to the welcome page. Note: Use the following credentials to logon to the web interface: Name: Web User Password: LOGO d) If necessary select the drop-down list for the desired language.

  • Page 16: Calibration

    U-5003 Drying Unit 7. Calibration Totech recommends annual calibration inspection or the system's calibration by sensor replacement, respectively. For the drying unit's calibration, we recommend the following two options: 1. Replacing the sensor by a factory-calibrated sensor. After detaching the screw-fastened retaining ring, the plug-in sensor can simply be unplugged.

  • Page 17: Troubleshooting

    U-5003 Drying Unit 9. Troubleshooting 9.1 For malfunction ✓ Disconnect device from power supply completely, and restart after 10 seconds. ✓ Check logic module and extension module as described under item 9.6. 9.2 Measuring faults ✓ Unplug the sensor and check plug connector.

  • Page 18: Humidity Too High

    U-5003 Drying Unit 9.7 Humidity too high ✓ At first startup, wait at least 24 hours for the cabinet to stabilize. ✓ The cabinet is in a regeneration cycle, it is normal the humidity will rise during this procedure. ✓ Unplug the cabinet, wait 5 seconds and power up the cabinet. Wait at least 6 hours to check if the humidity decreases.

  • Page 19: Warranty And Liability

    U-5003 Drying Unit 10. Warranty and Liability 10.1 Warranty and liability Principally, we apply our "General Terms & Conditions", which the operator has been provided with upon contract conclusion at the latest. Warranty and liability claims in relation to personal injury and property damage shall be excluded if the same arise from one or more of the causes below: ✓...

  • Page 20: Third Year Warranty

    U-5003 Drying Unit 10.4 Third year warranty Valid during the ​ t hird year​ after purchase of a new product. ✓ Only U-5000 series & U-7000 series Third year warranty: Each case will be evaluated by the technical support department, and the part(s) will be provided under leniency circumstances.

  • Page 21: Serial Numbers

    U-5003 Drying Unit Totech Europe B.V. will not provide warranty on returned parts when the Complaint form is not filled in correctly. 11. Serial numbers 11.1 Cabinet serial numbers Explanation how the serial number of the cabinet is identified: 11.2 Dry-unit serial numbers...

  • Page 22: Ce Declaration

    Totech Europe BV Paxtonstraat 11 8013 RP Zwolle That the following Dry Cabinets are fitted with U-5003 Drying Unit: MSD 1222-54, HSD series, XSD series, XSDB series, XSDC series, SDR series confirm that the drying cabinet described corresponds with the fundamental...
