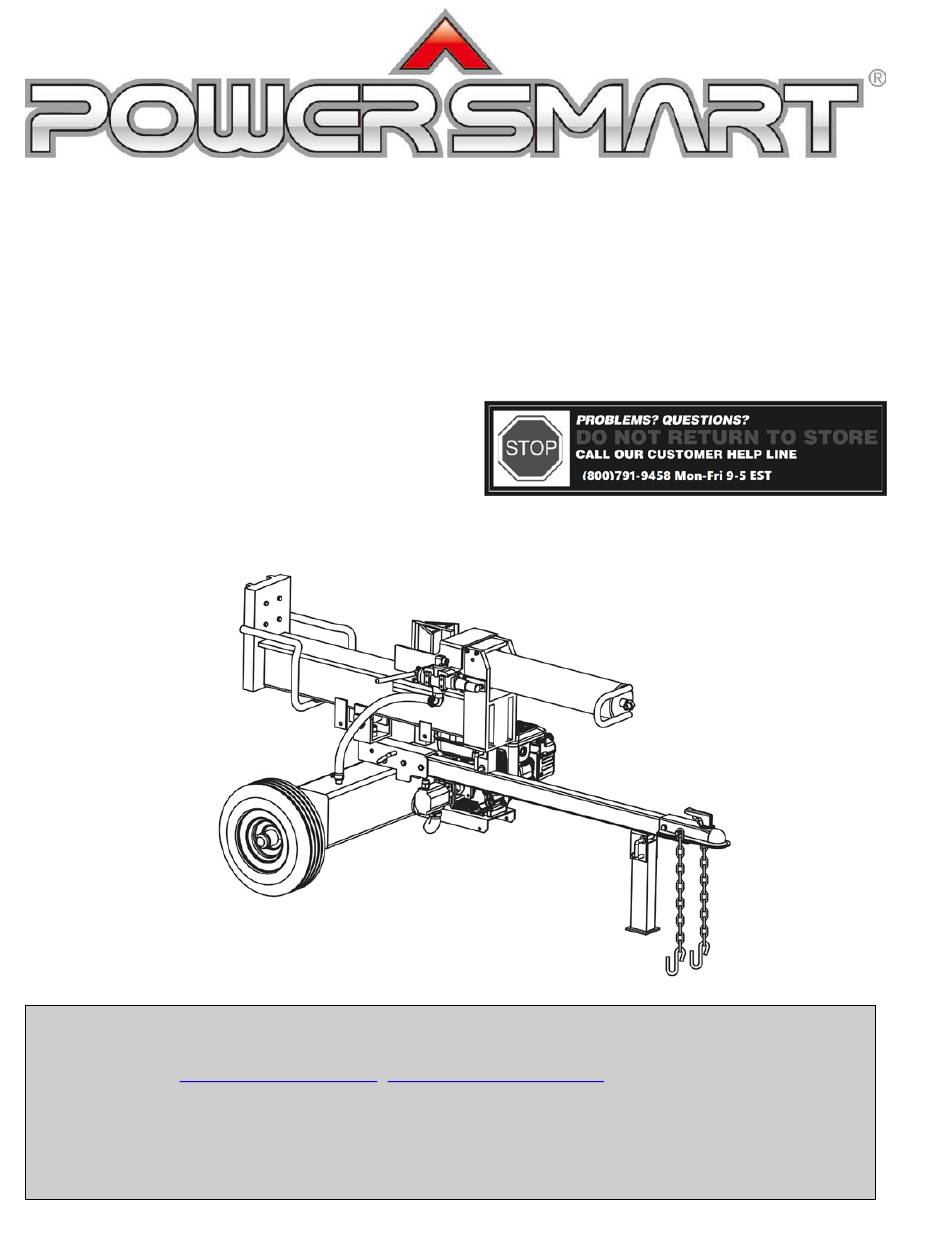

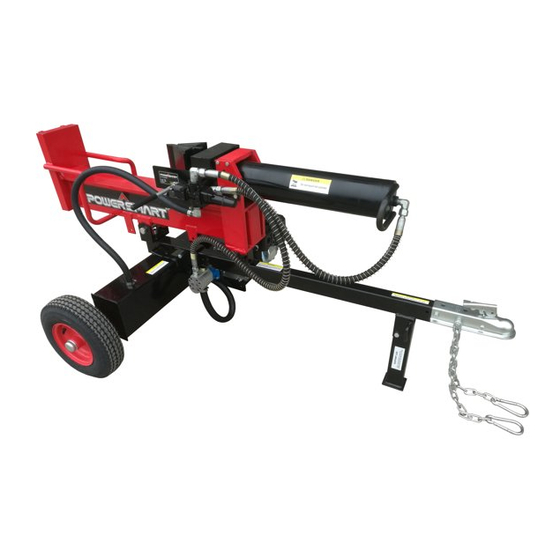

- Page 1 INSTRUCTION MANUAL 25 Ton Gas Log Splitter Model # PS95 Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com, www.powersmartusa.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
CONTENTS Technical data…...………………………………………………………... 4 General safety rules…….………………………………………………... 5 Specific safety rules for log splitter……...………………………………. 6 Knowing your log splitter……...………………………………………… 8 Assembly ………………………………………………………………… 9 Log splitter preparation…………………………………………………... 10 Starting the log splitter…………………………………………………… 12 Using the log splitter……………………………………………………… 14 Maintenance.…………………………………………………………… Exploded view & parts list……………………………………………… Warranty…………………………………………………………………... -
Page 4: Technical Data
52.4x33.1x37.8 inches Weight: Thank you for purchasing PowerSmart products. Please register online at www. powersmartusa.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason. -
Page 5: General Safety Rules
GENERAL SAFETY RULES For any questions regarding the hazard and safety notices listed in this manual or on the product, please call (800) 232-1195 M-F 9-5 EST before using the log splitter. DANGER: CARBON MONOXIDE Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon monoxide (CO). -
Page 6: Specific Safety Rules For Log Splitter
Only use log splitter for its intended purposes. Operate only on level surfaces. Allow engine to run for several minutes before using the log splitter. Turn the engine switch to the “OFF” position when the engine is not running. SPECIFIC SAFETY RULES FOR LOG SPLITTER SAFETY WHILE MOVING: 1. - Page 7 14. Operator position: ALWAYS operate the log splitter from the operation zone as shown below. Other positions are unsafe because they can increase the risk of injury from crushing, cutting, flying objects, or burns. 15. Never straddle, reach across or step over the beam while the engine is running and the log splitter is in the horizontal position.
-
Page 8: Knowing Your Log Splitter
KNOWING YOUR LOG SPLITTER End plate Horizontal lock Wedge Pump Control valve Tire Splitting control lever Engine Cylinder Hydraulic dipstick 2" ball coupler Hydraulic tank Safety chains Vertical lock Support leg Tow bar... -
Page 9: Assembly
ASSEMBLY Unpacking 1. Set the shipping crate on a solid, flat surface. 2. Remove the cardboard packaging, leaving the wooden frame intact. Attach tow bar to hydraulic tank 1. Remove the tow bar from wooden frame. 2. Attach tow bar to the frame next to the hydraulic tank. Make sure the support leg is in down position. 3. -
Page 10: Log Splitter Preparation
Secure hydraulic cylinder in ready position 1. Pull the hydraulic cylinder all the way out from its closed position. 2. Secure the cylinder in position with four bolts using the allen wrench provided. 3. Attach the wedge cover to the end of the beam and secure using four bolts. LOG SPLITTER PREPARATION The following section describes steps necessary to prepare the log splitter for use. - Page 11 To add oil, follow these steps: 1. Make sure the log splitter is on a level surface. 2. Remove the dipstick from the engine. 3. Add oil slowly to bring level to full. 4. To check the oil level: wipe the dipstick with a clean rag. Insert the dipstick into the oil fill opening without screwing in.
-
Page 12: Starting The Log Splitter
WARNING: High fluid pressures and temperatures are developed in hydraulic log splitters. Hydraulic fluid escaping through a pin-hole sized opening can burn or puncture skin, resulting in wounds that could cause blood poisoning, infection, disability, gangrene, amputation, or death. Therefore, the following instructions should be heeded at all times when inspecting or servicing the hydraulic components of the log splitter. - Page 13 If you start to feel sick, dizzy, or weak after the log splitter has been running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning. Starting the engine To start the engine, perform the following steps: 1.
-
Page 14: Using The Log Splitter
USING THE LOG SPLITTER WARNING: It is important to select an appropriate worksite and properly set up the log splitter in order to minimize the risk of slips and falls, equipment rolling or tipping over, carbon monoxide poisoning, and accidental fires. Select location Make sure to find a dry level surface with good footing for operation. - Page 15 Load log Load log onto beam with a cut end against the end plate – positioned for a lengthwise cut. CAUTION: The log splitter is designed only for cutting lengthwise with the grain— NOT for cutting across the grain. This log splitter is designed for cutting logs only up to a maximum of 14” in diameter and 25”...
-
Page 16: Maintenance
MAINTENANCE Proper routine maintenance of the log splitter will help prolong the life of the machine. Please perform maintenance checks and operations according to the schedule outlined in the chart below. If there are any questions about the maintenance procedures listed in this manual, please call (800) 791-9458 M-F 8-5CT. - Page 17 Changing oil Change oil when the engine is warm Refer to the oil specification to select the proper grade of oil for your operating environment. 1. Make sure the log splitter is on a level surface. 2. Remove the oil drain bolt. 2 Allow the oil to drain completely.
- Page 18 After any repair to the tire, do not exceed 30 PSI when filling with air. Pressures higher than 30 PSI can cause the tire and wheel to rupture and explode. Wedge If the wedge becomes dull or nicked, it can be removed and sharpened. Remove the bolts that connect the wedge to the cylinder and beam.
-
Page 19: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST Log Splitter... - Page 20 Item Stock# Description Item Stock# Description PS95-001 WEDGE COVER PS95-037 PUMP-VALVE HOST PS95-002 BOLT M10x30 PS95-038 CONNECTOR PS95-003 BOLT M16x70 PS95-039 GEAR PUMP PS95-004 WEDGE PS95-040 KEY 3x25 GEAR PUMP JAW PS95-005 UPPER BASE PLATE PS95-041 COUPLING PS95-006 LOWER BASE PLATE...
- Page 21 Engine...
- Page 22 Item Stock# Description Item Stock# Description 100011264-0003 Bolt M6×16 100004262 Tappet 100056645 Valve Cover 100057969 Exhaust Valve 100002829 Breather Hose 100004522 Intake Valve 100010181 Valve Cover Gasket 100003238 Piston Ring Set 100004420 Rocker Arm Assembly 100003221 Circlip 100050881 Rocker Arm Base 100003123 Piston Pin 100011260-0005...
- Page 23 Item Stock# Description Item Stock# Description 100011268-0003 Bolt M6×25 100031174-0001 Blower Housing 100007053 Lower Shield 100023743-0001 Recoil Starter Washer φ6 100010040 Oil Sensor 100010894-0001 100011266-0004 Bolt M6×20 100011565-0001 Bolt M6×10 100017644 Oil Seal 25×41.25×6 100011262-0003 Bolt M6×14 100009503 Flywheel 100009166-0001 Engine Switch 100007028 Cooling Fan...
-
Page 24: Warranty
TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
