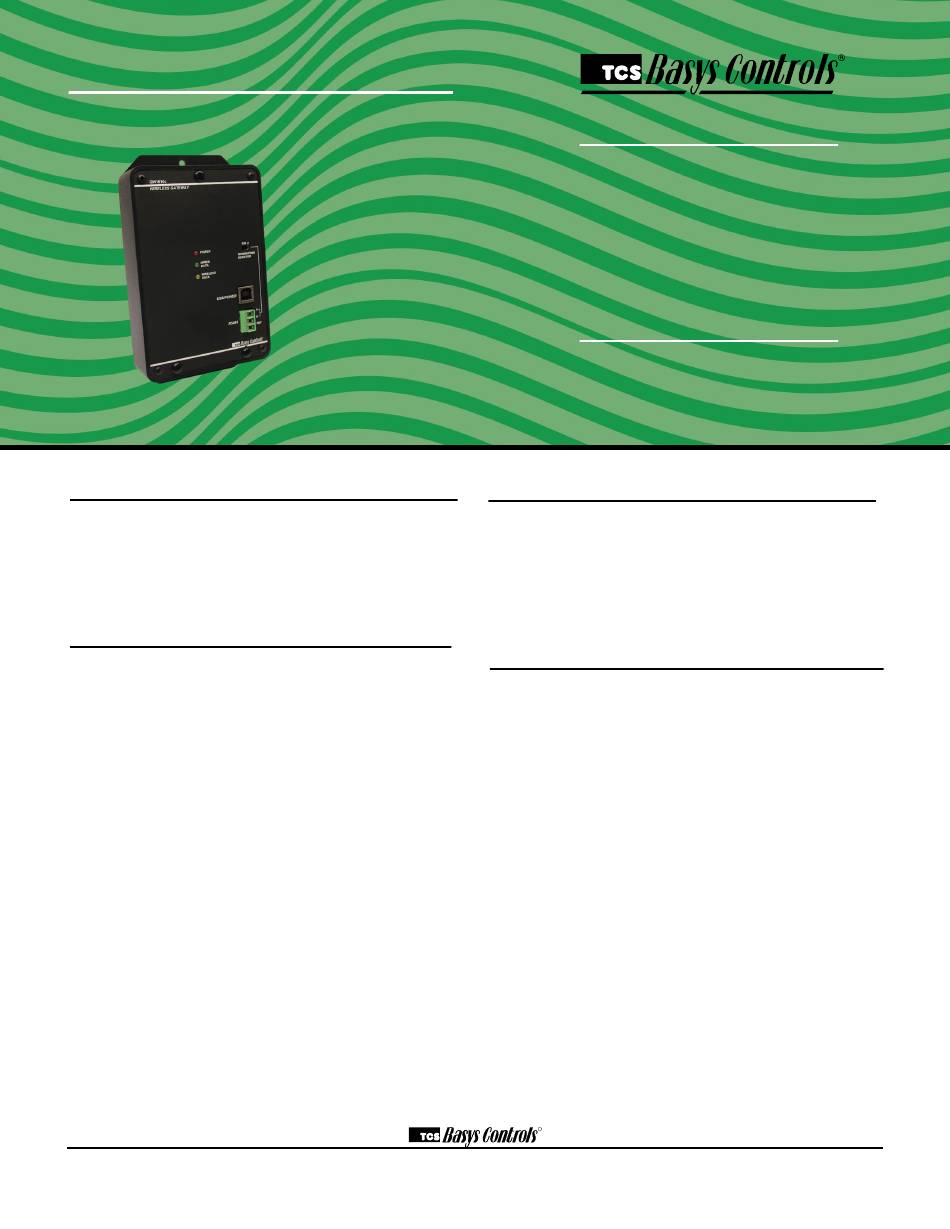

Description
The QW1010c allows monitoring and programming of building
controls over a TCS ZigBee wireless network. This wireless
network replaces the hard-wired RS-485 bus. By eliminating
the need for running communication cables between devices,
the wireless network provides an economical means to easily
expand existing controller networks.
General

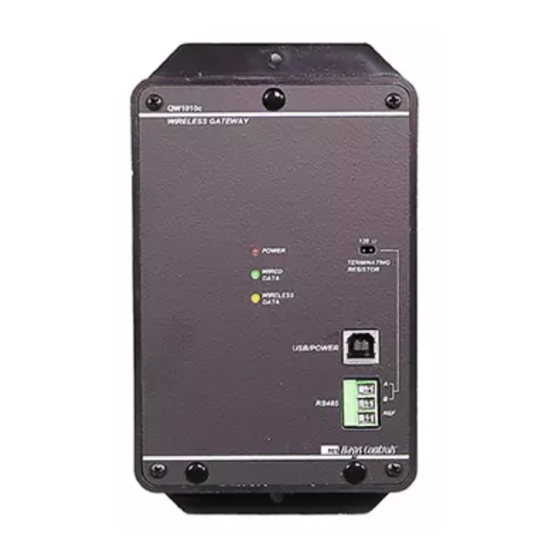

The QW1010c TCS ZigBee Wireless Gateway manages
the TCS ZigBee wireless network. It connects a TCS Basys
Controls TCS ZigBee wireless network directly to a USB
port of a PC or to an RS-485 port of a QD1010. (Only one
QW1010c is needed per TCS ZigBee wireless network.)
NOTE: The QW1010c works with the SZWXXX series ther-
mostats which have built-in TCS ZigBee wireless capabili-
ties.
