Bass Face SUPPORT CREW POWER10.1A Instruction Manual

Replacement integrated 12v power amplifier

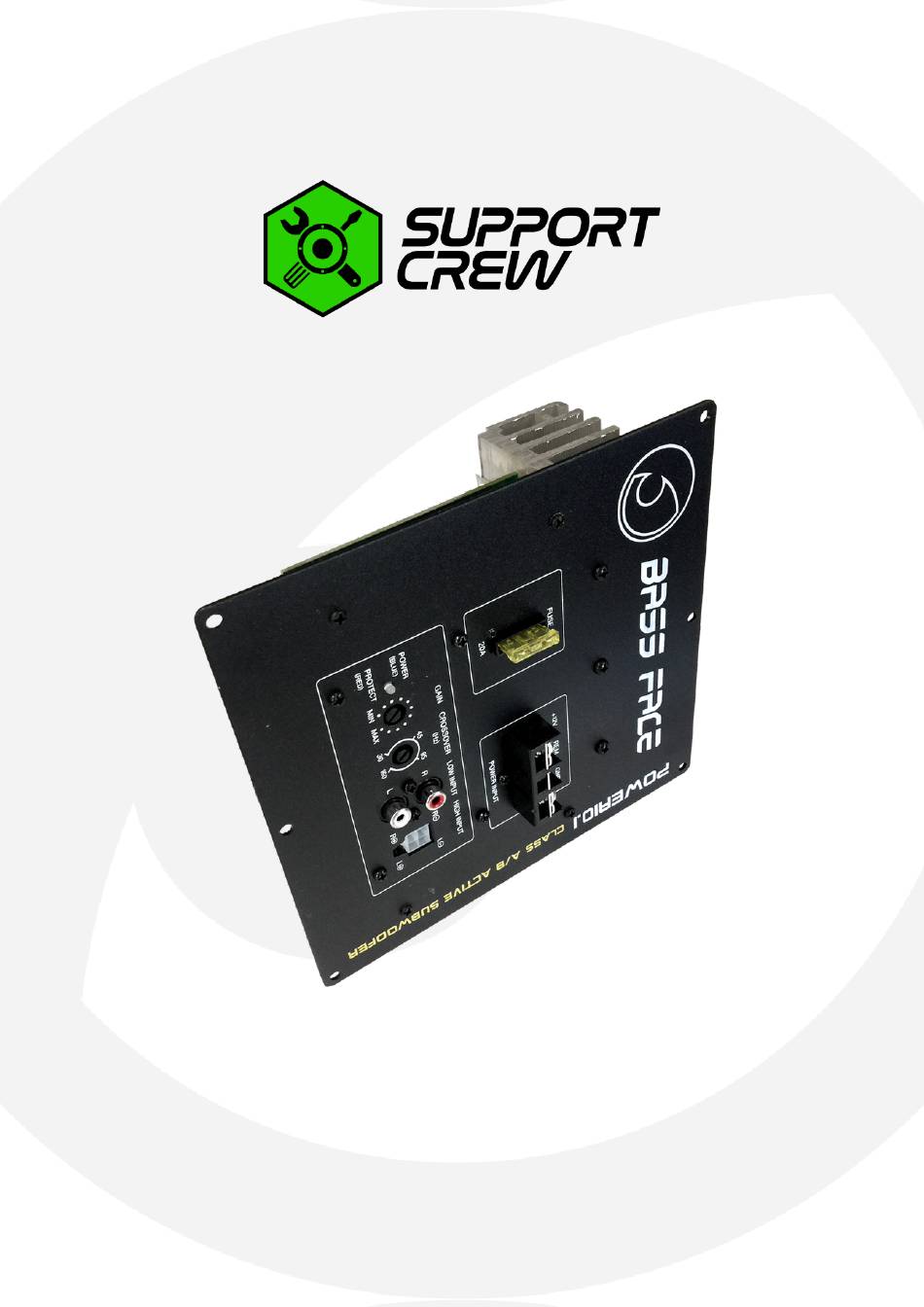

POWER10.1A Replacement Integrated

12v Power Ampliﬁer

Instruction manual

Table of Contents

Need help?

Do you have a question about the SUPPORT CREW POWER10.1A and is the answer not in the manual?

Page 1 POWER10.1A Replacement Integrated 12v Power Ampliﬁer Instruction manual...
Page 2 Thank you for choosing Bassface. From the simplest connector to our top of the range ampliﬁer - every element of these products has been designed to give you the best possible performance for your money. Please take the time to read these instructions carefully as they contain useful and important information.
Page 4 Begin by removing the active bass box from the vehicle and disconnecting the cables. Ensure that the fuses are removed from the feed wires before removing them from their respective terminals.
Page 5 Remove the failed ampliﬁer module from the bass box by removal of the mounting screws...
Page 6 around the perimeter. Withdraw the module from the bass box and cut the speaker feed cable close to the ampliﬁer board. Locate terminals SP(-)1 and SP(+)1 on the replacement ampliﬁer (one terminal is in the centre of the ampliﬁer near the power supply and the other is near the edge of the circuit board).
Page 7 Either ﬁt female crimp terminals to the wires on the bass box or strip back and solder directly to the circuit board. The RED cable is the positive and should be connected to the + terminal. Take particular care if you choose to solder not to overheat the board. If you are unsure about doing this we recommend the use of the simple crimp terminals.
