Summary of Contents for erc The-One Late Model

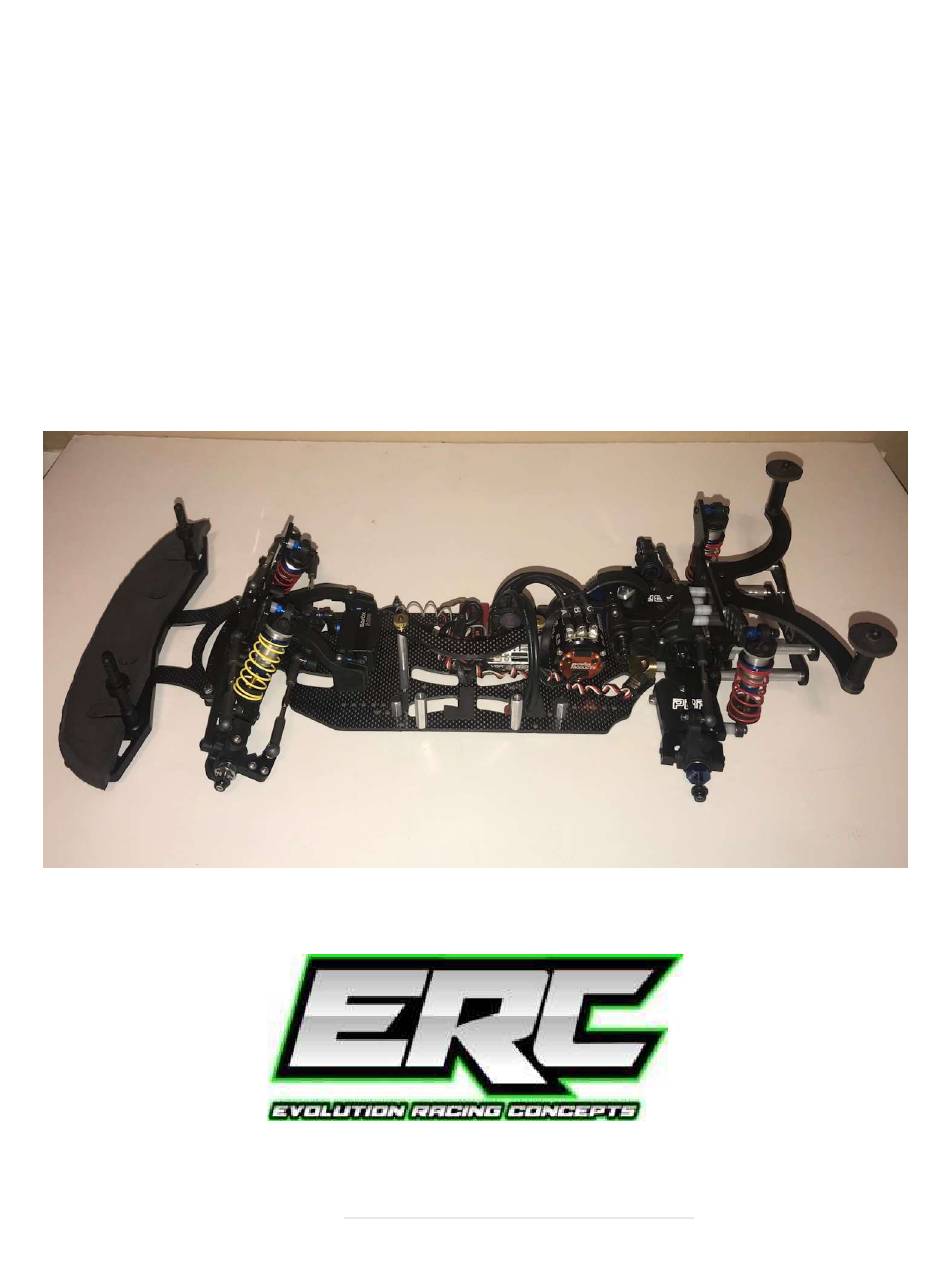

- Page 1 Assembly Instructions ERC The-One Late Model or W E L C O M E T O E V O L U T I O N R A C I N G C O N C E P T S Website:...
- Page 2 ERC Late Model or MWM car named The-One. You will need to purchase the ERC The-One Chassis kit and you will need a Team Associated B6.1 or B6.1D donor car.
- Page 3 Step One First assemble all of the standoffs onto the chassis, if not already done. Standoffs shown in the pictures are standard setup positioning, but can be adjusted to your liking by using the extra battery positioning holes already cut for you. Move the front and back battery standoffs to the back position shown by the yellow arrows in picture below.
- Page 4 Now follow your Team Associated instruction manual on building your front steering rack and front ball stud mount according to the book along with front arms and bulkhead. Next you will need the following ERC parts along with the newly built AE steering rack.
- Page 5 Using 2 – 3x18mm and 2 – 3x16mm flat head screws, attach the ERC Bulkhead and plate to the AE bulkhead and ball stud mount making sure the 30-degree bulkhead option is chosen for the standard setup. Make sure you get these tight without stripping. Then attach front gull wing arms, hinge pins and hinge pin brace before attaching to ERC CF Chassis.
- Page 6 After attaching gull wing arms, hinge pins, and hinge pin brace to bulkhead, attach the whole assembly to the CF chassis as shown below.
- Page 7 Step Three Follow your Team Associated instruction manual on installing your servo and side rails with the following modifications. Cut side rails down using a Dremel and cutting wheel on the silver lines as shown. Right side rail shown in picture below only. Three cuts per side.
- Page 8 When done modifying the side rails, pictured below is what should be left. Dispose of the remaining side rails. They will not be needed. Now assemble servo and side rail parts to the ERC chassis as shown in the AE instruction manual.
- Page 9 Follow your Team Associated instruction manual on installing front top plate, front hubs, and camber links. Then attach the ERC carbon fiber front shock tower to ball stud mount. Standard setup note: Use middle hole on ball stud mount and 1 mm spacer under ball stud. Also, on...
- Page 10 Follow your Team Associated instruction manual to assemble your transmission, CVAs, rear hubs, and castor links. Use the Plan B adjustable rear arms and ERC provided spacers to build rear suspension. Standard setup note: While building your transmission use the diff height insert in the #2 position and in the hub use the 0/3 tab down insert.
- Page 11 Use the zero arm mount inserts in both the C and D plates. Use 2 ERC provided spacers in front of the Plan B arms on the rear hinge pins to assemble the rear arms, rear hubs, and axles to the chassis.
- Page 12 You will need to add spacers to the bottom mounting screw of the rear shocks in order to get the shocks to mount straight up and down. Mount your body of choice, tires and wheels and enjoy the racing your new ERC The-One Late Model or MWM.
- Page 13 Enjoy your New The-One Late Model or MWM!
- Page 14 Website: https://evolutionracingconcepts.com/ Copyright © Evolution Racing Concepts – All Rights Reserved.
