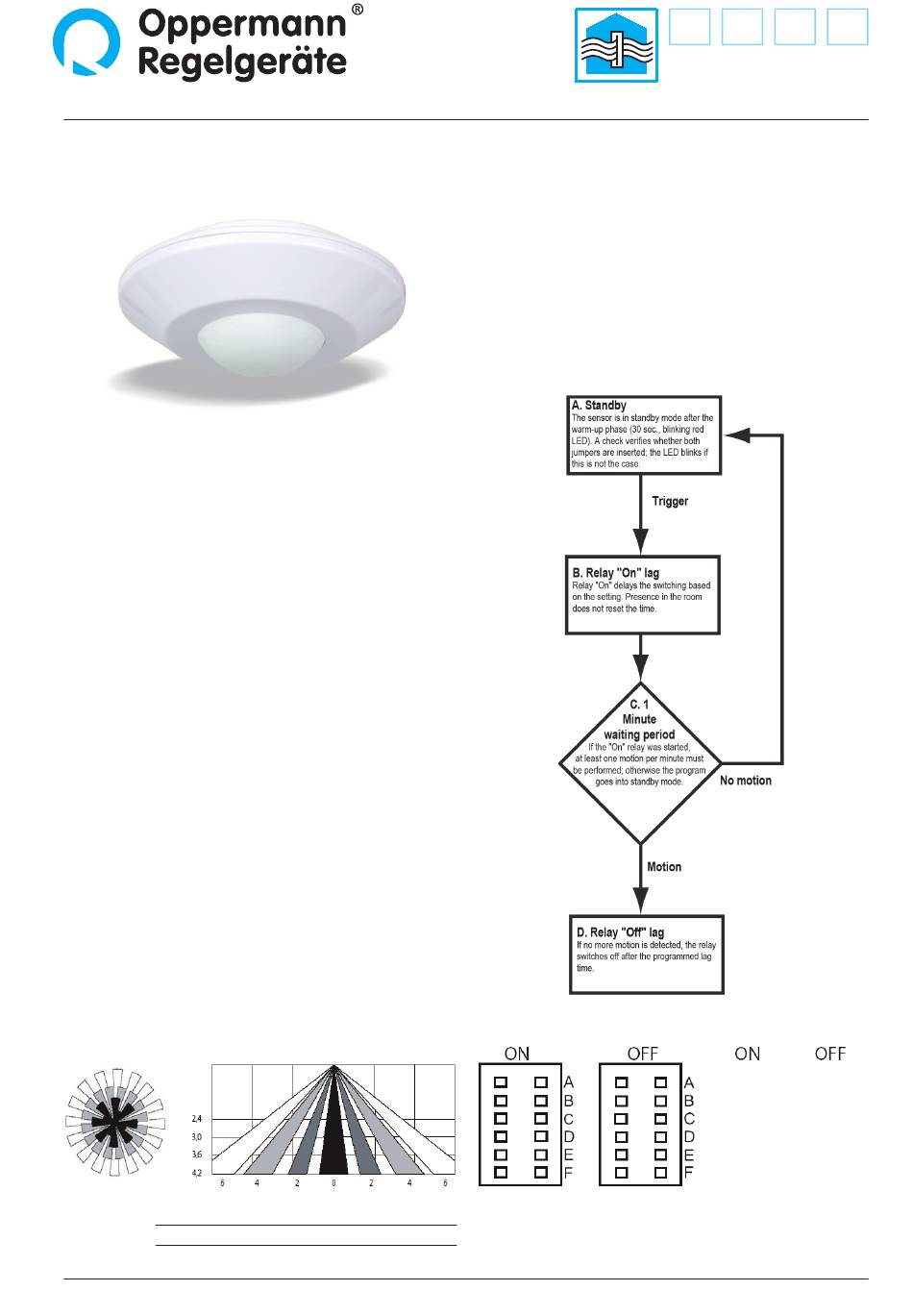

Oppermann Regelgeräte OPP-PIR-2 Manual

Presence detector OPP-PIR-2

Technical Data

Infrared sensor:
Power supply:
Sensor range:
Power consumption:
Response velocity:
Output signal:
Protection type:
Ambient conditions:
Weight:
Dimensions (Ø x H):
Installation height:
Cable bushing:
Color:

Product description

OPP-PIR-2 is a presence detector specifically designed for HVAC
applications in a visually appealing, white housing. The lens has
a detection angle of 360° to reliably detect motion.

Detection range

Front view Side view
Installation height 2.4 m
Sensor range
Omni-directional
24 ± 2 V AC/DC
Height x 2.5 at 25 °C
5 mA
0.1 bis 3 m/s
1 changeover contact,
24 V AC/DC; 0.2 A
IP 41
-20 °C – + 60 °C, max. 95 % RH
85 g
110 x 44 mm
2.4 – 4.2 m
From rear with punch out
for cable IY(ST)Y4x2x0,8
white
3.0 m 3.6 m 4.2 m
6.0 m 7.5 m 9.0 m 10.5 m
Sensor ventilation air conditioning | Data sheet No. 15601 | Version 05-2015 | 1 | 2
•
Ceiling installation 360° range
•
24 V AC/DC connection
•
Shutoff lag: 10s – 30 min, selectable
•
Switch-on lag: 0 – 10 min, selectable
•
Relay output: one changeover contact
Attention
Disconnect the detector from power before repositioning the
jumper!
0 s 10 s
10 s 1 min
30 s 5 min
1 min 10 min
5 min 20 min
10 min 30 min
