Saltillo ChatFusion 10 First Steps

1
Charge the Chat Fusion™ Battery
You received a standard battery charger with your
device. We suggest charging the battery each night.
Plug the charger into an electrical outlet—a surge
protector is recommended. Plug the charger cable
into the charging port on the device.
You also received a charge pad with a power cable.
Device on Charge Pad
Using either charger: When the battery charge is 10% or less, the Chat Fusion's red charging LED flashes. During charging, the red
charging LED is illuminated. When the battery is fully charged, the blue charging LED is illuminated.
2
Call for Training
Call a speech and language pathologist or a Saltillo consultant for detailed training and guidance with your device. For a list of
consultants in your area, go to http://saltillo.com/reps.
3

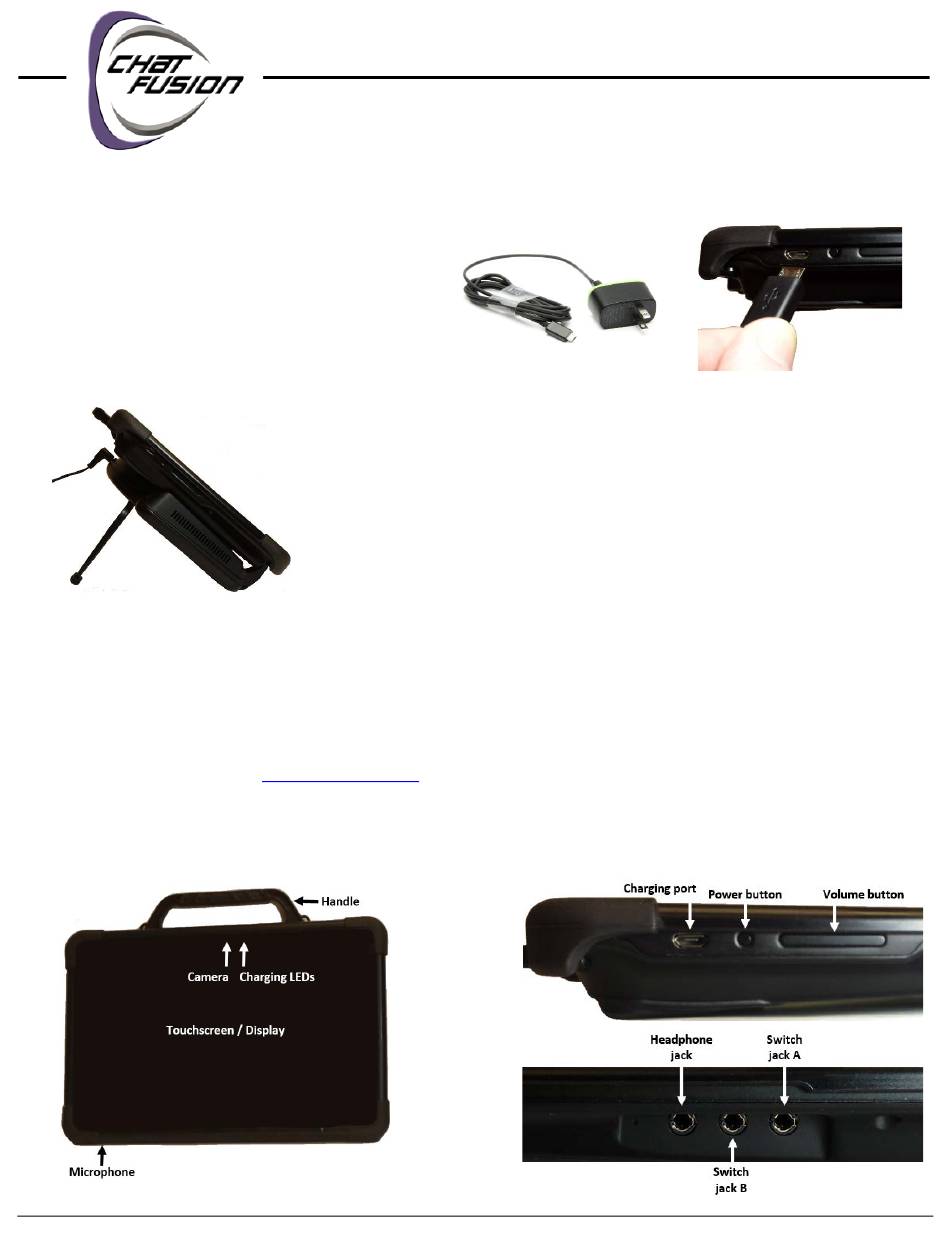

Identify Device Features
For detailed information on using these features, refer to the Chat Fusion User's Guide.
Chat Fusion 10.1: First Steps
Ch at Fu si on 1 0 · 1
F i rst S teps
1. Plug the charge pad's power cable into an electrical outlet—a surge protector is
recommended.
2. Plug the other end of the power cable into the power jack on the top edge of the
charger. The charger's left LED will glow amber.
3. Position the Chat Fusion device's stand against the back of the device.
4. Center the device on the charger with the back of the device against the charger.
5. Charging should begin automatically, and the charger's right LED should glow blue. If
the LED does not glow blue, adjust the position of the device in the charger until the
LED glows blue.
Gen e rati on
s t
Standard charger
Left Side
Right Side
10130v1.3
Charging port
20180202
