SSV MB/941 Hardware Reference Manual

Baseboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

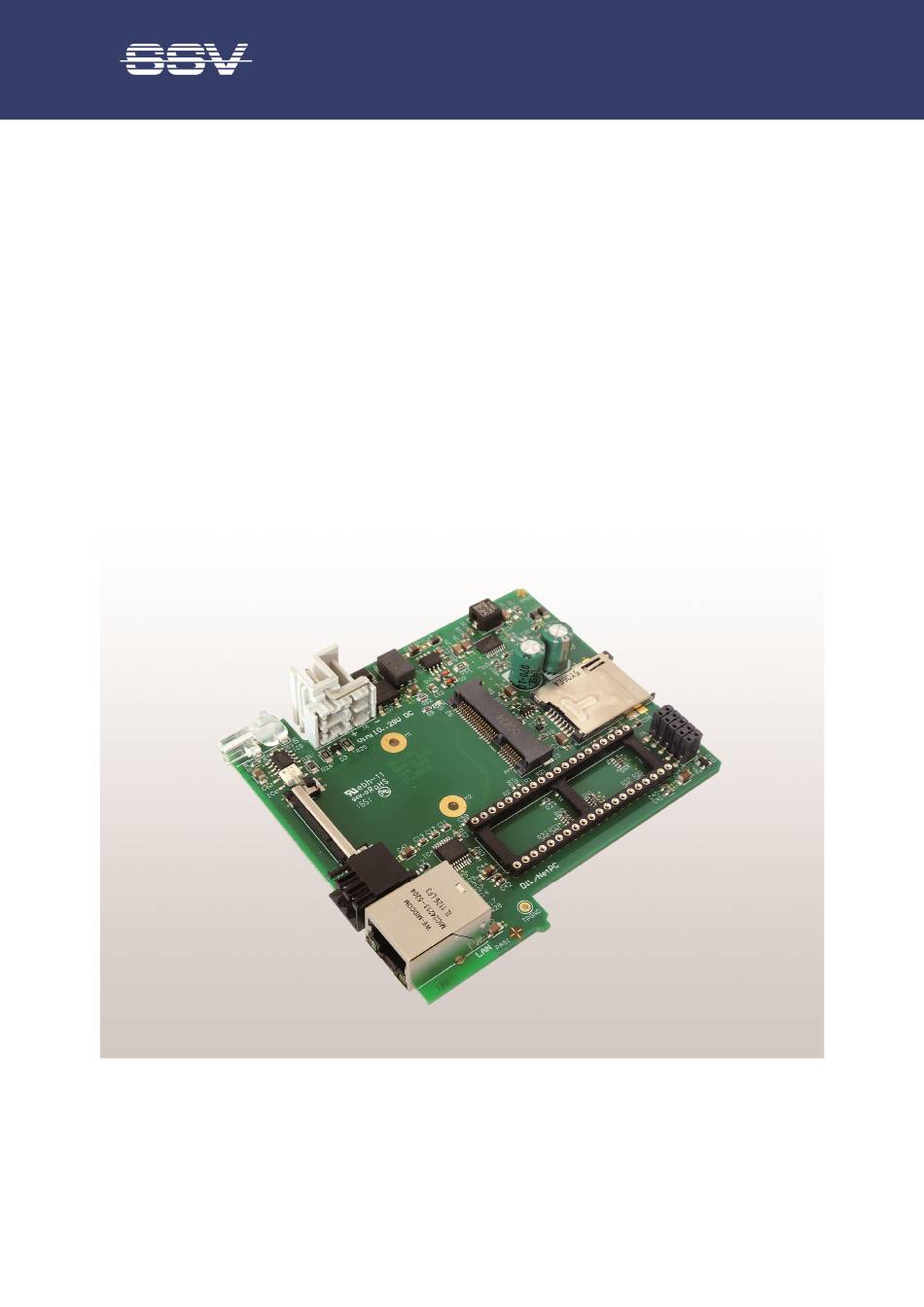

MB/941
Baseboard
Hardware Reference
SSV Software Systems GmbH
Dünenweg 5
D-30419 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
Document Revision: 1.1
E-mail: sales@ssv-embedded.de
Date: 2017-08-24
F
.
-
.
OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW
SSV
EMBEDDED
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB/941 and is the answer not in the manual?

Questions and answers

Related Manuals for SSV MB/941

Summary of Contents for SSV MB/941

  • Page 1 MB/941 Baseboard Hardware Reference SSV Software Systems GmbH Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.1 E-mail: sales@ssv-embedded.de Date: 2017-08-24 OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW EMBEDDED...

  • Page 2: Table Of Contents

    MB/941 – Hardware Reference CONTENT INTRODUCTION ....................... 3 Safety Guidelines ........................3 Conventions .......................... 3 Features and Technical Data ....................4 Block Diagram ........................5 BOARD LAYOUT......................6 PINOUTS .......................... 7 J1: DIL-40 Socket ........................7 J2: Mini-PCIe Connector (Part 1) ................... 8 J2: Mini-PCIe Connector (Part 2) ...................

  • Page 3: Introduction

    MB/941 – Hardware Reference INTRODUCTION This document describes the basic hardware components of the MB/941. Safety Guidelines Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this document and/or by incorrect handling, we do not assume liability.

  • Page 4: Features And Technical Data

    EN 61000 6-2 immunity EMC interference EN 61000 6-4 emission Environmental RoHS, WEEE standards Table 2: Features and technical data of MB/941 D o c u m e n t R e v i s i o n 1 . 1...

  • Page 5: Block Diagram

    MB/941 – Hardware Reference Block Diagram Figure 1: Block diagram of MB/941 D o c u m e n t R e v i s i o n 1 . 1...

  • Page 6: Board Layout

    MB/941 – Hardware Reference BOARD LAYOUT Figure 2: Board layout MB/941 D o c u m e n t R e v i s i o n 1 . 1...

  • Page 7: Pinouts

    MB/941 – Hardware Reference PINOUTS J1: DIL-40 Socket Name Group Function MCI1_CK microSD Card Clock MCI1_CDA PIO microSD Card Command MCI1_DA0 PIO microSD Card Data 0 MCI1_DA1 PIO microSD Card Data 1 MCI1_DA2 PIO microSD Card Data 2 MCI1_DA3 PIO microSD Card Data 3 Reserved.

  • Page 8: J2: Mini-Pcie Connector (Part 1)

    MB/941 – Hardware Reference J2: Mini-PCIe Connector (Part 1) Name Function Reserved. Do not use. PCI_VCC 3.3 Volt Power Reserved. Do not use. Ground Reserved. Do not use. Reserved. Do not use. Reserved. Do not use. SIM_PWR SIM Card Power...

  • Page 9: J2: Mini-Pcie Connector (Part 2)

    MB/941 – Hardware Reference J2: Mini-PCIe Connector (Part 2) Name Function Ground Reserved. Do not use. Ground SMB_CLK PCIe Serial Clock Line (for optional use) Reserved. Do not use. SMB_DAT PCIe Serial Data Line (for optional use) Reserved. Do not use.

  • Page 10: J4: Sim Card Holder

    MB/941 – Hardware Reference J4: SIM Card Holder Name Function SIM_VCC SIM Card Power SIM_RST SIM Card Reset SIM_CLK SIM Card Clock SIM_GND SIM Card Ground SIM_VPP Not connected. SIM_DAT SIM Card Data Table 6: Pinout SIM card holder J5: Serial Port COM1 (RS232/RCM)

  • Page 11: J8: System I/O Connector

    MB/941 – Hardware Reference J8: System I/O Connector Name Function VCC24 24 Volt Power Output VCC24 24 Volt Power Output Ground Ground TXD3 COM3 Serial Port, TXD Pin (RS232) I2C_SCL I2C Interface Serial Clock Line RXD3 COM3 Serial Port, RXD Pin (RS232)

  • Page 12: Mechanical Dimensions

    MB/941 – Hardware Reference MECHANICAL DIMENSIONS All length dimensions have a tolerance of 0.5 mm. Figure 1: Mechanical dimensions of MB/941 D o c u m e n t R e v i s i o n 1 . 1...

  • Page 13: Helpful Literature

    Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2017 SSV SOFTWARE SYSTEMS GmbH. All rights reserved. D o c u m e n t R e v i s i o n 1 . 1...
