Proximity Sensor Kit
KITMPR03xEVM Quick Start Guide
Unpack the board.
STEP
1
Verify package contents
according to the kit Web site:
http://www.freescale.com/
sensortoolbox

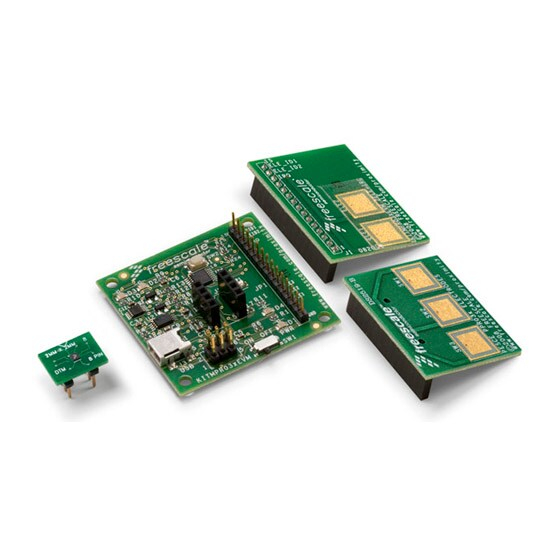

Assemble the hardware by connecting
the development board to the interface
board. Any Sensor Toolbox electrode
boards, including the ones in this kit can
be used with this interface board.
Go to
http://www.
STEP
2
freescale.com/
sensortoolbox
and download
the latest version of software
by clicking the link.
All Sensor Toolbox kits use the same
software and driver, so the install only
needs to be done once. During the install
of the software follow the on screen
instructions to install the communication
driver for the tool. Check back
occasionally for software updates.
Plug in the USB and
STEP
3
turn the board on using
the power switch. Run the
Sensor Toolbox link on your
desktop and enjoy!
For other compatible kits visit
http://www.freesacle.com/sensortoolbox
SENSOR TOOLBOX
