Summary of Contents for AHA Maestro

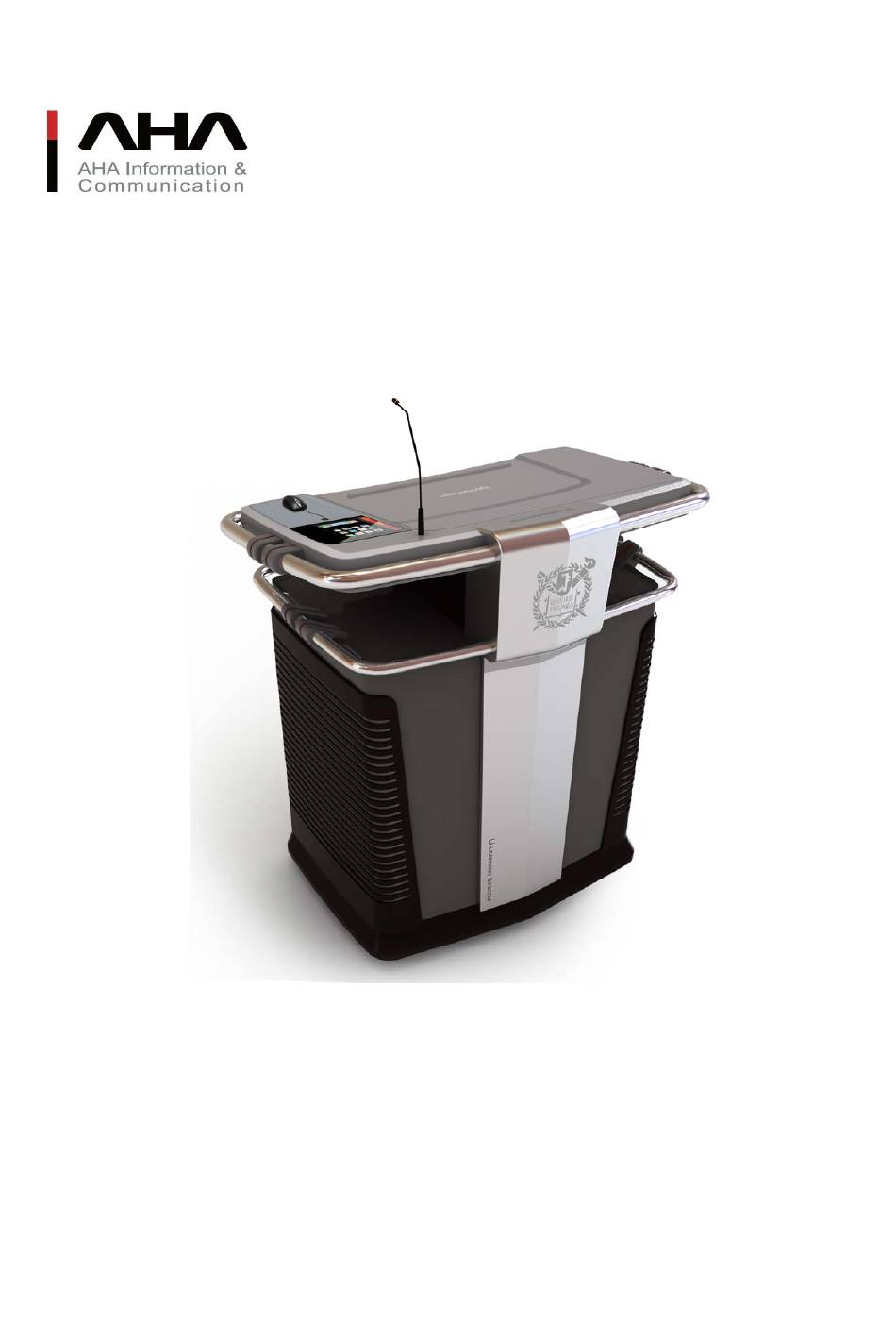

- Page 1 Maestro User Manual AHA I&C CO., LTD www.ahainc.co.kr...
- Page 2 Words of Appreciation Words of Appreciation We, Aha I&C Co., Ltd., are highly appreciating you for purchasing our product. Our product is a big improvement from the existing complicated lecterns and provides various interface with easy application software to enable easy utilization.
-
Page 3: Table Of Contents
Table of Contents Product Overview Name of Each Part Podium Construction Podium Construction System Block Diagram Sysem Cable Spec. Controller (AMC 6000) Amplifier (AMX-3020W) Wireless Microphone System Use Screen and Notebook 10. IR Learning IR Learning 11. Projector Protocol Input 12. -
Page 4: Product Overview
1. Product Overview To make a computer & Internet based lecture in the classroom, devices such as PC, Amplifier, Microphone Speaker system are required Also it is necessary to make complicated device Microphone, Speaker system are required. Also it is necessary to make complicated device settings ,and those equipments need a safe storage to be kept in good order when not in use. -
Page 5: Podium Construction
3. Podium Construction Main Components Main Components LCD Tablet Monitor – 19” or 20” (16:9) Touch Control Panel (7” LCD Type) Wireless Microphone (2Ch 700Mhz) Gooseneck Microphone Notebook Interface Module Controller Main Unit Stereo Amplifier - 8 Input (6Ch Mic. 2Ch AUX), 1 Output Speakers (8 ohm 80W) Cables &... -
Page 6: System Block Diagram
4. System Block Diagram NOTEBOOK Lcd Touch Goosneck Tablet INTERFACE 7” Monitor AC220V PROJECTOR-1 Note Tablet Monitor Touch Mic1 VIDEO-INPUT Notebook PROJECTOR1 RGB-INPUT AMC-6000 NOTE PROJECTOR1 DATA-INPUT MAIN MAIN NOTE IN NOTE IN NOTE OUT PROJECTOR2 RGB-INPUT PROJECTOR2 DATA-INPUT VIDEO-INPUT PROJECTOR-2 AC220V AWM-U82... -
Page 7: Sysem Cable Spec
5. Sysem Cable Spec. DC5V1A_7”TOUCH DC5V1A DC + DC 1.7m DC12V3A MONITOR DC12V3A_MONITOR DC12V3A DC + DC 1.7m DC19V3A_AMC6000MAIN DC19V3A DC + DC 1.7m DC19V3A_UP/DOWN MOTOR DC19V3A DC + DC 1.7m AC220V_PC AC250V5A PLUG + SOCKET 1.5m AC220V_NOTE AC250V5A PLUG + SOCKET 1.5m AC220V_MIC2 AC250V5A PLUG + SOCKET... -
Page 8: Controller (Amc 6000)
6. Controller (AMC 6000) 1) Controller Main Unit 2) Notebook Interface 3) 7” LCD Controller... - Page 9 4) Controller Specification Controller Specification AMC–6000 VGA Input VGA X 3 VGA Output VGA X 2 Signal Type VGA, SVGA, XGA, QXGA Max. Resolution 2048 X 1536 Pixel Frequency 440Mhz Audio Input Audio X 5 Sound Audio Output Audio X 4 Frequency Response 20Hz ~ 20KHz + 1 / -3 dB Video Input...
- Page 10 5) AMC-6000 Controller Back Panel ⓟ ⓟ ⓠ ⓠ ⓡ ⓡ ⓛ ⓛ ⓜ ⓜ ⓝ ⓞ ⓝ ⓞ ⓘ ⓐ ⓑ ⓒ ⓓ ⓔ ⓕ ⓖ ⓗ ⓙ ⓚ ⓐ IR OUT : IR Output port ⓑ PROJECTOR 1 : Connect to Project thru RS-232 ⓒ...
- Page 11 6) Connection Overview AMC – 6000 (Rear panel) ☞ Notebook Interface Rear Panel Rear Panel ☞ Notebook Interface Front Panel...
-
Page 12: Amplifier (Amx-3020W)
7. Amplifier Specification (AMX-3020W) Amplifier Specification AMX-3020W Maximum power ( 1KHz : THD < 1%) 4ohm 200W+200W Total Harmonic distortion 0.1%(1KHz) Intermodulation distortion < 0.08% Cross talk (at 1KHz) < -80dB Microphone Input Sensitivity 1-6CH 15mV at 600ohm Singnal to Noise ratio Mic 1-6 Better than 85dB Auxiliary Input Sensitivity 1-2 200mV at 47k ohm 700mV... -
Page 13: Wireless Microphone System
8. Wireless Microphone System Specification (AWM-U82) Wireless Specification AWM-U82 Frequency ranges Frequency ranges 740MHz ~ 752MHz 740MHz ~ 752MHz Oscillation mode PLL synthesized ±0.005% (-10~50℃) Frequency stability Frequency reponse 40Hz ~ 18KHz THD (1KHz) <0.9% Singnal to Noise ratio 100dB Power consumption 24W at rated power Dimensions (WHD) -
Page 14: Use Screen And Notebook
9. How to use Screen and Notebook A. Electric Screen and Elevatin Up/Down 1) By using AMC - 6000 Touch Control 1) By using AMC - 6000 Touch Control, screen up/down can be easily done. 2) Press down part of the button, to Screen Down 3) Press center part of the button, to Screen Stop 4) Press upper part of the button, to Screen Up * Caution : Screen &... - Page 15 10. IR Learning In order to input IR Learning into Controller, PC RS-233 port and Controller’s control RS-232 port should be connected by direct cable. AMC – 6000L TCP / IP Port < RS-232 Port > ♣ How to input <...
-
Page 16: Projector Protocol Input
11. Projector Protocol Input Connect TCP/IP Port of PC and Controller TCP / IP Port through direct cable Connect TCP/IP Port of PC and Controller TCP / IP Port through direct cable. AMC – 6000 TCP / IP Port <RS-232 Port> ♣... -
Page 17: How To Connect Projector
12. How to connect Projector ♣ 9 PIN D - SUB AMC - 6000 PROJECTOR <RS-232 Port> Caution : When connecting Controller and Projector, 3(RX) port of controller is not used. For most projectors, port No. 2 is RX port. Occasionally, No. -
Page 18: Trouble Shooting
13. Trouble Shooting Problem Check Points Power cord connected ? Podium Power switch is ON ? No Power No Power Monitor power is connected ? Consent switch is ON ? Is the PC select switch on the upper control panel properly selected ? Input device cable is correctly connected ? Input device cable is correctly connected ?
