Hall Research Technologies UH2X-P1 User Manual

Hdmi + usb + lan sender and receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

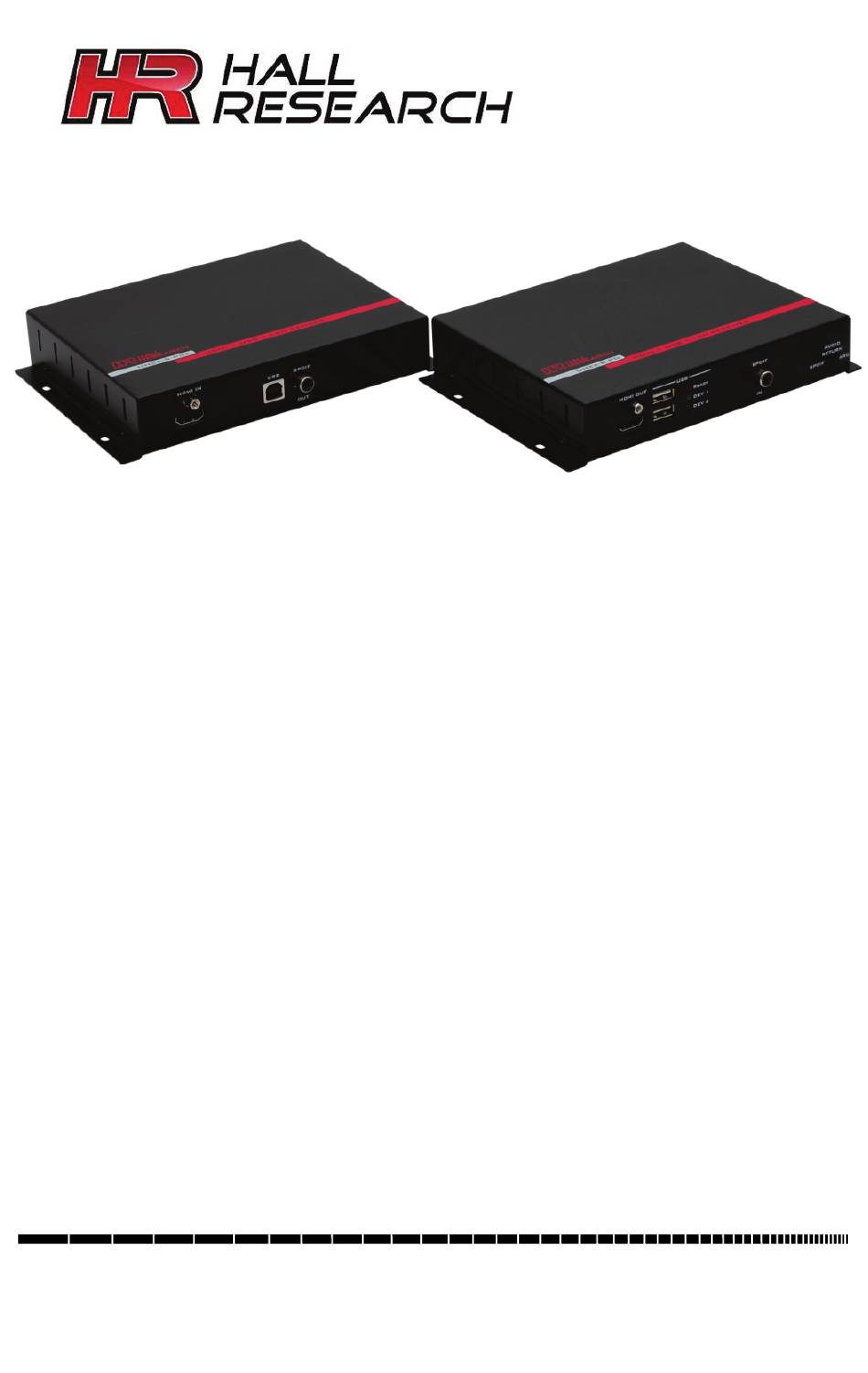

User's Manual
UH2X-P1
HDMI + USB + LAN Sender and Receiver
Extends uncompressed video to 100 meters
Also Extends USB, LAN, RS232 and IR
Sender powers Receiver via UTP using PoH
Supports 4K resolution
UMA1237 Rev n/c
© Copyright 2015. Hall Research, Inc. All rights reserved.
1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH2X-P1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hall Research Technologies UH2X-P1

Summary of Contents for Hall Research Technologies UH2X-P1

  • Page 1 User’s Manual UH2X-P1 HDMI + USB + LAN Sender and Receiver Extends uncompressed video to 100 meters Also Extends USB, LAN, RS232 and IR Sender powers Receiver via UTP using PoH Supports 4K resolution UMA1237 Rev n/c © Copyright 2015. Hall Research, Inc. All rights reserved.

  • Page 2: Table Of Contents

    HDMI + USB + LAN Sender and Receiver 1.0 Introduction Table of Contents 2.0 Features 3.0 Installation 2.1 Package Contents 4.0 Operation 3.1 Configuration 4.1 Transmitter’s Front Panel 4.2 Transmitter’s Rear Panel 4.3 Receiver’s Front Panel 4.4 Receiver’s Rear Panel 4.5 Sender and Receiver Serial Data Connection 4.6 ARC Switch 5.0 Troubleshooting...

  • Page 3: Introduction Table Of Contents

    The UH2X-P1 is an HDMI over single CAT5e/6 Transmitter and Receiver set. The product can extend uncompressed audio/video along with IR, IP, RS232, USB, and power using a single run of CAT5e/6 cable up to 100m long. The UH2X-P1 supports 4K (UHD) and 3D video. The extender boasts audio return extension. The independent audio return source is user selectable.
  • Page 4 HDMI + USB + LAN Sender and Receiver 3.0 Installation The following diagram illustrates a typical setup. Installation diagram showing all possible connections Product footprint and mounting hole positions...

  • Page 5: Operation

    UH2X-P1 3.1 Configuration • Connect the video source to the INPUT connector on the sender. • Connect the display device to the OUTPUT connector on the receiver. • Connect the Power Supply to the power input on the back of the sender.

  • Page 6: Transmitter's Rear Panel

    HDMI + USB + LAN Sender and Receiver DC 48V POWER Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet and the LED will illuminate. 4.2 Transmitter’s Rear Panel HDMI IN Connect this port to the HDMI source equipment such as a DVD or Blu-ray player. Connect this port to a USB Host system such as a PC.

  • Page 7: Receiver's Rear Panel

    UH2X-P1 HDBASET Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate if the link from receiver is steady, when it blinks irregularly it represents that there is a link error and when there is no illumination, it means that there is no link with the receiver.

  • Page 8: Sender And Receiver Serial Data Connection

    HDMI + USB + LAN Sender and Receiver 4.5 Sender and Receiver Serial Data Connection Baud Rate: 300~115200bps 4.6 ARC Switch The user has the option to select the audio from either the Audio Return Channel (ARC) or the Digital audio input that’s in turn available at the SPDIF OUT at the sender.

  • Page 9: Ir Remote Extension

    UH2X-P1 4.7 IR Remote Extension The UH2X-P1 allows connection of an IR detector and an IR emitter cable to each end. This provides the ability to extend IR signals in either direction. For example, when an IR detector is connected to the remote Receiver and IR emitter is connected to the sender, the user from the remote TV end can control the source using an IR remote.
  • Page 10 There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty. 5.1 Contacting Hall Research If you determine that the UH2X-P1 is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 714-641-6607 or support@hallresearch.com.
  • Page 11 UH2X-P1 6.0 Specifications Video Resolution For HDTV signal 480i to 1080p@50/60, 1080p@24, 4K2K per following: 3840x2160@24/25/30, 4096x2160@24, 3840x2160@60 (4:2:0) For DVI signal VGA (640x480) thru WUXGA (1920x1200) Video Bandwidth 340 MHz/10.20 Gbps LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Audio Standards...
  • Page 12 UH2X-P1 © Copyright 2015. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
