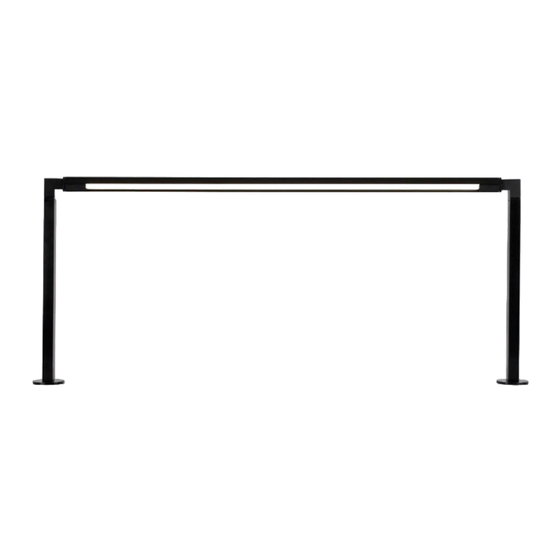

Feelux NDPro Installation

PRODUCT FEATURES
• Alumimum body with rotating top bar
• Easy assembly with NDPro fixture
• Various length available
• Ideal for showcase or exhibition
FEELUX Lighting, Inc., 3000 Northwoods Parkway, Suite 165, Peachtree Corners, GA 30071 | Tel: 678.668.7005 | feeluxlighting.com
If you have any questions, please contact your local Feelux Representative. Specifications subject to change without notice. All Rights Reserved. ⓒ 2018 Feelux Lighting, Inc.
FLX Stix NDPro Fixture Lamp Power
NDP4 40K-24V-C90
NDP7 40K-24V-C90
NDP11 40K-24V-C90
NDP15 40K-24V-C90
NDPro Showcase Arm
DIMENSIONS
0.59" (15mm)
ø1.02"
(26mm)
Luminous Flux
(4000K)
4W 300 lm
7W 570 lm
11W 860 lm
15W 1,210 lm
0.59" (15mm)
A
11.33" (287.7mm)
1.85" (46.9mm)
B
B
A
(Recommended Distance
(Top Length)
for Mounting Holes)
15.6" (396.5mm) 15" (381mm)
26.6" (676.5mm) 26" (661mm)
37.6" (955.5mm) 37" (940mm)
48.6" (1234.5mm) 48" (1219mm)
Rotate
NDPro Showcase of 3 1
8/2018
