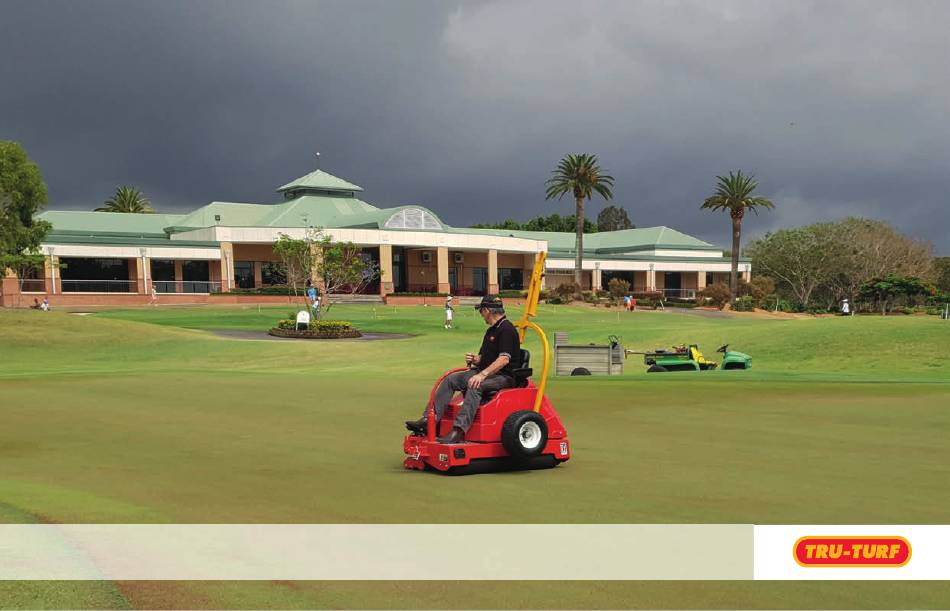

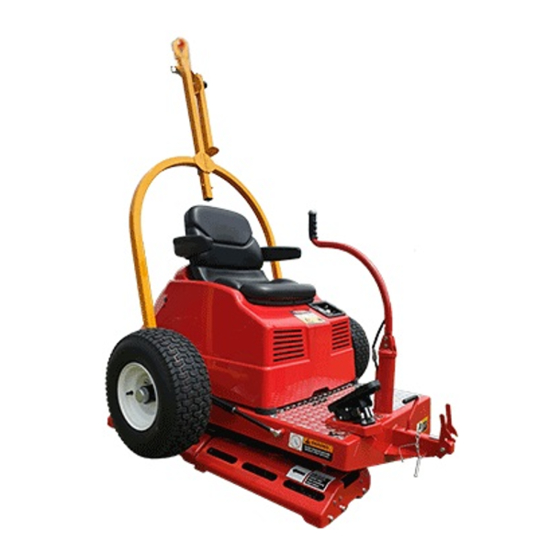

- Page 1 OWNERS MANUAL RE50 GOLF GREENS ROLLER Results through design; not weight. RE50 Owners Manual www.truturf.com...
-
Page 2: Table Of Contents
Maintenance Schedule ..........16 Maintenance ..............17 Safety & Instructional Decals ........20 Separate Engine Owners Manual can be Operating Positions .............24 downloaded from www.truturf.com Assemby Cover .............25 Deck & Body Assembly ..........26 Drive Train ..............27 Transmission ..............28 Smoothing Heads ............32 RE50 Owners Manual www.truturf.com... -
Page 3: Machine Information Record
Green Roller and your move to smoother, faster, Distributor Information more consistent putting Greens. Name: Address: The following operation and maintenance manual has been prepared for use with the RE50 Golf Green Telephone: Roller. Fax: Email: It is intended as a guide and supplemental updates to the manual may take place at a future date, without prior notice. -
Page 4: Specifi Cations
Integrated, extra heavy duty, folds from rolling position to transport position Ground Pressure 3.8 psi (26 kPa) (Footprint) Smoothing Heads 2 overlapping, fi tted with tri-rollers in each head, no gap between heads Rolling Width (Swath) 50” (1270mm) RE50 Owners Manual www.truturf.com... -
Page 5: Safety Information
To ensure safe operation of the RE50 Golf Greens Roller, please follow the following safety guidelines. • When transporting the roller or carrying out main- tenance, make sure the trailer lock down mech- •... - Page 6 Always stop engine before opening safety cover. • Never ride on the machine when machine is being towed. Operator: remember it is your responsibility to be aware of your surroundings. To avoid accidents, think safe and operate safe. RE50 Owners Manual www.truturf.com...
-
Page 7: Warranty
Warranty Conditions and Products Covered Tru-Turf Service Department Tru-Turf warrant your Tru-Turf Roller to be free from Tru-Turf Pty Ltd defects in materials or workmanship for two years 6/8 Technology Drive or 1550 operational hours*, whichever occurs fi rst. Arundel, Qld 4214 This warranty is applicable to all products. - Page 8 Tru-Turf. Tru- • Normal noise, vibration, wear and tear, and Turf will make the fi nal decision whether to repair deterioration. any existing part or assembly or replace it. Tru-Turf may use remanufactured parts for warranty repairs. RE50 Owners Manual www.truturf.com...
- Page 9 Note Regarding Deep Cycle Battery Warranty: consequential damages in connection with the use Deep cycle batteries have a specifi ed total number of the Tru-Turf Products covered by this warranty, of kilowatt-hours they can deliver during their including any cost or expense of providing substitute lifetime.
-
Page 10: Assembly
Tires mounted on Wheel Rim Steering Joystick Dampener Strut (attached to main body end) Left-side Trailer Arm Right-side Trailer Arm 30mm External Circlips Drawbar Coupling Assembly 3/8” x 11/2” UNF 2P Bolts 3/8” UNF Nyloc Nuts RE50 Owners Manual www.truturf.com... - Page 11 • Apply thread lock “Loctite” to the M10 bolt attached to the dampener strut. Screw the M10 bolt into the strut support on the trailer arm. RE50 Owners Manual www.truturf.com...
- Page 12 • Locate the two wheels for the left and right side to lower to the surface gently. trailer arms. • Check tires for the correct air pressure, approximately 18-24psi. Do not exceed this RE50 Owners Manual www.truturf.com...
- Page 13 The trailer arms will remain in this position whilst rolling the greens. Step 8: Lubricate smoothing head pivot bearings. • There is a grease nipple or zirk located on both smoothing head centre ball joint swivels. Apply grease to lubricate fi ttings. RE50 Owners Manual www.truturf.com...
-
Page 14: Pre-Operation Checklist
Grease lightly bearings fi tted to drive roller, spiker shaft (if fi tted) and Smoothing Head pivot bearings. Replace plastic caps if missing. Oil rod ends, sparingly. Check tire pressure for proper operating pressure (18-24psi). Do not over infl ate. RE50 Owners Manual www.truturf.com... -
Page 15: Standard Operation Procedures
To stop take your foot off the foot pedal the green. and the machine will automatically brake itself to a stop Greens can be rolled in any direction; take care to ensure there are no crease lines produced on the surface. RE50 Owners Manual www.truturf.com... - Page 16 RE50 Owners Manual www.truturf.com...
-
Page 17: Points To Remember
• Roll in straight lines. • Move off the green when rolling is complete before putting the trailer in the down position. RE50 Owners Manual www.truturf.com... -
Page 18: Maintenance Schedule
Ongoing Maintenance, Lubricant and Replacement Schedule (See chart). Note. Areas indicated with a * need to be changed when defective or as required. This may be before the recommended replacement schedule. Please replace all parts as necessary. RE50 Owners Manual www.truturf.com... -
Page 19: Maintenance
• It is important to store this roller in the towing position. This ensures the trailer strut is in the closed position, protecting the shaft from Sling here corrosion, then failure and also the weight is taken (around pivot axle) off the roller and bearings. RE50 Owners Manual www.truturf.com... - Page 20 fi tted to to each other when in the straight ahead each smoothing roller by rotating the rollers by position. Adjust if necessary. RE50 Owners Manual www.truturf.com...
-
Page 21: Safety & Instructional Decals
Replace any decal that is damaged or missing. R6057 - Tru-Turf Logo Decal RS2028 - Machine ID Plate. (Note: This is not a spare part and will come attached from manufacturer). - Page 22 Safety and Instructional Decals RS2029 - RE50 Model Decal R8452- Strut Warning R6086 - Chain/Belt Warning R6087- Caution Pinch Point RS2108 - L.E.D. Lights RE50 Owners Manual www.truturf.com...
- Page 23 Safety and Instructional Decals R6088 - Important Traction R9083 - Slicer width R6059 - PGA Decal RE50 Owners Manual www.truturf.com...
- Page 24 Decal Locations RE50 Owners Manual www.truturf.com...
-
Page 25: Operating Positions
Operating Positions Towing position Rolling position RE50 Owners Manual www.truturf.com... -
Page 26: Assemby Cover
RE5011 ASSEMBLY SWITCH CONTROLLER BOX RE5013 COVER, ELECTRIC, PLASTIC, ASSEMBLY RS2121 HINGE LOWER ASSY PLASTIC COVER RS2185 PLATE, BASE REIO, COVER, SEAT PART NUMBER: RER5018-0007 REVISION: F DATE: 02/10/2020 BY: G.D.N. PART NUMBER: RER5018-0007 REVISION: F RE50 Owners Manual www.truturf.com... -
Page 27: Deck & Body Assembly
PLATE, CHECKER, FOOT PAD RS2117 CATCH, WIDE, FOLDED, TRAILER DRAWBAR RS2183 MUD FLAP RS2184 STRAP, MUDFLAP, SCREW ON RS2210 PLATE, SERIAL NUMBER, RE50 PART NUMBER: RER5018-0002 REVISION: E DATE: 01/09/2020 BY: SP PART NUMBER: RER5018-000 REVISION: E RE50 Owners Manual... -
Page 28: Drive Train
MACHINE SCREW, TORX PAN HD - M6x8x0.75 CHARGER, BATTERY, INDUSTRIAL, 48VDC, DELTA-Q IC1200 TRANSMISSION ASSY - BELT DRIVE PART NUMBER: RER5018-0003 TENSIONER - BELT DRIVE REVISION: F PART NUMBER: RER5018-0003 REVISION: F DATE: 15/08/2019 BY: G.D.N. RE50 Owners Manual www.truturf.com... - Page 29 SET SCREW, GRUB, HEX SOC, FLAT POINT - 3/8" UNC x 5/8" LG DRIVE BELT - GATES POLYCHAIN CARBON 8MGT-960-36 SPROCKET PLATE, GEARBOX MOUNTING PART NUMBER: RER5018-0016 REVISION: A DATE: BY: G.D.N. PART NUMBER: RER5018-0016 REVISION: A RE50 Owners Manual www.truturf.com...
- Page 30 NUT, HEX, ZP - 1/4" UNC R8837 NUT WING HEAD SS - 5/16" UNF RUBBER BATTERY MAT RS2313 ROD, THREADED 5/16"-24 UNF, BATTERY HOLDER RS2327 WELDMENT, LEAD ACID BATTERY HOLDER FRAME PART NUMBER: RER5018-0009 REVISION: C DATE: BY: G.D.N. RE50 Owners Manual www.truturf.com...
- Page 31 Pulley Allignment Straight Edges 1 & 2 Parallel 3 Should be within 1/2° 4 Idler pulley should be parallel to drive roller/axle. Gearbox Adjuster Roller RE50 Owners Manual www.truturf.com...
- Page 32 NUT, NYLOC, THIN, 1/4" UNF R9421 ASSEMBLY, BEARING HOUSING, NODULE WELDMENT, HOUSING, FRONT SMOOTHING HEAD RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2055 ASSEMBLY, NODULE SWEEPER PART NUMBER: R REVISION: E DATE: 10/06/2020 BY: SP PART NUMBER: RER501 REVISION: E RE50 Owners Manual www.truturf.com...
- Page 33 R8836 NUT, NYLOC, THIN, 1/4" UNF R9421 ASSEMBLY, BEARING HOUSING, NODULE WELDMENT, HOUSING, REAR SMOOTHING HEAD RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY PART NUMBER: R REVISION: E DATE: 10/06/2020 BY: SP PART NUMBER: RER5018-0022 REVISION: E RE50 Owners Manual www.truturf.com...
- Page 34 MOUNT, 2 x 1/2 UNF - SMOOTHING HEAD MOUNT 25mm SPIGOT - SMOOTHING HEAD RCC0018-0323 WASHER - OD 38, ID 10, THK 3 PIVOT BEAM PART NUMBER: R REVISION: C DATE: 10/06/2020 BY: SP PART NUMBER REVISION: C RE50 Owners Manual www.truturf.com...
- Page 35 R8284 NUT, HEX, ZP - 1/2" UNF REVISION: B R8287 LINK, ROD END - 3/8" UNF x 137 CRS DATE: 12/06/2020 BY: KAH RS2324 ROD, THREADED - 1/2" UNF RS2325 TUBE, TIE ROD, STEER SMOOTHING HEADS RE50 Owners Manual www.truturf.com...
- Page 36 ASSEMBLY,FRONT SMOOTHING HEAD RS2039 ASSEMBY, STEERING CONNECTING ROD RS2182 SPACER, STEERING, HEAD & ARM RS2285 ASSEMBLY, STABILISER ROD RS2326 ASSEMBLY, CONNECTING ROD PART NUMBER: RER5018-0005 REVISION: D DATE: 01/09/2020 BY: SP PART NUMBER: RER5018-0005 REVISION: D RE50 Owners Manual www.truturf.com...
- Page 37 E7175 WELDMENT, RUBBER DRIVE ROLLER HALF R8051 WASHER, SPRING, ZP - 5/16" R8064 BOLT, HEX, ZP - 5/16" UNF x 1" LG PART NUMBER: E7034 REVISION: N DATE: 10/06/2020 BY: SP PART NUMBER: E7034 REVISION: N RE50 Owners Manual www.truturf.com...
- Page 38 BOLT, HEX, ZP - 3/8" UNF x 2" LG R8208 SCREW, GRUB, CUP POINT - M8 x 16 R9112 KEY, STEEL, 8x8x47 PART NUMBER: E7285 REVISION: B DATE: 01/09/2020 BY: SP PART NUMBER: E7285 REVISION: B RE50 Owners Manual www.truturf.com...
- Page 39 WASHER, FLAT, ZP - M12 x 24 OD x 1.6 THK. R8461 RUBBER ROLLER SWEEPER - 12 NODULES x 30 deg. RS2056 SHAFT, LONG, RUBBER ROLLER SWEEPER PART NUMBER: RS2055 REVISION: F DATE: 10/06/2020 BY: SP RE50 Owners Manual www.truturf.com...
- Page 40 R8167 WASHER, FLAT, ZP - M12 x 24 OD x 1.6 THK. R8461 RUBBER ROLLER SWEEPER - 12 NODULES x 30 deg. R8509 SHAFT, RUBBER ROLLER SWEEPER PART NUMBER: R8468 REVISION: E DATE: 10/06/2020 BY: SP RE50 Owners Manual www.truturf.com...
-
Page 41: Trailer Frame
MUST BE CORRECTLY TIGHTENED TO 47 ft-lbs OR 63.7 Nm. IF NOT THE DRAWBAR CAN BECOME LOOSE AND THE HOLES WILL WEAR PART NUMBER: RS2043 REVISION: D MAKING IT DANGEROUS WHEN TOWING OR RAISING / LOWERING THE TRAILER. RE50 Owners Manual www.truturf.com... - Page 42 Trailer Hub RE50 Owners Manual www.truturf.com...
-
Page 43: Seat
Seat FITTING INSTRUCTIONS RE50 Owners Manual www.truturf.com... - Page 44 Options - H Frame RE50 Owners Manual www.truturf.com...
-
Page 45: Options
Options RE50 Owners Manual www.truturf.com... - Page 46 Options - Slicer RE50 Owners Manual www.truturf.com...
- Page 47 Options - Brush RE50 Owners Manual www.truturf.com...
- Page 48 Options - Brush Insert Installation RE50 Owners Manual www.truturf.com...
- Page 49 Options - Spiker RE50 Owners Manual www.truturf.com...
- Page 50 Options - Spiker RE50 Owners Manual www.truturf.com...
- Page 51 3 x 48V @ 30 AH each = 90 AH Connected in parallel Can be increased to 4 x 48V @ 30 AH = 120 AH if additional capacity is req. KEY ON-CURRENT DRAW 0.125 A FULLY CHARGED 90 AH RE50 Owners Manual www.truturf.com...
-
Page 52: Harness Loom
RE50 Owners Manual www.truturf.com...
